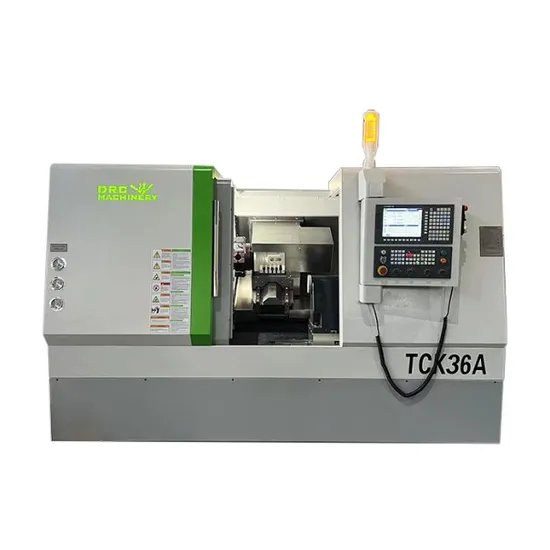

Cnc Lathe Slant Bed Cnc Lathe Machine Tck36a China Supplier Manufacturer Slant Bed Lathe Cnc Machine
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
Optional Accessories: Main Motor: Servo5.5/7.5KW , Inverter 7.5KW Turret: 4 station electric turret ,6 station electric turret Chuck:6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan) 8″through hole hydraulic chuck(Taiwan) Chip conveyor Steady Rest Other optional item: Driving tool turret, automatic feeding device and manipulator.
Model
| TCK 50A (GSK 980TC3 system)
|
Standard accessories
| Unit ( mm )
|
Maximum turning diameter of bed
| Φ560
|
Maximum turning diameter of cross slide
| Φ260
|
Maximum processing length
| 350
|
Maximum machining diameter (disk type)
| Φ400
|
Standard chuck specifications
| 10 inch Bedford/Taiwan
|
Hydraulic knife tower
| 8 station(Optional)12
|
X axis maximum stroke
| 240
|
Z axis maximum stroke
| 400
|
Spindle speed
| 3000rpm
|
Spindle speed stage
| stepless
|
Spindle end code
| A2-6
|
Spindle through hole
| Φ66
|
Pull tube through hole
| Φ55
|
Maximum diameter of boring tool
| Φ40
|
Cutting feed rate
| 1-15000mm/min
|
X/Z motor torque
| 7.5/7.5/NM(X direction with brake)
|
X/Z axis rapid movement rate
| 18/18m/min
|
Tool body size of turning tool
| 25*25
|
Spindle motor power
| 7.5KW
|
Turret center high dimensions
| 100
|
Sleeve diameter
| 70
|
Sleeve stroke
| 80
|
Spindle unit
| Φ200
|
Screw bearing
| 35/35/PMI/HIWIN/Taiwan
|
X/Z Ball Screw
| 7206B/DB/P5/PMI/HIWIN/NSK
|
The X/Z axis screw specifications
| 3210/4010
|
Taper hole of tailstock sleeve
| MT5#
|
Maximum stroke of tailstock
| 200
|
Dimensions (length × width × height)
| 2500*1700*1890
|
Total Weight
| 2800KG
|
Main accuracy index of machine tool
|
|
Test items
| Standard tolerance(mm)
|
Periodic axial movement of the spindle
| 0.005
|
Radial runout of the positioning cone of the
| 0.005
|
Position
| X:±0.003 Z:±0.003
|
Repeat positioning accuracy A
| X:±0.003 Z:±0.003
|
Diameter consistency
| 0.01/150
|
Flatness
| 0.02/φ200
|
Thread pitch product error
| 0.010/50
|
Surface roughness
| Ra1.6μm
|
