2025 Hot Sale! ! Nc Servo Feeder Rolling Feeder Coil Feeder for Punching Press Production Line

Product Description

Our Advantages
About this product
1. It uses Japanese Yaskawa (Mitsubishi) servo motor, Mitsubishi PLC and touch control panel for control, with long service life, high precision, simple and fast operation, effectively shortening work preparation time and improving productivity.
2. The feeding roller is made of bearing steel (domestic manufacturers mostly use 45# steel). After high frequency, quenching and hard chrome plating, the surface hardness can reach HRC60-62ºC.
3. The control box and the machine body are separated to prevent vibration from damaging the electrical components, and it is easy to move.
4. The touch screen and button dual control mode can realize multi-function operation. The button adopts advanced technology LED button indicator, and the button life is up to 3 million times.
5. High-precision feeding size: It has high feeding accuracy to meet the increasingly high processing requirements.
6. Flexible and convenient feeding length setting: The setting of feeding length does not require adjusting any mechanical mechanism. Just enter the length size on the touch display control screen, and there is a function to set the number of segment lengths.
7. Programming induction feeding, connected to the punch cam, arbitrarily adjust the feeding and relaxation time.
8. Manual/automatic control of feeding, which can be advanced and retreated inch by inch when manual, convenient for adjusting the feeding test mold (automatic and inch speeds are adjustable in the interface
Product Description

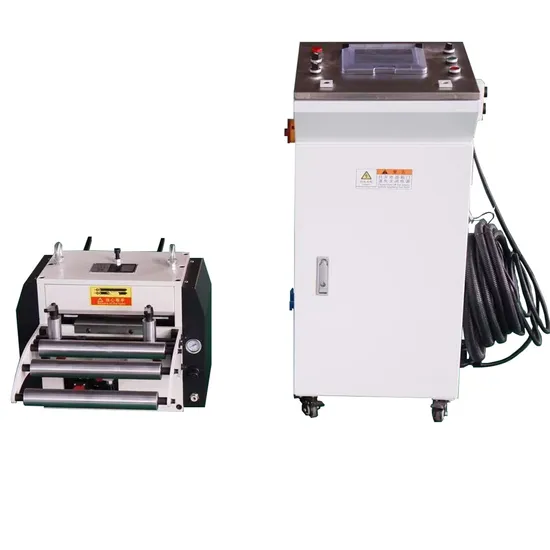

High-quality NC servo feeder (Feeding part and electric control box)
Product Parameters

Model	LJA NCF-200	LJA NCF-300	LJA NCF-400	LJA NCF-500	LJA NCF-600
Material width	200mm	300mm	400mm	500mm	600mm
Material thickness	0.1-4.5mm	0.1-4.5mm	0.1-4.5mm	0.1-4.5mm	0.1-4.5mm
Feeding length	0-9999.99m
Feeding speed	16m/min	16m/min	16m/min	16m/min	16m/min
Relaxation method	Pneumatic release (standard)/mechanical release (optional)
Feeding Direction	Left→Right
Mechanical weight	100kg	120kg	150kg	180kg	210kg

Hot Products
Company Profile
* About Anhui LJA Metal Tech Co., Ltd
We are a leading manufacturer specializing in metal processing machinery, committed to providing high-quality and innovative solutions for industries worldwide. With decades of experience in the industry, we have grown from a small workshop to an internationally recognized manufacturer with a global customer base. Over the years, we have built a reputation for excellence in designing and producing a wide range of advanced machines, including decoiler machines, pipe punching machines, plasma cutting machines, pipe forming machines, metal polishing machines, and pipe bending machines. These products are engineered with precision, offering superior performance and durability to meet the ever-evolving demands of diverse industries.
>>> After-sale Service
1. Global Installation & Commissioning
• On-site service by certified engineers within 5 working days (remote areas negotiable).
• Pre-installation video guidance & post-installation inspection report.
2. Multilingual Training
• Basic: 2-hour live demo (on-site/online) + multilingual operation videos/manuals.
• Advanced: Customized sessions for technical teams (PLC programming/data analysis).
3. 24/7 Support
• 3-tier response:
Critical failure: 15-min remote diagnosis + spare parts priority shipping
General issues: 30-min video call troubleshooting
Inquiries: 1-hour email reply
4. Global Spare Parts
• 2 years for main motor.
• Except for consumables and consumables, other parts are for 1 year. Extended service is always available. Free repair and replacement of parts within warranty. Only replacement of parts, shipping costs are borne by the customer..
Value-Added Options
▸ Annual Maintenance Contract (AMC): 20% discount on parts + bi-annual preventive checks
▸ Extended Warranty: Up to 5 years coverage

Certifications
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: If we are interested in your machine, how do we choose?
1. What main job you do with the machine?
2. What is your request? diameter__mm, thickness__mm, length__mm?
3. What material you want to process, stainless steel, carbon steel?

Q: How about warranty?
A: 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
Q: Can you customize?
A: Yes, non-standard machines can be customized according to your products

---
