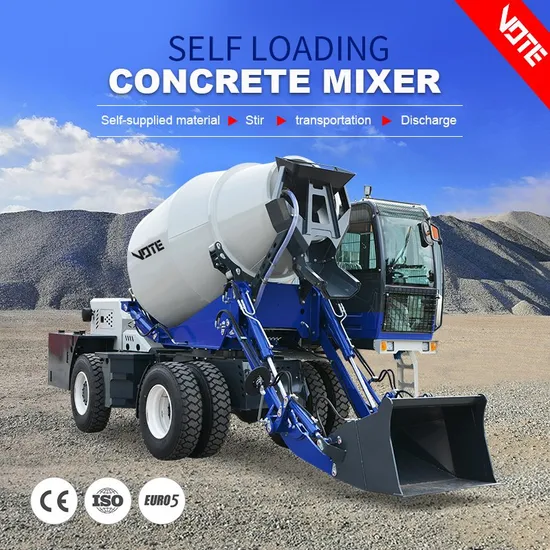

Vtcm-2600 Mixer Truck Mini Mobile Self Loading Concrete Mixer Truck Cement Mixer Pump Portable Drum Buy Diesel Self Loading Concrete Mixers Prices for Sale

Product Description

Hot Selling Self Loading Concrete Mixer Support Factory Customization
This page shows the prepaid price, we support 35% prepayment, the rest can be settled upon delivery, please contact us online for details.
1-Year Machine Warranty Service Has Been Opened!
Click The Inquiry Below To Get The Best Price!
1. VOTE VCM Series Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader.
2. The hub reducer driving axle and full hydraulic transmission case make the mixer truck travel well on kinds of complex off road.
3. VM Self Loading Concrete Mixer Truck is equipped with driving camera, automatic water feeding & metering system, electronic water suction pump, etc.
4. Mixer drum can be lifted up 20° to make concrete discharge easier.
5. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.
6. The external water pump is equipped with change-over switch of water suction so that water can be into water tank and mixer drum respectively.
7. The discharge chute can be tilted and rotate 90°. It is also removable so that concrete is to anywhere directly. Two sets of chute extenders are provided as standard. More detailed parameters are for reference only Product Parameters

VTCM-1500 Basic Parameter
ENGINE
Brand				YUNNEI
Model				490
Type				In-line, 4-Cylinder, Turbo Charged and Water Cooled
Rated power				55 KW (75HP)/ 2400 rpm
Chassis
Transmission gear				265 Two-piece, 4F+ 4R shift
Axles				Small size wheel -side reducer driving axle
Tyre size				23.5/16
Loading shovel & chute
Number of shovel loading times of full drum				Around 3 times
Water system
Water tank capacity				500 L
Vehicle
Max. Driving speed				30km/h
Operating weight				4500Kg
Max. payload				3600 Kg
Max. gross weight				7800 Kg
Overall size (L×W×H)				5350*1800*2900mm
Service refill capacities
Fuel tank:				65L
Total hydraulic system capacity:				65L
Engine oil:				16L
Mixing Drum
Geometrical volume				1.8M3
Concrete output				1.5 M3 / batch
Drum rotating speed				18 RPM

VTCM-2600 Basic Parameter
Mixing volume	2.6 M3
Geometrical volume	3.6 M3
Concrete output	2.6m³/ batch, 10.4 m³/ h
Drum rotating speed	13 rpm
Loading bucket capacity	600 L
Loading times to full drum	Around 5 times
Max. water suction capacity	250 L/min. (Self-priming electronic water pump)
Water tank capacity	2x250 L
Max. travel speed	30 km/h
Gradeability	40°
Operating weight	6500 kg
Overall dimension (L×W×H)	7800*2750*4100 mm

VTCM-3500 Basic Parameter
Mixing volume	3.2 m³
Geometrical volume	5.3 m³
Concrete output	3.2 m³ / batch, 12.8 m³ / h
Drum rotation speed	20 rpm
Loading bucket capacity	0.6 m³
Loading times to full drum	6 times
Max. water suction volume	550 L/min. (self-priming hydraulic water pump)
Water tank volume	2 x 310 L
Max. travel speed	30 km/h
Max. gradeability	40°
Operating weight	7200 kg
Overall size (L×W×H)	7830*2680*4170 mm

VTCM-4000 Basic Parameter
Mixing Capacity	4.0 m³
Geometrical Capacity	6.1 m³
Concrete Output	4 m³/batch, 16 m³/h
Drum Rotating Speed	17 rpm
Loading Bucket Capacity	0.6 m³
Loading Times to Full Drum	7 Times
Max. Water Suction Volume	550 L/min, Self-priming Hydraulic Water Pump
Water Tank Volume	2x330 L
Max. Travel Speed	35 km/h
Gradeability	40°
Operating Weight	9,200 kg
Overall Dimension (L×W×H)	7640*2870*4750 mm

Our Advantages
Features:
1. Self-contained mixer truck with compact dimensions can easily drive through narrow passages and doors.
2. Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.
Options:Color and style can be customized
For More Information Please Contact Our Sales Consultant √
Looking Forward To Your Inquiry Company Profile

Factory introduction:
Our company has more than just a rigorous working attitude! A more pleasant working environment. While the employees of LEITE Machinery Company continue to serve customers, they are also very happy to have parties and dinners. Our team, like our factory, is very large and advocates the combination of work and rest
For transportation, we have three methods: sea, air, and land, and support multiple payment and multiple transportation methods. You can receive this mini excavator you like at the port, and of course you can also receive the mini excavator at your doorstep. (The cost is higher, not recommended), we guarantee that we will not charge any intermediate fees and extra fees that exceed the shipping cost, we just want you to get this favorite mini excavator faster and more preferentially! !
Shipping & Payment
For Transportation, We Have Three Methods: Sea, Air, And Land, And Support Multiple Payment And Multiple Transportation Methods. You Can Receive This Mini Excavator You Like At The Port, And Of Course You Can Also Receive The Mini Excavator At Your Doorstep. (The Cost Is Higher, Not Recommended), We Guarantee That We Will Not Charge Any Intermediate Fees And Extra Fees That Exceed The Shipping Cost, We Just Want You To Get This Favorite Mini Excavator Faster And More Preferentially! !
1. Who are we?
Shandong VOTE Machinery Co., Ltd. is a modern international company engaged in construction machinery.
Wright has developed rapidly with advanced technology and modern management, and has CE and ISO certificates. Strict quality control system and high-quality production lines have created high-quality products and fast delivery services. We have established a professional after-sales team that can serve our customers as soon as possible.
2. What are the advantages of our Self Loading Concrete Mixer machine?
The advantages of the Self Loading Concrete Mixer support multi-function operation, small size of the mixer, suitable for limited places, widely used in new rural construction, urban construction, tunnels, airports, seaports, high-speed rail sites, remote areas without electricity, intermediate projects, farmhouses, buildings , Rural roads, irrigation, reservoirs, mines, rural bridges, highways, etc., have the characteristics of labor saving and high concrete output.
Warranty period: Within one year after delivery, if there is any quality problem, we will provide you with accessories for free.
The latest configuration announcement: Self-contained mixer truck can add weighing system and air conditioning! ! !
Provide customized services, your exclusive purchase, personalized purchase, you are different from others!
3. What do you just need to do?
Contact us, tell us your needs, and provide your WhatsApp/email. Foreign trade representatives will contact you as soon as possible to provide you with preferential prices for customized products you like, without wasting your time! FAQ
FAQ
1.Q:Can The Factory Support Mass Production? Can I Purchase A Customized Sample First?
A:Dear friends, VOTE company can support mass production. It can mass produce 100+Self Loading Concrete Mixer in one month, and can support customization (one piece is fine), but it cannot provide free prototypes. Please forgive me, my friend!
2.Q:Can It Be Transported To My Door? I Want To Get My Favorite Self Loading Concrete Mixer Soon?
A:Of Course, My Friend, But If Your Family Is Located Very Close To The Port, We Suggest That You Can Go Directly To The Port To Transport Your Goods, So You Can Save A Lot Of Money! If The Distance Is Long, You Can Find An Inland Transportation Company By Yourself, And We Can Communicate With Him; We Can Also Find An Agency For You, But The Toll Will Be Very High (Not Recommended)
During Transportation, We Will Not Charge Any Intermediate Fees And Additional Service Fees Other Than Freight. We Just Want You To Get Your Favorite Mini Excavator Earlier.
3.Q:How Can I Guarantee After-Sales After I Buy It?
A:Dear friends, our machine has a one-year work warranty period. During this time, if there is any problem with the machine itself, we will repair it for you free of charge, but if it is man-made damage, we will Not responsible for the maintenance of the machine, please forgive me, my friend. If you have any questions, please contact us Greetings

---
