US$50,000.00-70,000.00
|
1 units
(MOQ)
|
Basic Info.
Certification
ISO9001: 2000, CE
Maximum Outlet Pressure of Concrete (Low
8.5MPa
Hydraulic System Type
Open Type
Total Length * Total Width * Total Heig
11700*2500*3900
Transport Package
Standard Package
Specification
Standard size
Production Capacity
100units/Year
Product Description
Product Parameters
| DXD5350THBL | project
| unit | technical parameters
|
Chassis and complete vehicle parameters
| chassis
| - | Sinotruk steyr
|
emission standard
| - | Six countries
|
Engine brand
| - | Weichai
|
Engine horsepower
| Ps | 350/420 |
Bridge number
| - | 3 |
wheel base
| mm | 4750+1350/4800+1370 |
Total length * total width * total height
| mm | 11700*2500*3900 |
Vehicle quality
| kg | 35000 |
Arm frame and support leg parameters
| Maximum fabric height
| mm | 46300 |
Maximum fabric radius
| mm | 41200 |
Maximum fabric depth
| mm | 32000 |
Arm frame folding mode
| - | RZ |
The first arm
| length | mm | 9700 |
| corner | ° | 89° |
The second arm
| length | mm | 7850 |
| corner | ° | 180° |
The third arm
| length | mm | 7550 |
| corner | ° | 180° |
The fourth arm
| length | mm | 8450 |
| corner | ° | 235° |
The fifth arm
| length | mm | 8750 |
| corner | ° | 180° |
Turn table rotation Angle
| ° | 359° |
Open the leg
| - | X-H |
| | Front leg spread width
| mm | 9500 |
Rear leg spread width
| mm | 10300 |
Pumping system
| Maximum theoretical pumping capacity
| m³/h | 140 |
Maximum export pressure
| Mpa | 8.5 |
The number of theoretical pumps
| Time / minute
| 25 |
Hydraulic system pressure
| Mpa | 32 |
The inner diameter of the conveying cylinder
| mm | 260 |
Delivery cylinder trip
| mm | 1800 |
Transmission pipe diameter
| mm | 125 |
Hydraulic oil cooling mode
| - | air patenting
|
Pumping the concrete collapse degree
| mm | 160-220 |
Maximum aggregate size
| mm | 40 |
Hydraulic system type
| - | open-type system
|

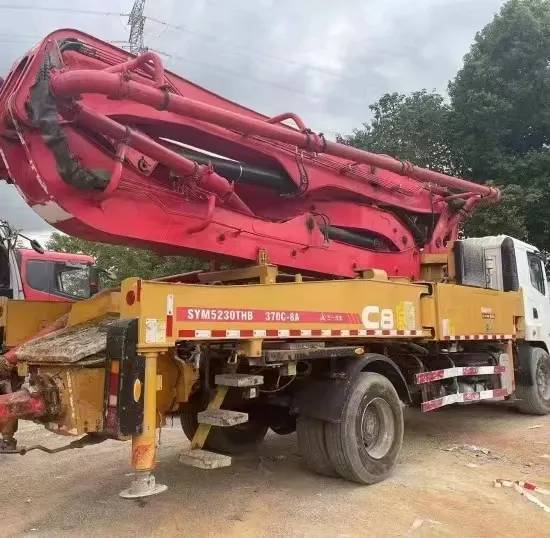

Detailed Photos
Company Profile
FAQ
1. who are we?We are based in Hunan, China, start from 2022,sell to Africa(30.00%),Southeast Asia(30.00%),Domestic Market(20.00%),Mid East(20.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?concrete pump truck,concrete mixer truck,truck crane,dump truck4. why should you buy from us not from other suppliers?In the second-hand construction machinery industry for more than ten years. Specialize in providing all kinds of construction machinery and equipment in original condition, including new and original second hand equipment.5. what services can we provide?Accepted Delivery Terms: FOB,CIF,EXW,DAFAccepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,Cash;Language Spoken:English,Chinese,Spanish,Arabic,French,Russian
>>
