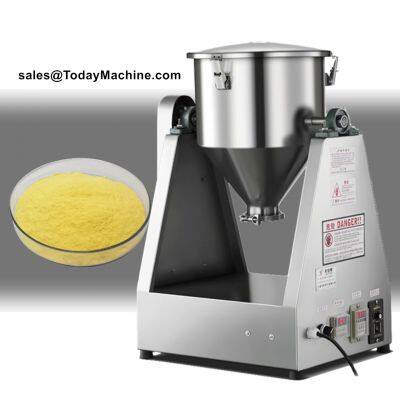

Double Cone Mixer
A dual-conical blending apparatus, the double cone mixer gently and evenly mixes dry powders and granules. It comprises two cone-shaped containers connected at their widest points and a central rotating shaft fitted with mixing blades or agitators. The cones’ opposing rotations enable the powder or granules to blend and circulate throughout the vessels.
powder blending equipment
Delicately Blending: Engineered to delicately blend materials without causing any harm to fragile particles or agglomerates.
Seamless Fusion: The double cone system enables a seamless fusion of materials, culminating in a harmonious amalgam that eliminates any discernible remnants of unmixed constituents.
Modifiable Mixing: The double cone mixers are equipped with modifiable speed controls, giving the operator the ability to adjust the mixing speed to achieve the desired consistency and texture.
Capacity Range: Double cone mixers are available in a wide range of sizes, from small laboratory-scale mixers to large-scale industrial mixers with capacities of several thousand liters.
INDUSTRIES AND APPLICATIONS
1.Pharmaceutical Industry: Double cone mixers are used for mixing and blending dry powder drugs, granules, and excipients used in the production of tablets, capsules, and other pharmaceutical products.
2.Food Industry: Double cone mixers are used for blending and mixing dry ingredients such as flour, sugar, spices, and other food ingredients to produce bakery products, snacks, and other food products.
3.Chemical Industry: Double cone mixers are used for mixing and blending chemicals, pigments, and other similar materials used in the production of various chemical products.
4.Cosmetics Industry: Double cone mixers are used for blending and mixing dry powder ingredients used in the production of cosmetics, such as face powders, eyeshadows, and other similar products.
5.Plastics Industry: Double cone mixers are used for blending and mixing plastic resins and other raw materials used in the production of plastic products.
6.Agricultural Industry: Double cone mixers are used for blending and mixing dry fertilizers, pesticides, and other agricultural chemicals.
7.Mining Industry: Double cone mixers are used for blending and mixing powdered minerals and ores used in the production of various metals and minerals.
TECHNICAL SPECIFICATION
Model
| Capacity
| Volume
| Voltage
| Speed
(round/min)
| Power
| Weight
| Dimension
(mm)
|
SZH-5
| 5kg
| 10L
| 220V
| 0-33
| 0.12kw
| 25kg
| 550*400*670
|
SZH-10
| 10kg
| 20L
| 220V
| 0-33
| 0.12kw
| 30kg
| 580*400*720
|
SZH-15
| 15kg
| 30L
| 220V
| 0-33
| 0.25kw
| 40kg
| 700*480*800
|
SZH-20
| 20kg
| 40L
| 220V
| 0-33
| 0.3kw
| 60kg
| 700*680*900
|
SZH-30
| 30kg
| 60L
| 220V
| 0-25
| 2.2kw
| 100kg
| 900x750x1350
|
SZH-50
| 50kg
| 100L
| 220V
| 0-25
| 2.6kw
| 120kg
| 950x800x1450
|
SZH-100
| 100kg
| 200L
| 220V
| 0-25
| 2.8kw
| 150kg
| 1250x1000x1600
|
SZH-200
| 200kg
| 400L
| 220V
| 0-25
| 3kw
| 200kg
| 1350x1200x1850
|
SZH-300
| 300kg
| 600L
| 220V/380V
| 0-25
| 3.5kw
| 250kg
| 1450x1200x2050
|
SZH-500
| 500kg
| 900L
| 380V
| 0-25
| 7kw
| 400kg
| 1550x1300x2200
|
>>
