Wc10co4cr Tungsten Coating Steel Shaft and Piston Rod

Product Description

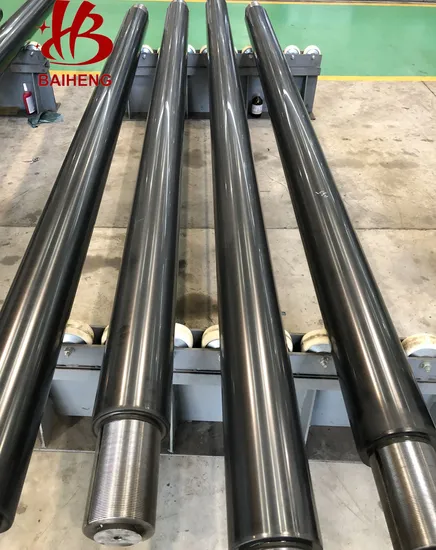

wc10co4cr tungsten coating steel shaft and piston rod
Product name : Chrome bar, piston rod, chrome plated bar, chrome plated rod, chrome shaft, hard chrome plated bar, induction bar, quenched and tempered bar, chrome shaft. hydraulic cylinder rod, hyraullic chrome rod,chrome plating hydraulic cylinder rods, chrome piston rod
Keyword:
chrome rod,chrome plated shaft,chrome rod for hydraulic cylinders,chrome plated rod,chromed shaft,chrome cylinder rod,hard chrome rod,hard chrome shaft,hard chrome plated rod,hard chrome plated bar,1045 chrome rod,chrome hydraulic rod,hydraulic cylinder rod,cylinder rod,hydraulic rod,cylinder piston rod,hydraulic cylinder piston rod,hydraulic piston rod,hydraulic cylinder shaft,chrome rod for hydraulic cylinders,chrome hydraulic cylinder rod supplier,chrome cylinder rod,piston rod material,hard chrome rods,hydraulic piston rods,hard chrome plated rods,stainless steel shaft,stainless steel chrome,steel chrome plated,hydraulic rods,cylinder rods,hydraulic piston,hard chrome plated shaft,chrome rods for sale,chrome rod price,chrome steel rod,chrome plated steel rod,hard chrome hydraulic rod,hydraulic chrome rod,induction hardened chrome plated rod
,chrome piston rod,hydraulic chrome bar,1045 chrome rod,1045 chrome plated rod,hard chrome piston rod,chrome moly rod,chrome moly welding rod,chrome piston rod,chrome plated round bar,chrome plated steel bar,hard chrome shaft,induction hardened chrome rod,induction hardened chrome plated rod,metric chrome rod,hard chrome rod,chrome plated rod manufacturers,hard chrome shaft material,chrome shaft material, 20MnV6 chrome rod, 20MnV6 chrome shaft
Diameter: φ6-φ300
Supply condition: Standard chrome plated; induction hard; quenched and tempered
Roughness: Ra≤0.4 micron
Tolerance on OD: ISO f7 on the diameter
Ovality: Half of the tolerance ISO f7
STRAIGHTNESS: ≤0.2MM/M
Q+T Hardness : 220-280 HB (depends on customer requirement )
Induction Hardness: 50-65HRC (depends on customer requirement )
Packing: Anti rust oil to be applied on material and each bar/rod to be packed in paper sleeve
Application: Direction rods, operating rods, adjusting rods, transmission shafts, die casting machines, injection molding machines, fitness equipment, electronic equipment, power tools, light industrial machinery, precision machinery, engineering machinery, packaging machinery, textile machinery, printing machinery, printing and dyeing machinery, mining Used in machinery, woodworking machinery, automation equipment and other various industrial machinery and supporting equipment

CHEMICAL COMPOSITION

Material	C%	Mn%	Si%	S%	P%	V%	Cr%
CK45	0.42-0.50	0.50-0.80	≤0.04	≤0.035	0.035		≤ 0.25
ST52	≤0.22	≤1.6	≤0.55	≤0.04	≤0.04
20MnV6	0.16-0.22	1.30-1.70	0.10-0.50	≤0.035	≤0.035	0.10-0.20	≤0.30
42CrMo4	0.38-0.45	0.60-0.90	0.15-0.40	≤0.035	≤0.035	0.07-0.12	0.90-1.20
40Cr	0.37-0.45	0.50-0.80	0.17-0.37	≤0.035	≤0.035		0.80-1.10
304	≤0.07	≤2	≤1	≤0.03	≤0.045		18-20
420	0.16-0.25	≤1.5	≤1	≤0.03	≤0.04		12-14
431	0.12-0.22	≤1.5	≤1	≤0.03	≤0.04		15-17
430	≤0.12	≤1	≤0.75	≤0.03	≤0.04		16-18

MECHANCIAL PROPERTIES

Material	T.S (MPA)	Y.S (MPA)	Elongation %	CONDITION
CK45	≥610	≥355	≥15	NORMALIZE
CK45	≥800	≥630	≥20	Q + T
ST52	≥500	≥355	≥22	NORMALIZE
20MnV6	≥750	≥590	≥12	NORMALIZE
42CrMo4	≥980	≥850	≥14	Q + T
40Cr	≥1000	≥800	≥10	Q + T
304	≥520	≥205	≥40
420	≥635	≥440	≥20
431	≥800	≥600	≥10
430	≥450	≥205	≥22

Tolerance:

Diameter (mm)	ISO f7 (um)	ISO f8 (um)	g6 (um)
6 <Φ≤10	-13 to -28	-13 to -35	-5 to -14
10 <Φ≤18	-16 to -34	-16 to -43	-6 to -17
18 <Φ≤30	-20 to -41	-20 to -53	-7 to -20
30 <Φ≤50	-25 to -50	-25 to -64	-9 to -25
50 <Φ≤80	-30 to -60	-30 to -76	-10 to -29
80 <Φ≤120	-36 to -71	-36 to -90	- 12 to -34
120 <Φ≤180	-43 to -83	-43 to -106	-14 to -39
180 <Φ≤250	-50 to -96	-50 to -122	-15 to -44

---
