Hot Sale G654D/G657A1 2km/5km/10km Single-Mode Glass Optical Fiber

Product Description

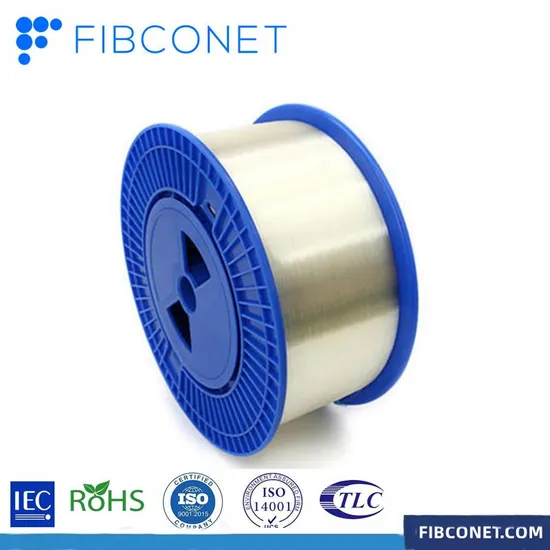

Hot sale G654D/G657A1 2km/5km/10KM Single-Mode Glass Optical Fiber
Product Description Glass optical fibers consist of tiny strands of glass bundled within application-specific sheathing, like stainless steel, for durability and high-temperature resistance. They connect to photoelectric sensors to guide light from the sensing head to the target. These fibers operate within an impressive temperature range from -40°F to +900°F, making them suitable for communication, sensor, and measurement systems. They are also effective in harsh environments, such as corrosive and wet conditions.
Features Bend Radius: Minimum bend radius of 7.5mm for excellent anti-bending properties. Compatibility: Fully compatible with G.652 single-mode fiber for full-band (1260~1626nm) transmission. Performance: Low Polarization Mode Dispersion (PMD) for high bit-rate and long-distance transmission. Extremely low micro-bending attenuation suits all optical cable types, including ribbons. Durability: High anti-fatigue parameters ensure a long service life under small bending radii. Applications Cable Constructions: Suitable for all types. Full Band Transmission: 1260~1626nm transmission. FTTH: High-speed optical routing. Optical Cables: Ideal for small bend radius and small-size optical fiber cables and devices. L-band Applications: Supports extended wavelength needs. Product Parameters

TESTING REPORT FOR B1.3(G652D)
Optics Specifications			Result
Attenuation(dB/km)	@1310nm	≤0.34db/km	Comply
	@1383nm (after hydrogen aging)	≤0.32db/km	Comply
	@1550nm	≤0.22db/km	Comply
	@1625nm	≤0.24db/km	Comply
Dispersion	@1285nm~1340nm	-3.0~3.0ps/(nm*km)	Comply
	@1550nm	≤18ps/(nm*km)	Comply
	@1625nm	≤22ps/(nm*km)	Comply
Zero-Dispersion wavelength		1300~1324nm
Zero-Dispersion slope		≤0.092ps/(nm2*km)
Mode field diameter @ 1310nm		9.2±0.4μm
Mode field diameter @ 1550nm		10.4±0.8μm
PMD	Max. value for fiber on the reel	0.2ps/km 1/2	Comply
	Max. Designed value for link	0.08ps/km 1/2	Comply
Cable cutoff wavelength,λ cc		≤1260nm	Comply
Effective group index(Neff)@1310nm		1.4675	Comply
Effective group index(Neff)@1550nm		1.4680	Comply
Macro-bend loss(Φ60mm,100 turns)@1550nm		≤0.05db	Comply
Back scatter characteristic(@1310nm&1550nm)			Result
Point discontinuity		≤0.05db	Comply
Attenuation uniformity		≤0.05db/km	Comply
Attenuation coefficient difference for bi-directional measurement		≤0.05db/km	Comply
Geometrical characteristics			Result
Cladding diameter		125±1μm	Comply
Cladding non-circularity		≤1%	Comply
Core/cladding concentricity error		≤0.4μm	Comply
Fiber diameter with coating(uncolored)		245±5μm	Comply
Cladding/coating concentricity error		≤12.0μm	Comply
Curl		≥4m	Comply
Mechanical characteristic			Result
Proof test		0.69GPa	Comply
Proof test		1.4N	Comply
Dynamic stress corrosion susceptibility parameter(typical value)		≥20	Comply
Environmental characteristics(@1310nm&1550nm)			Result
Temperature induced attenuation(-60~+85ºC)		≤0.5dB/km	Comply
Dry heat induced attenuation(85±2ºC,30days)		≤0.5dB/km	Comply
Water immersion induced attenuation(23±2ºC,30days)		≤0.5dB/km	Comply
Damp heat induced attenuation(85±2ºC,RH85%,30days)		≤0.5dB/km	Comply

Company Profile
1. who are we?We are based in Zhejiang, China, start from 2020,sell to South America(30.00%),Southeast Asia(20.00%),South Asia(20.00%),Eastern Europe(10.00%),Mid East(10.00%),Central America(10.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production; Always final Inspection before shipment;3.what can you buy from us?plc splitter,patch cord,fiber optic cable,splice closure,distribution box4. why should you buy from us not from other suppliers?Fibconet focus on the fiber optical components, such as PLC splitter, patch cord, adapter, connectors etc. Especially for the PLC spliiter, it can work in the extremely cold environment. Even in the -50 centigrade degree, like in Russia.5. what services can we provide?Accepted Delivery Terms: all;Accepted Payment Currency:all;Accepted Payment Type: all;Language Spoken:nullOperating Case Temperature

---
