High Quality Slant Bed Mini CNC Lathe Machine for Metal Cutting Milling

US$6,500.00
1-2 Pieces
US$6,300.00
3+ Pieces

Basic Info.

Model NO.
KX-25
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
System
Nanjing Kaitong/Syntec/GSK
X-Travel
500mm
Z-Travel
180mm
Spindle Bore
25mm
Maximum Particle Diameter (Disc Type)
200mm
Maximum Length of Workpiece to Be Proces
150mm
Single Side Cutting of Stainless Steel
2mm
Repositioning Accuracy
+-0.01mm
Smooth Finish
1.6ra
Turning Diameter
350mm
Spindle Speed
3500r/Min
Spindle Motor Power
3.7kw
Transport Package
Wooden Cases
Specification
1750*1350*1700mm
Trademark
NEORONKO
Origin
Guangdong China
HS Code
8458110090
Production Capacity
500 Units / Month

Product Description

Product Description

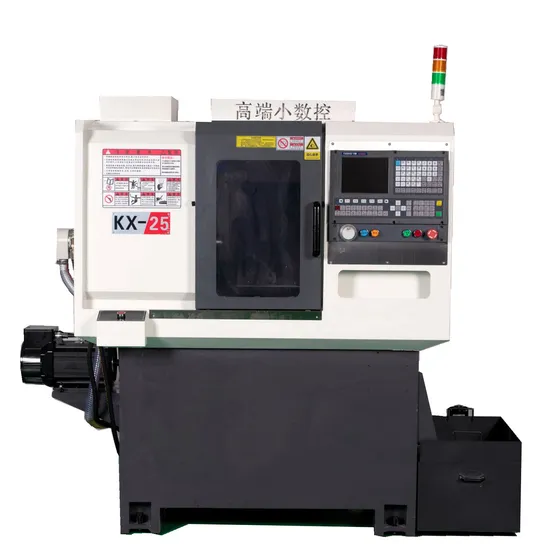

KX-25 CNC LATHE MACHINE
Machinery Specification
Specification Parameter Optional
LATHE Slant bed degree 30°
Clamping way Hydraulic clamping
Tool form Row of knives
PART Guide rail Taiwan 25 Linear guideway
Ball screw Taiwan 25 ball grinding precision
Bearing 7015/7013 XEZ
Ground to spindle center height 1080mm
Spindle motor 3.7kw DMC servo motor
Feed servo 1.2kw DMC servo motor
CNC Control System NANJINGKT 820Ti SYNTEC/GSK/LNC

Application scope of processing Normal Use Value Maximum Value
Working
ability		 Spindle bore φ25mm φ25mm
Maximum particle diameter
(disc type)		 200mm 300mm
Maximum length of workpiece to be processed 150mm 180mm
Single side cutting of
stainless steel		 2mm 2.5mm
Repositioning accuracy ±0.01mm
Smooth finish 1.6RA
Center height of tool rest 40mm
Turning diameter φ350mm
Square tool specification 16mm
Travel X axis travel 500mm
Z axis travel 180mm
Feed X-axis fast moving velocity 25m/min 30m/min
Z-axis fast moving velocity 25m/min 30m/min
X axis servo power 1.2KW
Z axis servo power 1.2KW
Spindle Spindle speed 3500r/min 4000r/min
Spindle motor power 3.7KW
Spindle nose A2-4
Support hydraulic chuck size 5 inch
Dimensional
&
weight		 Dimensions 1750*1350*1700mm
Weight 1500KG
