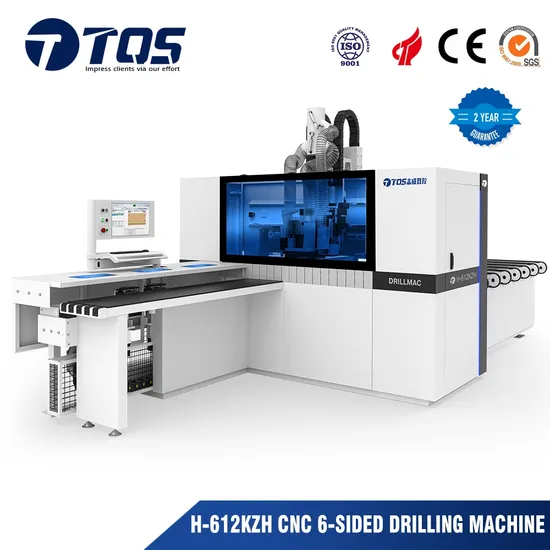

Tqs CNC H-612kzh Six-Sided Drilling Machine CNC Boring Machine with CE

Product Description

Stroke of each axis & Max. positioning speed	X axis	5000mm & 140m/min
	Y axis	1200mm & 80m/min
	Z axis	90mm & 30m/min
	U axis	1200mm & 60m/min
	V axis	1200mm & 80m/min
	W axis	60mm & 30m/min
	A axis	5000mm & 140m/min
	Y2 axis	1500mm & 80m/min
	Z2 axis	90mm & 30m/min
Working range	Max. board width	( Without side milling )1200mm
		( With side milling ) 850mm
	Min. board width	35mm (without side milling)
		50mm (with side milling)
	Min. board length	150mm (without side milling)
		400mm (with side milling)
	Max. board thickness	60mm
	Processing depth	Drilling 0-45mm
		Side milling X: 45MM Y: 65MM
	Dust extracting quantity	7300m³/h
Upper processing unit	Vertical drill bits	12 pcs
	Horizontal drill bits	2*4 pcs
	Drill bits rotation speed	3400rmp(r/min)
	Face milling spindle	6KW air cooling with automatic tools changing, 4 folds tools changer (servo motor driving)
	Side milling spindle	6KW
	Spindle type	ISO 30 / Er32
Lower processing unit	Drilling head	9V
	Face milling spindle	3.5KW
	Spindle type	Er 25
Others	Working table height	950mm
	Motor power	26.2Kw
	Voltage	380V/50Hz
	Working pressure	0.7-0.8Mpa
	Dimension	5200x2840x2200mm
	Weight	Approx.. 3900kg

Rigid body frame Main structure is solid welded, and done the tempering treatment, to ensure the stability of the machine, without the deformation.

4 folds linear tools changer The machine come with one CC brand 6.0KW air cooling spindle, which can do automatic tools changing. Equips with servo motor driving 4 folds linear tools changer, which can meet the demands of various procedures.

Upper working unit Vertical drill bits:12pcs Horizontal drill bits:2*4 pcs Drill bits rotation speed:3400rmp(r/min) Face milling spindle:6KW air cooling with automatic tools changing,4 folds tools changer(servo motor driving) Side milling spindle:6KW Spindle type:ISO 30 / Er32

Down working unit Drilling head:9V Face milling spindle:3.5KW Spindle type:Er 25

Bar Code Scanner Considering to cooperate with the furniture design software, the machine comes with Bar Code scanner, can achieve the quick NC program importing.

Air floating table The feeding table adopts air floating structure, which can reduce the board surface damages; meanwhile will reduce the man-power needs of heavy board feeding.

HMTP dust-proof linear guide way Dust-proof design, lengthened running guide way, processing plate length is unlimited, one time positioning to reduce clamper shifting time.

AC Servo & Driver Top brand from China- INOVANCE 1.5KW AC servo motor with high inertia, come with absolute encoder, to ensure the working accuracy.

Side align device Equip with automatic high precision side align device, which can do the positioning according to the different board width.

1. What's your guarantee? Which type after sale service can you provide to us?All the machine, we can offer the 1 year guarantee to our customers; any parts damaged due to the quality issue, we will send the parts via DHL, Fedex or air shipment urgently. After sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training. Also any small issues, you can knock us online, we will offer the rapid action to your concerns.2. Which type payment term can you accept? How could we keep our capital safe?We can accept the T/T and L/C at sight. We have more than 10 years exporting experience, so we know more about the capital safty concern of our customer. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C). 3. What is the leading time, if we did the payment to your side?The leading time of most common machines, will be 10-25 days after collecting the down payment / copy of L/C. Specially designed production will take little bit longer time.4. Can you accept some O.E. M service to us? or any other service could you do for us?We have more than 15 years experience in the woodworking machinery industry, also have more than 5 experienced engineers, so we can do the special design according to your requirement. Also, our exporting team has more than 10 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.

---
