US$14,000.00-16,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Normal Pressure Filling
Automatic Grade
Fully Automatic
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Surface Type
Filling Principle
Atmospheric Pressure
Packaging Container Lifting Structure
Chute Lifting
Packaging Material
Plastic
Suitable Bottle Size
200ml-2000ml
Filling Valve
Normal Pressure Filling
Capping Type
Screw Capping
Dimension
1900X1500X2000mm
Transport Package
Wooden Case
Production Capacity
5units/Month
Packaging & Delivery
Package Size
190.00cm * 160.00cm * 220.00cm
Package Gross Weight
1700.000kg
Product Description
Product Description

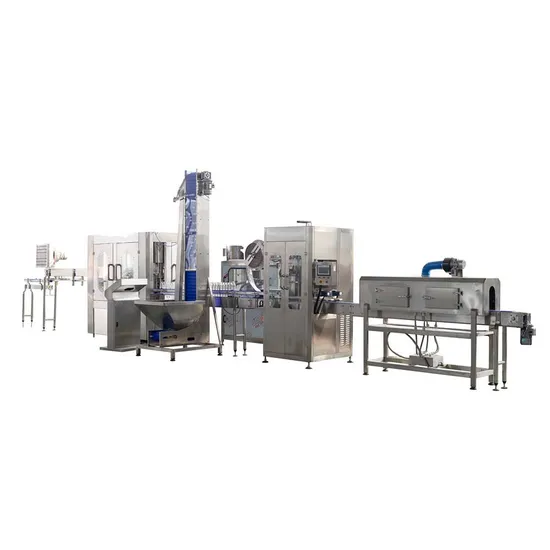

General of VACGF3000 rinser filler capper 3 in 1 machine/pure water filling packing machine/ bottling plant
This VACGF-3000 Bottled water machine is a rinser, filler, and capper integrated together, based on the technology from European .It is suitable for the filling drinking in PET bottles of drinking water .pure water ,mineral water ,bottled water .table water ,drinking pure water ,
the advanced technology and the beautiful shape, the reliable operation and the high efficiency help the customer get a satisfactory result.
Usage: for round or rectangle PET bottles for pure water, mineral water etc normal temperature filling products.
The round bottle (other shape similar) sizes: 250ml-2000ml plastic material with plastic screw type of caps .
Product Parameters
Technology data for Bottled pure water filling machine/ filling 3in1 machine /plastic bottle water filling monobloc
| model | VACGF3000 |
| theory capacity: | 2000-3000bph(500ml bottle) |
| Main motor | 1.5kw |
| filling pump: | 0.55kw |
| Spraying pump: | 0.37kw |
| Washing heads | 8pcs |
| filling heads | 8pcs |
| capping heads | 3pcs |
| max bottle size | 2000ml |
| dimension | 1900x1500x2000mm |
| weight | 1700kg |
| power | 380v/3ph/50hz / or speical ordered |
Main configuration
main spare brand
| PLC | Mitsubishi |
| touch screen | china taiwan brand |
| pump | CNP |
| main electricals | famous brand |
| main motor | china brand |
Drawing of the machine
Detailed Photos
Certifications
Our factory
Contact us
https://glorymachinery.en.made-in-china.com/contact-info.html
Related models
| VACGF4000 |
| VACGF6000 |
| VACGF10000 |
| VACGF15000 |
