Mini Wheat/Corn Flour Milling Machine Mill Machine

Product Description

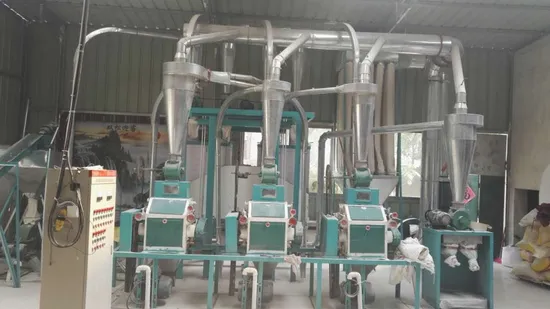

Complete set wheat flour milling mill machine
Wheat/Maize Flour Milling Machine (5-500T/24H)
Wheat/maize Flour mill:
We can professionally supply complete sets of wheat/corn flour milling machine to produce different grades flour through special technical design for customers needs.
Capacity(wheat/corn):
5T/24h, 10T/24h, 15T/24h, 20T/24h, 30T/24h, 40T/24h, 50T/24h, 60T/24h, 80T/24h, 100T/24h, 120T/24h, 150T/24h, 200T/24h, 300T/24h, 500T/24h..
Wheat Flour grade: Capacity(wheat/24h): 5-500T/24h
2. Flour extraction: To produce standard flour:75-82%
To produce grade 2flour: 70-75%
To produce grade 1flour: 60-68% Maize/corn flour milling plant:
maize flour mill adopts(fully dry) mixed peeling demering technology, thus can producing different particle size low fat maize grits, maize flour and maize bran. maize flour is mainly used in food factory, ethanol factory, liquor factory, brewery, lactate factory, maize sugar and maize processing factories.
Machine relative index of maize flour mill
A. Technical index:
1. Product type: maize grits, maize flour, maize bran;
2. Power consumption: 60kwh/ maize ton ;
3. Product yield: maize grits: about 45-55%,
maize flour: about20-30%;
maize bran: 25% or so;
maize grits and maize flour total yield: 75-80%
B. Product quality index::
1. maize flour thickness:40-120 mesh ( thickness can be adjusted);
2. Sand content: not more than 0.002g/kg;
3. Magnetic metal content: not more than 0.003g/kg;
4. Water: preservable: 13.5-14.5%;
5. Color and odour: pink. odour : taste normal;
6. Fat content: 0.5-1%
C. Equipment land occupation:(length*width*height): According to maize flour mill capacity
1. Cleaning part
this part is to remove the middle and small impurities
from the raw wheat such as,
dust, stone, magnetic material, rotten wheat and so on.

This section is to prepare for milling part and to protect the machinery as well

2. Milling part
The second step, to mill the grain (wheat, corn, maize) into flour and
separate the flour from bran
and other by-product to get the most fineness wheat flour.
(1) Mill: grinding the grain(wheat, corn) to break the integrity
by the moving roller
(2) Sifter: with different size of the mesh,
it can separate the flour, bran and other by-product, also separate large size and
small size to ensure flour quality

3. Packing part
the sewing machine and the weighter

---
