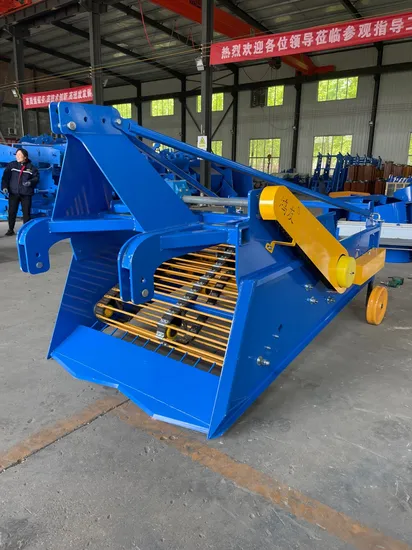

4uy-110 Herbal Materials Harvester

Product Description

This machine is suitable for various soils and is equipped with a forced soil crushing and anti-stone blocking device, making it suitable for root crops with small stones and easy-to break roots. It is used for harvesting a variety of root crops and crops. This machine has a folding device that can separate and collect the crops into a pile on the ground, which can then be loaded and stored, saving manpower and resources.
Durable

easy to operate

cost-effective

Long after-sales life

Brand guarantee

	4UY-110 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	9	Matched To The Power Output Shaft Speed	540r/min
2	Walking mode	Wheel Type	10	Matching Hanging Width	705mm
3	Working Size (length*width*height)	2760*1380*1370 (adjustable)mm	11	Blade Material	65Mn
4	Transport Dimensions (length*width*height)	2450*1380*1330mm	12	Digging Depth Adjustment Range	0~400mm
5	Overall Weight	650kg	13	Depth Limiting Mechanism Type	Depth Roller
6	Working Width	1100mm	14	Conveyer Type	Double Grid Chain Type
7	Operation Efficiency	Estimated at 0.167 ha/h	15	Conveyor Chain Clearance	75/55mm
8	Supporting Power/Machine Horsepower	80~ 100 (Bridge) Horsepower	16	Chain Bar Material	55CrSi

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Make your request and we'll meet it!
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.

Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.

Our main products include five series of more than 50 varieties, such as potato harvesters, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and potato harvesters.

The company has passed the ISO 9001-2008 quality system certification We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery.

We warmly welcome both new and old customers to cooperate and negotiate with us.
The company's main products are: potato harvester, field stone picker, ridge la minating machine, potato combine harvester, residue film recycling machine, cassa va whole or mechanical five series of more than 50 varieties.
Make the quality management level of the enterprise embark on a new level, provide a strong guarantee for product quality, and lay a solid foundation for the d
evelopment of the enterprise.

Our company is dedicated to provide customers with stable quality products and satisfactory service.The company guarantees: for the sake of customers,
responsible for product quality in the end.
Our performance pledges include:
Introduce products to customers, provide consultation and necessary technical and quality information.
To help customers choose product types, specifications and models s cientifically and reasonably.
After the service is completed, the after-sales service staff will conduc t customer return visits to ensure customer satisfaction with the service and collect feedback to improve the service quality.

---
