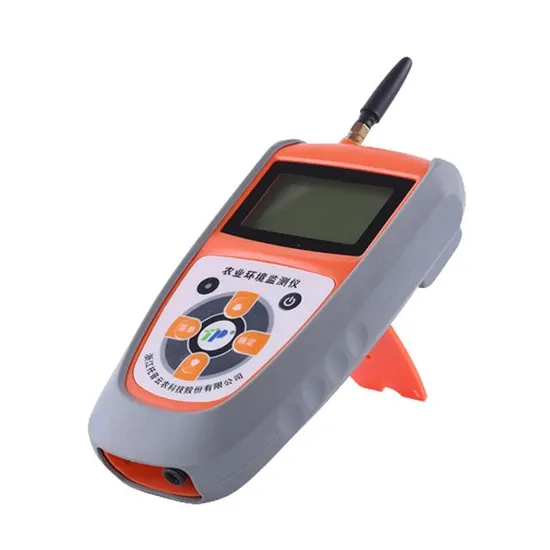

Tnhy-5 Series Agricultural Weather Monitoring System

Product Description

Product Description
TNHY-5G has a GPS positioning function, and a Mandarin voice function, with a TF memory card, the host can also store data locally and connect to the computer to export data, and the multi-function is integrated into one. It can record five parameters of temperature, humidity, light intensity, CO2 concentration, and photosynthetically active radiation, including five parameter sensors.Large LCD screen, touch buttons, intelligent and portable, easy to operate.
One-key switch, manual and automatic recording.
AC and DC dual-purpose, 8.4v 1500mAh lithium-ion battery, with charging protection, and low voltage protection.
32 channels, different sensors can be freely combined.
RS485 communication, the longest cable is 100 meters.
Parameters can be switched freely. The sampling interval time for each sensor can be set individually.
PC software is available.GPS is an optional feature.Difference Between Models

Model		Function
TNHY-4G		Temperature, humidity, Illuminance, CO2 Concentration
TNHY-5G		Temperature, humidity, Illuminance, CO2 Concentration, PAR
TNHY-6G		soil moisture, temperature, humidity, light intensity, CO2 concentration, PAR
TNHY-7G		Soil temperature, soil moisture, temperature, humidity, light intensity, CO2 concentration, PAR
TNHY-8G		Soil temperature, soil moisture, soil salinity, temperature, humidity, light intensity, CO2 concentration, PAR
TNHY-9G		Soil temperature, soil moisture, soil salinity temperature, humidity, light intensity, CO2 concentration, PAR, Soil pH
TNHY-10G		Soil temperature, soil moisture, temperature, humidity, light intensity, CO2 concentration, PAR, wind seep and wind direction, rain gauge.
TNHY-11G		Soil temperature, soil moisture, soil salinity, temperature, humidity, light intensity, CO2 concentration, PAR, wind speed and wind direction, rain gauge, soil pH
TNHY-12G		Soil temperature, soil moisture, soil salinity, temperature, humidity, light intensity, CO2 concentration, PAR, wind speed and wind direction, rain gauge, soil pH, soil compaction
TNHY-13G		Soil temperature, soil moisture, soil salinity, temperature, humidity, light intensity, CO2 concentration, PAR, wind speed and wind direction, rain gauge, soil pH, soil compaction, global solar radiation

Specification

Technical parameter
Testing Index		Parameter
Temperature		Range:-40ºC - 120ºC; Accuracy:±0.3ºC; Resolution:0.1ºC
Humidity		Range:0-100%RH; Accuracy:±3%RH; Resolution: 0.1%RH
Dew Point		Range:-40ºC - 120ºC; Accuracy:±0.4ºC; Resolution:0.1ºC
Soil Salinity		Range: 0-23mS/cm; Accuracy: ±2%FS; Resolution: 0.01mS/cm
Soil compaction		Range: 0-89kg/cm² (0-100kg)/(0-7922kpa)/(0-890N/cm²); Accuracy: ±0.5%; Resolution: 1
Dew point		Range: -40ºC~120ºC; Resolution: 0.1ºC; Accuracy: ±0.4ºC
Light intensity		Range: 0~200000Lux; Resolution: 1Lux; Accuracy: ±2%FS
Photosynthetically active radiation		range: 0~2700umol/m s; Resolution: 1μmol/m² s; Accuracy: ±1μmol/m² s
Wind direction		Range: 0~360°; Accuracy: ±5°; Resolution: 3°
Wind speed		Range: Wind speed 0~45m/s; Resolution: 0.1m/s; Accuracy: Wind speed ±(0.5+0.03xV)m/s
Rainfall		Range: 0~4mm/min; Accuracy: ±0.1mm; Resolution: 0.1mm
CO concentration		Range: 0~2000PPM (if you want a range of 5000PPM or above, please notify before ordering); Accuracy: ±(50PPM +measured value x3%); Resolution: 1PPM
Soil temperature		Range: -50ºC~100ºC; Accuracy: ±0.5ºC; Resolution: 0.1ºC
Soil moisture		Range: 0~100%; Resolution: 0.1%; Accuracy: ±2.5% (indoor) ±5% (outdoor)
pH		Range: 0~14; Accuracy: ±0.5
Total radiation		Range: 0~2000w/m²; Accuracy: ±1% (daily accumulation); Resolution: 5W/m²

Packing and Deliver
We have a professional after-sales team with global service coverage and a 24-hour time difference free to provide you with solutions.
After Sales Service
We have a professional after-sales team with global service coverage and a 24-hour time difference free to provide you with solutions.
FAQ
1. Are you a manufacturer or not?Yes, we are. We have more than 300 workers and 26680 square meters of production base in Zhejiang province which is close to Shanghai and Ningbo port. Welcome to come and visit our factory.
2. How do you guarantee the quality of your products?
We have passed ISO9001 / 14001 / 45001 quality system certification. And has a professional quality inspection team of more than 30 inspectors. Adhere to the strict quality control of each process from raw materials to packaging.
3. What is your after-sales service?
The warranty time is 1 full year, lifelong maintenance.
4. How long is your delivery lead time?
It is generally 3-5 days, but it will vary according to different products and quantities. 5. OEM available?
Yes, OEM is acceptable. Please contact us for specific information.Company Profile
TOP Cloud-Agri was founded in 2008. It is a national high-tech enterprise specializing in the design, development, manufacture, and sales of agricultural testing instruments, laboratory equipment, and smart agriculture. The core products of the company are testing instruments in seed shape measurement, seed breeding, sampling, cleaning, storage, seed vigor and health research, plant physiology, soil physical properties analysis, crops quality analysis, food safety detection, agriculture produces quality testing, plant protection, pest forecast, and monitoring, weather monitoring, water quality detection, smart agriculture solutions, and other general laboratory devices.
ΔCertificate TOP Cloud-Agri has passed ISO9001:2015,ISO14001:2015,ISO45001:2018 .Now we are speeding up the construction of Three Major Base.
Up to now, TOP Cloud-Agri has joined the National 863 project, State Star Plan Project, and other multiple national scientific research projects, and the company was awarded 18 national Invention patents, 40 utility model patents, 7 appearance patents, 140+ product software copyright, 39 software product registration; Meantime, TOP Cloud-Agri has been identified as Zhejiang Provincial Academician Workstation, Provincial Enterprise Research Institute.Customer Response

---
