Factory Directly Rotational Moulding Machine with Three Arms Plastic Chair Making Machine

Product Description

Product Description

Product Parameters

Model No.	Oven Size(mm)	Machine Dimensions(mm)			Total Power (kw)	Total weight(Ton)
		L	W	H
BF-2500TL	Ø2500	13500	9000	4000	35	16
BF-3000TL	Ø3000	15500	10500	4500	35	20
BF-3500TL	Ø3500	17500	11500	5100	45	24
BF-4000TL	Ø4000	19500	13500	5600	45	26
BF-4500TL	Ø4500	21500	15500	6100	56	28

Machinery type:	Carrousel rotomolding machine
Heating supply:	Natural gas,liquefied gas,diesel oil
Temperature control:	DTE Control±2ºC
Burner system:	Riello
Cooling mode:	Fan cooling
Control mode:	Touch screen+PLC(Siemens brand)
Electric brand:	Omron
Delivery time:	About 60 days after receive the deposit
Overseas Installation period	It depends on machine size,usually takes 10-20days
Heating rate:	3 miniutes from room temperature to 280 degree in oven

Machine Premium Features:
1. It only need 3mins. from room temperature increase to 250 to 280 degree in oven
2. Arm made of special alloy material of good load
3. Full gear transmission, high efficiency
4. Full automatic operation with Siemens PLC.
5. Heavy duty oven and energy saving
6. Loading and unloading easy for mould
7. Special deep cavity heating technical, suitable for complicated product
8. Internet remote control when machine has problems in overseas.
9. All motors use Siemens brand,burner is Riello from Italy and electric brand is Omron.

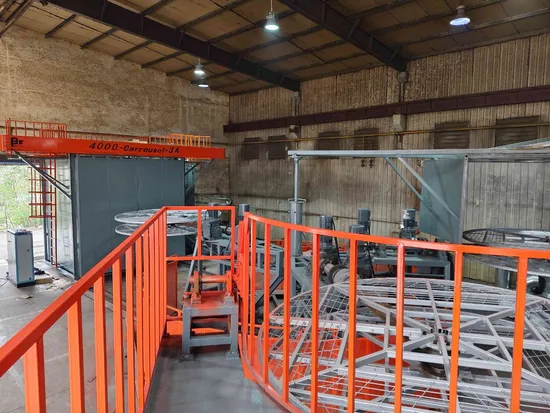

Detailed Photos
Company Indroduce
Q1. What is your company main products?
A:Our company is mainly producing rotational molding machine, mold and cooler box.
Q2. What is the MOQ for your production?
A:For rotomolded cooler,the MOQ is 50pcs;sample is available,only undertake sample cost and courier fee.We will return the sample cost when you place order.
Q3. What is your payment terms?
A:Machine&mold:50% deposit TT transfer after sign contract, and balance 50% after inspection before shipment.
Cooler box:30% deposit TT transfer and balance upon Bill of Lading copy.
Q4. What is your delivery date?
A:For machine, usually Within 60 working days upon receipt of deposit TT transfer.
For cooler box, within 20-30 working days for one 40HQ after receive deposit
Q5. Transportation
A:From Shanghai or Ningbo port by sea or by air
Q6. How about your after-sale services?
A:Machine Warranty:one year after installation and adjustment for trial in customer's workshop. We will assign two engineers to help customer assemble and trial run the machine.
Cooler box warranty: we will compensate a new one in your next order.
Q7. Do you test all your goods before delivery?
A: Yes, we test 100% of machine by our engineers before leave our company
Welcome to Contact us!

---
