High Performance Hydraulic Oil Cylinder Pressure Drilling Rig for 500-1600mm Diameter

Product Description

Product details

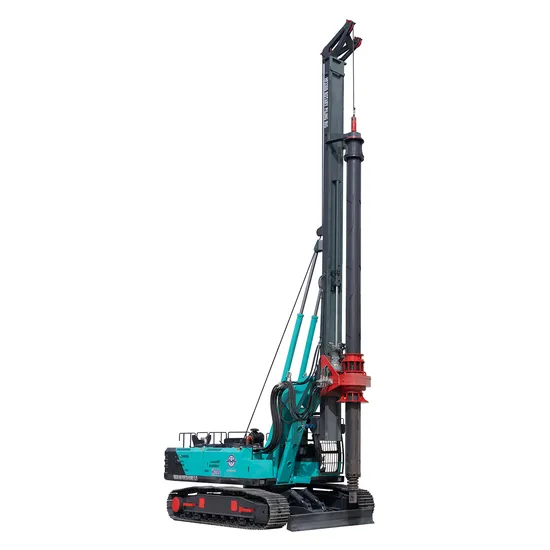

HF30+ crawler type rotary drilling rig adopt pressurized drilling mode, enabling rotary drilling depth is 30m. matching the different specifications of drilling tools, pile hole diameter range up to 500-1600mm.
It has high drilling efficiency, and after construction, it can quickly move to next working site . flexible, convenient and efficient, is a national high-speed rail construction-specific piling machinery equipment.
This machine is applicable to soil, clay, fill soil, silt, silt layer, and some strata contain pebbles, gravel; widely used in high-speed rail trestle piles, slop shield piles, photovoltaic power station foundation pile, power grids, civil construction, new rural construction, municipal construction, landscaping and other projects.
Parameter

Type		HF30+ Rotary Drilling Rig
Drilling depth		30m
Hole diameter		500-1600 mm
Engine	Brand	Cummins
	Power	210HP (154KW)
Power Head	Torque	130 KN ·m
	Rotating speed	10-50 r/min
Main Winch	Maximum lifting force	150 KN
	Lifting speed	70 m/ min
	Wire rope diameter	24 mm
Vice Winch	Maximum lifting force	30 KN
	Lifting speed	55 m/ min
	Wire rope diameter	14 mm
Pressurized Cylinder	Maximum pressure	120 KN
	Max lifting speed	120 KN
	stroke	2500 mm
Walk	Walk speed	5 km/h
	Maximum grade	30 °
System pressure		32 Mpa
Weight		28 / 30 T
Working Radius		4.3 m
Dimensions (L * W * H)		11.5 m*3 (2.8-3.6)m*3.55m

Features
Flexible: the whole tonnage is small, simple operating, moving fast, convenient transition, etc features.
High returns: small investment, quick gains, economic advantages can not be replaced.
Technology : uses a unique technology to achieve a small torque but big power characteristics, thus achieve a small machine to drill big piling hole.
Delivery
We will follow the normal and safe packing and transportation to ensure the safe arrival of the goods. We export to many countries, has rich experience in loading the drilling rig, export standard containers are 20GP, 40GP, 40HQ container, or FR in the case of bulk parts.
Working Site
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 30 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
FAQ
1,Are you trading company or manufacturer? We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.

---
