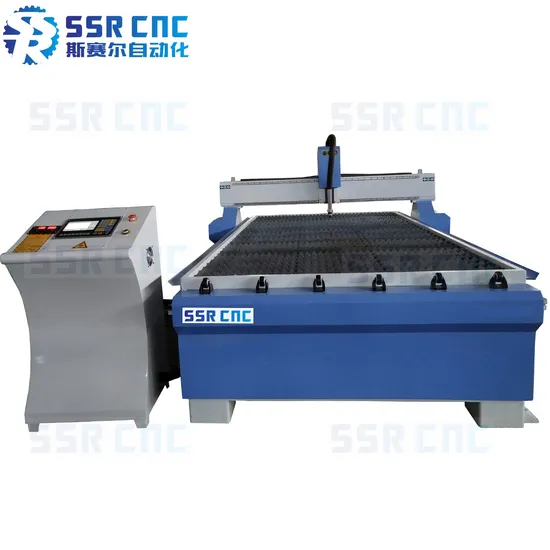

Metal CNC Plasma Cutting Machine for 3-35mm Iron, Steel Cutting CNC Plasma Cutter

Product Description

Metal CNC Plasma Cutting Machine for 3-35mm Iron, Steel Cutting CNC Plasma Cutter different size optional 1300mm*2500mm, 1500mm*3000mm, 2000mm*3000mm SSR-1325P

Features
1) The CNC Plasma Cutting Machine with strong wholly welded structure with thick square tube, Taiwan imported square rail to ensure the high speed and high accuracy.
2)The metal cutting machine cutting head with cooling system can cool the surface of the material quickly to avoid damage and residues.
3)The CNC Plasma cutter With THC cutting head, can adjust the cutting distance automatically, which ensures processing stability and perfect cutting quality, and also provides consistent high cutting, including on uneven metal surfaces.
4)The power supply regulates the working current automatically according to different thicknesses of materials to ensure smooth cutting edge.
5)Can cut very small size materials, reducing waste of materials
6)Advanced digital control system, large storage function, convenient for reading and process.
7)Compatible software: fastcam, ucancam, type 3, artcam, etc.
8)Applicable industry: advertising industry, art, cutting metal plates.
9)2 year quality Warranty, the machine with the main parts (excluding consumables) can be changed freely if there is any problem during the warranty period.
10)Free lifetime service
11)Free training at our factory.
12)We will provide consumable parts with cost price when you need a replacement.
13)24 hours on line service every day, free technical support.
14)Machine has been adjusted well before delivery.
15)Technician can be sent to your country for installation or adjustment if necessary.
Product Parameters

Machine model	SSR-1325P		SSR-1530P		SSR-2030P
Working area(X, Y axis)	1300*2500mm		1500*3000mm		2000*3000mm
Machine dimensions(Length * Width * High)	3100mm*2020mm* 1510mm		3600mm*2220mm* 1510mm		3600mm*2720mm* 1510mm
Machine structure	Welded steel
Table structure	Sawtooth
X Y Z axis guides	Taiwan imported HIWIN square rail
X Y axis driving mode	Precise helical gear rack
Plasma source	HUAYUAN LGK 63A Series (Options100A / 120A / 160A / 200A / 300A) or American imported Hypertherm Powermax Series Plasma Source
Maximum cutting thickness	≤35mm (Cutting thickness depends on the power of the Plasma source)
Maximum traveling speed	25000mm/minute
Maximum cutting speed	15000mm/minute
Controller system	STARTFIRE
Auto height controller(THC)	With
Auxiliary gas	Air
Positioning accuracy	≤0.02mm
Processing accuracy	±0.02mm
Driving mode	Powerful LEADSHINE DMA860H driver motor
Motor	Powerful 86 series 450B stepper motor
Auto lubrication system	With
Wave filter	With
Exhausting fan	With
Working voltage	AC380V, 50HZ
Net weight/Gross weight	1080KGS /1190KGS	1260KGS /1380KGS		1520KGS /1670 KGS
Package Size	3170mm*1880mm* 1560mm	3670mm*2080mm* 1560mm		3670mm*2280mm* 1560mm
Guarantee	24 months

Detailed Photos
Controller:
STARTFIRE controller--easy to operate.
Cutting Head:
The cutting head with THC(auto height adjuster), can easily adjust the distance from materials sheet surface to cutting nozzle automatically
Saw-tooth working table:
The design of this kind of table structure is very good for cutting all metal sheet, can reduce the damage of table, very durable

FASTCAM software:
FASTCAM software is the professional nesting sofware, it can Avoid and reduce the cutting distance between parts and improve the utilization rate of steel, improve the working efficiency
Plasma Power Supply:
We use HUAYUAN LGK series plasma power supply as standard for our CNC Plasma cutting machine, it is the best brand in China.
We have different brands plasma source optional:
Working Samples
Applicable industry:
The building of the ship, construction equipment, transport equipment, aerospace industry, bridge construction, wind power, structural steel, boiler containers,
Agricultural machinery, chassis electrical cabinets, elevator manufacturers,textile machinery, environmental equipment, ect.
Applicable materials:
All kinds of metal materials such as carbon steel, copper, aluminum, stainless steel,iron plate, aluminum plate, galvanized sheet, white steel plate, titanium plates ...
FAQ
What types of material can I cut with my CNC plasma?
Due to the technology advantages of our plasma cutter, we are able to provide you with more capabilities than typical plasma cutting machines. Our plasmas are most commonly used to cut steel, aluminum, brass, copper, and other conductive metals.
Please Note proper safety measures should be considered and taken for various materials. See the Cutters Recommendations or ask us for limitations.

How To Choose The Right CNC Plasma Cutter?
1. It is necessary to figure out the material and thickness to be cut. This is how to determine the cutting method.
For metal with a thickness of no more than 10mm, please choose plasma cutting,
For metals with a thickness of 10-30mm, plasma cutting and flame cutting can be used.
It is recommended to perform flame cutting on metals above 30mm.
2. Need to figure out the effective cutting width and length. According to the effective cutting, the size determines the product model range.
3. Determine the required structural form. CNC plasma cutting machine has a variety of structural forms, we have desktop type and portable type.
4. Determine the number of cutting torches needed and how to adjust the height. Two or more cutting torches using the same cutting method can cut a pattern at the same time, which can improve work efficiency (that is, the working efficiency of the two cutting torches is twice that of the cutting torch with the same pattern) (flame and plasma cutting) Torches cannot be used at the same time).
5. Requirements for the system and drive mode. You need to know the cutting system you need. The drive mode is stepper motor drive or servo motor drive.
6. The choice of power supply brand. The cutting quality and cutting price of different brands of power supplies are also different, and the choice of power supply brands should be determined according to needs.

---
