Automated Quantitative Dairy Syrup Juice Tin Can Pet Bottle Filling Lines Line Machines

Product Description

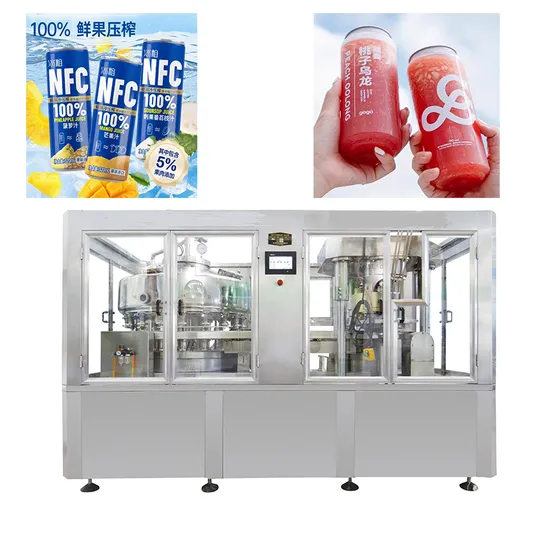

Aluminum can drink filling and sealing machine add liquid nitrogen Product Description
This machine is developed on the basis of digestion and absorption of domestic and foreign (non-gas) cans filling and sealing machine (sealing machine). According to the principle of atmospheric pressure filling, when empty tank enters the lifting tray through the pulley, the filling valve and empty tank are aligned, the empty tank is lifted and sealed, and the valve opening of filling valve is opened automatically. When the filling liquid level blockades the return pipe opening of the valve, the filling stops. The canned cans are sent to the sealing head by hook chain, and the lid is sent to the filling mouth by the cover feeder and the pressure head. When the supporting mechanism is lifted, the pressure head tightens the cans. The sealing wheel first pre- sealing and then solid sealing. After the cans are sealed, the beating head of the cover mechanism is pushed out, and then the cans are transported out of the cans.
Flow chart: Automatic Empty Can Unloader-----Empty Can Washer-----Combination Machine for Filling and Sealing with Liquid Nitrogen Feeder------Continuous Spray Sterilizer------Air Knife Dryer------Internal Pressure Testing Machine------Spurt Code Machine-----Automatic Packing Machine Main Technical Parameters:
this machiney is designed for juice, fruit drink, coconut juice, no gaseous beverage etc add liquid nitrogen

Model	XWXD400
Production capacity	80~400 cans/min
Air pressure	0.6mp
Power	5.2kw
Weight	2500kg
Dimension	8000×4000×3300mm

Model	XWXD400
Production capacity	0~400 cans/min
Use scope	For each tank type customization
Weight	150kg
Dimension	4000×500×2300mm

Model	XW12-4	XW18-4	XW24-6
The number of sealing head	4	4	6
The number of filling head	12	18	24
Production capacity	30~150cans/min	30~250cans/min	30~300cans/min
Can Diameter	Ф52.5~99mm	Ф52.5~99mm	Ф52.5~99mm
Can Height	39~160mm	39~160mm	39~160mm
Power	7.5kw	7.5kw	7.5kw
Weight	3100kg	4000kg	5000kg
Dimension	2750×1450×1900mm	3050×1700×1900mm	3050×1700×1900mm

Model	XWYDJ
Production capacity	30~400 cans/min
Can diameter	Two aluminum cans, plastic bottles, glass bottles, etc.
Can heigh	380V 50HZ
Power	200w
Weight	100kg
Dimension	1000×600×2000mm

Model	XWPS
Production capacity	customizable
Sterilizing temperature	≤98ºC
Sterilization temperature area	1 ~ 8 individual(the actual temperature individual is determined according to product characteristics)
Steam pressure	0.4Mpa
Dimension	Depending on production capacity

Mode	XWCG
Productivity	30-400 cans/min
Can diameter	52-99mm
Can height	≤300mm
Air knife	4PCS(Can be increased as needed)
Power of the fan	5.5KW
Dimensions	1000×700×1800mm(Can be adjusted as needed)
Weight	250kg

Rated input voltage:	220VAC-50Hz +/-10%	Current:	<=5A
Humidity:	Relative humidity 0%-100%	Noise:	Continuous noise <=78dB (A)
Working altitude:	Can work at an altitude of 6050 meters	Total Weight:	150KG
Ability:	Speed 600 cans per minute	Applicable pressure range for detection:	0-6bar
Static detection accuracy:	0.01bar	Accuracy:	99.99%
Dynamic accuracy better than 0.05bar		The missed kick rate is less than 0.01%
Sensor accuracy better than 0.01bar

Use voltage	AC220V 50Hz
Whole machine power	3.5K W
Use of air pressure	≥0.5~0.6MPa
Gas consumption	0.5m³/min
Packing capacity	12~15 boxes minutes ≥720 pieces/hour
Applicable bottle type	Φ50~100mm(Made to sample)
Applicable bottle height	H50~150mm(Made to sample)
Package specification	On-demand
Overall machine size (including non-powered roller belt)	L74580mm W2800mm H1600mm

About NewWay:
Zhejiang NEWWAY Food Machinery Co., LTD is located in Zhoushan city, the Oriental Pearl City Thousand Island of China, is located across the sea from the Haitian Buddhist Mount Putuo. It's 16 kilometers away from Mount Putuo airport. There are multiple flights back and forth to Shanghai International Airport every day and 100 kilometers away from Ningbo Lishe Airport, the transportation is very convenient.
At present, the company is mainly engaged in tinplate, aluminum, plastic and paper packaging of beverage, can filling machine and can sealing machine, as well as the design and manufacture of matching products. To undertake the whole production line of cans of beverage (including steam, without steam), canned and sealed production line of tomato sauce, canned rice porridge, etc. The company adopts CAD, CAM for product design.
Our company rely on strong technical force and effective technical guarantee, flexible business philosophy and quality service, advanced manufacturing technology, keep improving product quality and good reputation, for the majority of new and old customers service, sincerely welcome friends from all walks of life to visit.
Advantage:
NewWay Food Machinery optimize the cost of production efficiency and reduce investment costs for customers through technical innovation, because of stricter requirements for quality in the industry, stricter internal control in production management, and engineers are required to make full use of CAD and CAM for product design during product design, and ensure that mechanical parts use internationally renowned brands, the process and quality control responsibilities are clear, and the customer is fully involved. Zhejiang NewWay Food Machinery Co., LTD., look forward to cooperation with you, to create value for you.
Related Products:
Certificate:
Packing & Delivery:
FAQ:
Q1: Which city are you in? How can I get to your factory? Are you a trading company or factory?
A1: We are in Zhejiang city, one hours driving from Ningbo airport. We are factory. Manufacturing mainly beverage filling and sealing machines. Our engineers have 20 years of manufacturing experience.
Q2: Why choose your machine?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, If the specially designed machinery will be slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.
Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
Any more questions, please feel free to contact me!
