High Quality Belt Punching Pressed Steel Pipe Conveyor Roller Bearing Housing

Product Description

High Quality Belt Punching Pressed Steel Pipe Conveyor Roller Bearing Housing
Product Features:
Roller Model: TK, TKII, DTII, TD75
Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,
6309, 6310.etc.
Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,
194, 219,etc.

Material:
1. Bearing Housing: Carbon steel SPHC from Baosteel Group
2. Our Sealing/Inner Sealing: ABS

Roller Model:	TK, TKII, DTII, TD75
Bearing Type:	6203,6204,6205,6206,6305,6306,6307,6308,6309, 6310.etc.
Roller Diameter(mm):	63,76,89,102,103,108,114,127,133,159,165,176,194, 219,etc.
Length(mm):	190, 200, 240, 250, 305, 315, 375, 380, 455, 465, 525, 530.
Thickness(mm):	2.5, 3, 3.5, 4, 4.5, 5, 6
Shaft diameter(mm):	20, 25, 30, 35, 40,45,50
Bearing size:	6104, 6204, 6205, 6305, 6206, 6306, 6307, 6308
Bearing Housing type:	pressed housing, cast iron bearing housing, polymer housing
Seal:	Multiple labyrinth seal, Waterproof,dust proof,corrosion resistance.

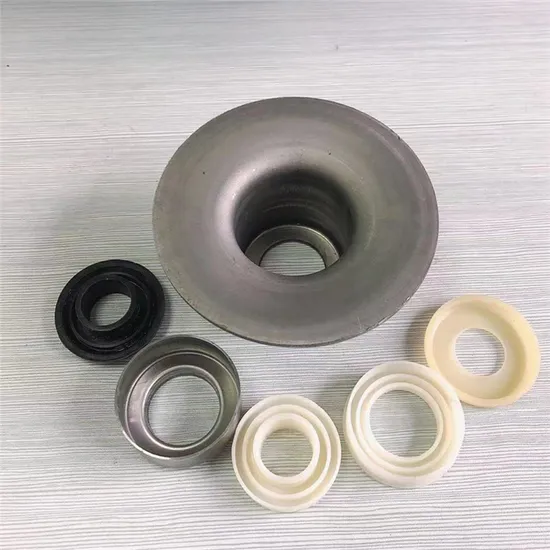

Product (TK Series Bearing Housing and Seals):
Our punch press bearing housing and the relative seals have the advange of high precision, good gloss, without stretching
scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best steel maker in China, so quality is
guaranteed.
https://chinabearinghousing.en.made-in-china.com/product-list-1.html
FactoryShow
Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years, and is
approved by ISO9001-2008 quality management system. We have 4 advanced production lines which make us the
largest and most professional bearing housing maker in China.

Packaging & Shipping Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course, we could also
packed the items as requested.
Application:
Our bearing housing and seals are spare parts of idler roller which is used in mining, port, cement, power plant and any
other bulk material handing project.
CustomerVisiting Our business has been extended to over 30 countries over the world such as Russia, USA, Netherlands, Chile, Mexico,
Colombia, Thailand, Indonesia.,etc.

Welcome to visit our factory, and we promise to provide you with our best products and services.

Why choose us 1.Material:Our raw material is SPHC from Shanghai BaoSteel Company, its
precision tolerance reaches M7.
2.Inner sealing and protective is made from PA6.
It has strong wear and abrasion resistance and high lubricity
3.Female and male labyrinth are made from POM.
They have strong wear and abrasion resistance ,high lubricity and high strength.
4.The material of cover cap is SPCC.
Its yield strength and tensile strength is excellent.

Our Service
A.Your logo can be presses onto the goods.
B.The non-standard housing can be produced according to your drawing.
C.The samples and drawings can be offered for your reference.
D.The most competitive price can be offered according to your situation.
E.Your secret documents or information will be a secret to the third one .

Flexible Sample Service:

We usually pack bearing housing samples with cartons and send them with fast express shipping,
such as DHL, FedEx, TNT etc. Samples are free and you only need pay the postage.
Therefore, you can get samples very soon.

---
