Chinese Corn Harvester Modernization Harvesting-Machine Harvester Machine 160 HP Corn Maize Harvester Farm Machine 4WD

Product Description

Product Description
Good price Corn cob harvesting machine farm harvest machine 2/3/4/5/6 rows corn harvester

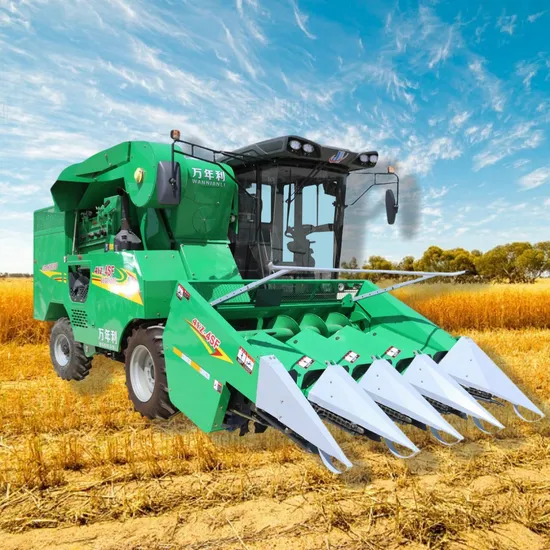

Jianghua 4YZ-4SF Corn harvester is a machine that used to pick the Corn cob. The combine harvester combines three separate operations: finish picking, peeling and returning the stalk to the field at one time when the corn is mature.
A corn harvester was used to pick ears under the growing condition of corn. Under the action of picking roller and picking board, the stalk was pulled off and The maize cob wsa transported to the peeler for peeling. At the same time, the rotate cutter to cut the straw from the root and smash it back to the field.
Product feature
1. strong power,flexible and efficient
With 160 horsepower engine, full of power; Short wheelbase design for front and rear wheels,Small turning radius,flexible steering, high operating efficiency
2. Harvest on the slope, handle it well
Four-wheel drive, short body, low center of gravity.The slope harvest is safer and more passable.
3. Stable, reliable and durable
The chassis is made of high-strength materials, Enhanced travel gearbox for higher reliability.
4. Easy to operate and comfortable to drive
Optimized control mechanism,steering wheel Angle is adjustable,Extended seat, driving experience is more comfortable.
Product Parameter

No.	Model	Unit	4 YZ- 4 SF
1	Number of rows	pcs	4
2	Power	KW/HP	118KW/160HP
3	Dimension	mm	6750*2740*3030
4	Row width	mm	520
5	Driving model	/	4*4
6	Tyre size(F/R)	/	F:11.2-20 R:10.0/75- 15.3
7	video surveillance	/	Y
8	Axle base	mm	2500
9	Wheel base(F/R)	mm	1820/1800
10	Transmission type	/	Mechnical+HST
11	Weight	kg	5780
12	Working efficiency	hm2/h	0.5~1.2
13	Grain Tank Capacity	m³	2.1m³
14	Qty of stripping rollers	pcs	16
15	Max. unloading height	mm	2430
16	Engine structure type	/	In-line, water-cooled, supercharged intercooled, four-stroke, high pressure common rail

Company Profile
Workshop show

Productive process
Exhibition
Packaging & Shipping
After sales service 24-hour remote on-line service We owns an extraordinary service team. We're realizing the localized overseas service, which covers digitalized service&training methods, 24-hour remote on-line service, and on-site service and serve our customers seamlessly.
SIMILAR PRODUCTS
FAQ Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Shanxian County,Heze City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2:We can provide technical support and online training.
Q3:How about your price?
A3:We sell every machine at a low pirce for the same quality, we leave the maximum profit to customers.
Q4:Can you provide spare parts for free?
A4:Of course
Q5:It can be customized?
A5:Of course,you only need to provide customized requirements
Q6:Can we have some samples?
A6:Of course. We understand the importance of testing some samples before placing an order.
Q7:What is the MOQ?
A7:Normally the MOQ is one set.There are some exceptions to this requirement because of the type of machines.
Q8:What's the payment terms?
A8:For the samples, 100% will be paid before the start of production. For normally orders, at least 30% deposit +70% balance (balance payment before shipment)
Q9:What is your delivery time?
A9:Normally within 15days,if it is high season and the order is very big,it needs 30days.

---
