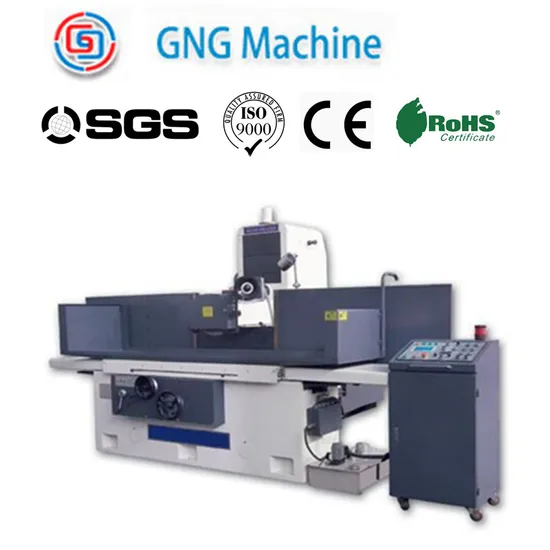

| SG column moving surface grinder | | |
| Item/Model | Unit | SG50160AHR/AHD |
| table size(WxL) | mm | 500x1600 |
| max. grinding(WxL) | mm | 500x1600 |
| max. distance between spindle center line and worktable surface | mm | 600 |
| magnetic chuck size (optional equipment) | mm | 500x800x2 |
| speed of table longitudinal movement | m/min | 5-25 |
| wheel head cross moving | auto feed | mm/t | 0.5-20 |
| rapid speed | m/min | 1.25 |
| hand wheel feed | mm/div | 0.02 |
| wheel head vertical moving | auto feed | mm/t | -/0.005,0.01,0.015,0.02,0.03,0.04(only for AHD model) |
| rapid speed | mm/min | 230 |
| feed of handwheel | mm/div | 0.002 |
| wheel | speed | rpm | 1450(50Hz),1740(60Hz) |
| | size(ODxWxID) | mm | 355x(20-50)x127 |
| motor of spindle | kw | 7.5 |
| max. loading capacity of worktable with chuck | kg | 880 |
| total rated power | kw | 12 |
| height of machine | mm | 2390(include the packing base) |
| floor space(LxW) | mm | 7120x2550 |
| gross weight | kg | 6000 |
