Product Details
Product Description
Product Description
Dongfeng 4T wrecker towing truck with crane for sale, good price Dongfeng brand 4T road wrecker towing truck with telescopic crane boom for sale
Customized dongfeng 4*2 LHD 4T road wrecker towing truck with telescopic crane adopts dongfeng 2030mm single row driver cab, 4400mm wheelbase, YCY30165-60 Yuchai 165hp diesel Euro 6 engine, 6 speed manual gearbox, 2.2tons front axle/5.5tons rear axle, 245/70R19.5 tires, ABS+ air conditioner, etc.
The length of the flatbed for the dongfeng wrecker tow truck is 5600mm; while the width of the flatbed is 2300m. Choose to install 4T telescopic/knuckle crane boom.
The standard devices of dongfeng 4tons road wrecker tow truck with 4T crane boom is as below
1,4 tons loading capacity for the upper part/flatbed
2, 4T hydraulic winch and 20m length wire rope
3, 4tons loading capacity of Retractable Rear Lift Arm (choose to install)
4, auxiliary wheels*1 sets
5, yellow color alarm light
6, special binding belts*4sets
Main technical parameters of Dongfeng 4T wrecker towing truck with telescopic crane boom is as below.
Overall parameters
| Product name
| Dongfeng 4T flatbed wrecker tow truck with crane for sale
|
Manufacturer
| Chengli Special Automobile Co., Ltd.
|
Product model
| CLW5120TQZ6
|
Total mass(kgs)
| 11995
|
Curb mass(kgs)
| 8000,7600
|
Overall dimension (L*W*H)(mm)
| 8300×2350,2480×3250,3380
|
Chassis parameters
| Driver cab
| Dongfeng 2030mm single row driver cab
|
Approach/departure angle(°)
| 21/10
|
Front/rear suspension(mm)
| 1180/2720
|
Axles nos.
| 2
|
Wheelbase(mm)
| 4400
|
Axle load(kgs)
| 4350/7645
|
Max speed(km/h)
| 103
|
Tire specification
| 245/70R19.5*6
|
Steel spring
| 12/12+9
|
Front/rear tread(mm)
| 1890/1720
|
Engine model
| YCY30165-60
|
Fuel type
| Diesel
|
Emission standard
| Euro Ⅵ
|
Gearbox
| 6 speed gearbox, manual
|
Upper part parameters
| Flatbed dimension(L*W)(mm)
| 5600*2200
|
Hydraulic winch
| 4tons
|
Operation way
| Bilateral linkage operation
|
Loading capacity of the flatbed
| 4tons
|
Retractable Rear Lift Arm
| 2.5tons loading capacity
|
Wire rope
| 20m length
|
Special binding belts
| 4 sets
|
Yellow color alarm light
| Yes
|
Crane boom
| Choose to install 4tons/5tons telescopic/knuckle crane boom
|
If you're interested in our wrecker towing truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

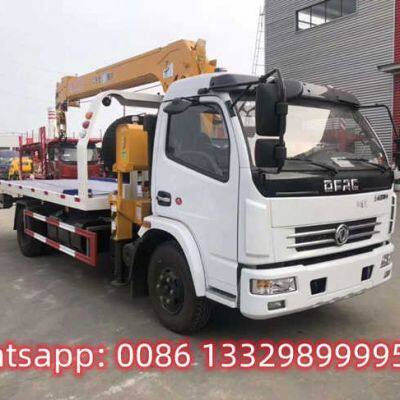

More pictures of road wrecker towing truck is as below.
The tow truck is also called road tow truck, road wrecker, wrecker tow truck, wrecker, towing truck, breakdown truck, wrecker truck, recovery truck, road rescue vehicle,
etc.
Our flatbed tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch,
tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
The rollback tow truck can hoist, lift, draw and be with other special functions, mainly used in
highway, garage and city road obstacle cleaning.
As a china tow truck manufacturers , our rescue vehicle can meet all your demand. Right hand rollback tow truck, left hand drive rollback tow truck, 4x2 wreckers, 6x4 wreckers, 8x4 tow wrecker trucks,etc. In wrecker types, we produce plat form tow truck, under lift wrecker truck, rotator tow truck, full landing rollback tow truck, double flatbed wrecker truck, etc.
the technical advantages of CLW Brand wrecker towing truck as below.
1. small angle of flatbed to ground, easy for broken car to be on it.
2. Thick good quality checker plate platform, long service time, skid-proof
3. Adpot Italy imported special balance valve.
4. Operate on both sides of the truck and remote is available.
More information, please contact Ms. Anita. The hot sale line is 0086 13329899995.
>>
