| Negotiable | 1 Set (MOQ) |
| Feature | |

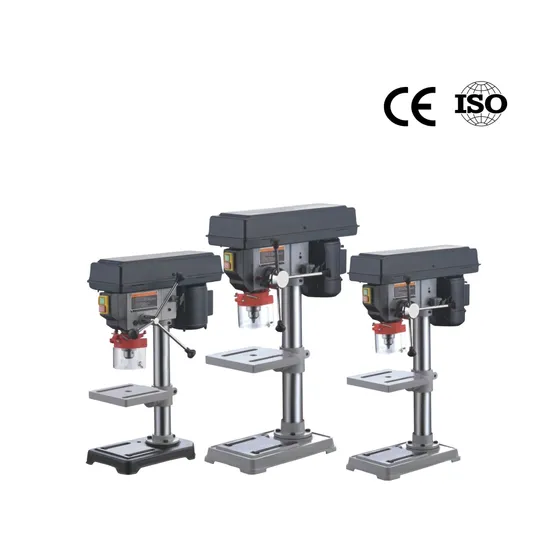

| 13mm (1/2'') max. chuck capacity. 200mm swing. 5 spindle speeds. Optional chuck guard and micro switch for CE requirement. |
| Model | DP20013A |
| Drill capacity | 13mm |
| Chuck capacity | 13mm |
| Swing | 8" (200mm) |
| Spindle taper | B16 |
| Speed range (50Hz) | 5 (500-2500rpm) |
| Speed range (60Hz) | 5 (620-3100rpm) |
| Spindle travel | 50mm |
| Column diameter | 48mm |
| Rack & pinion | No |
| Base size | 280x180mm |
| Table size | 165x165mm |
| Motor | 300W |
| Overall height | 580mm |
| N.W./G.W. | 15/17kg |
| Packing size | 470x240x350mm |
| Quantity for 20GP | 850pcs |
| Standard Accessories | Optional Accessories |
| Drill chuck | Copper motor |
| Wrench set | Chuck guard |
| Aluminium motor | Emergency stop |
| Keyless drill chuck | |
| Vice |
