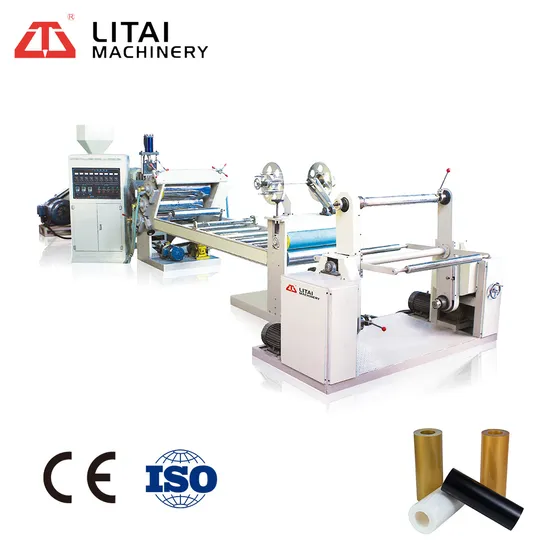

Best Selling Single Layer PP Stationery Sheet Extrusion Line Plastic Box Making Machine

Product Description

Product Parameters

Model	TJ-670
Suitable Sheet	PP,PS
Max. Sheet Width	670mm
Sheet Thickness Range	0.3-2.0mm
Screw Rod Dia.	110 mm
Screw L/D ratio	30:1
Main Motor Power	45kw
Max. Output	160kg/hr
Rated Power	110kw
Power Supply	AC 380V,50Hz, Three-phase , Four-wire
Dimension	L11000xW2000xH1800mm
Weight	About 5.8T

Product Display


Product Process
APPLICATION AREA
The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are
abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated.
Low resistance force in die head extruding channel makes sheet thickness evenly, the internal spiral
tank in three rollers ensures an effective cooling and it is easy to change and install net changer with
the hydraulic pressure unit, no need to stop machine. The machine extrudes PP/PS granule to PP/PS
sheet with single color, which is used for producing plastic products by plastic thermoforming
machines, like cups, food container, trays, dishes, bowls, lids, etc.
Company Profile
Exhibition
Transport Packaging
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.

---
