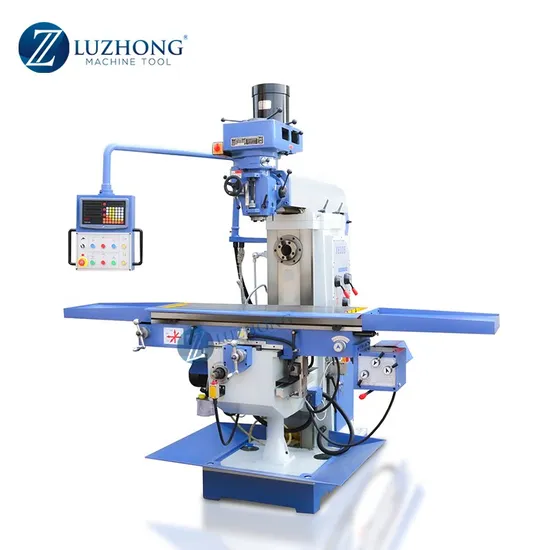

Universal Milling Machine X6336 Turret Milling Machine with Power Feed

Product Description

Universal Swivel Head Milling Machine X6336 Turret Milling Machine With Power Feed Product Description
Product Parameters
Product main technical specifications:

SPECIFICATIONS	Units	X6336
Table size	mm	1500*360
Table travel	mm	1000/320/450
T slot(number-width*pitch)	-	3-18*80
Spindle taper	-	IS040 7:24
Horizontal spindle taper	-	IS050 7:24
Spindle speed range(steps)		50HZ:65-4500(16) 60HZ:80-5440
	rpm	opt. (variable)65-4000
Horizontal spindle speed range(steps)	-	60-1800 (12)
Spindle travel	mm	127
Spindle feed range(steps)	mm	0.045,0.086,0.142 (3)
Distance between spindle nose and table surface	mm	140-590
Distance between horizontal spindle axis and table surface	mm	0-450
Main motor power	kw	3.7( V)/4( H)
Head rotation (left - right)	o	±90°
Head rotation (front - rear)	o	±45°
Machine weight	kg	2400
Overall dimension	mm	2600*2200*2550

Detailed Photos
Company Information

Contact Us
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
