PA/PE Blowing Film Extruder Plastic Nylon Blown Film Machines

Product Description

Product Description
MD-H HDPE FILM BLOWING MACHINE
1. Top quality film blowing machine
2. High quality products
3. Quality first, customer first

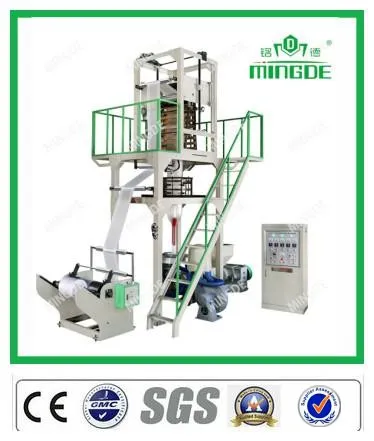

HDPE Plastic Film Blowing Machine
Introduction:
Its extruder, cylinder and screw are made of quality alloy steel which have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like LDPE, HDPE and LLDPE, widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest bags.
Usage:
The lines are designed developed by our corporation according to market need, they reach the advanced levels
In the 90s, come up with analogous lines in home. It is optimum designed on the trounds of preference of analogous
Lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness packaging
Films, film has good insulation, for instance holding temperature, anti-humid, anti-freeze, anti-rain, anti-rost, insulation oxygen,
Oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meats, salt vegetables, fresh milk, drink and so on.
Option Device: Auto Loader Corona Automatic air supplier

Model	MD-H45/50	MD-H55	MD-H60	MD-H65
Suitable Material	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE
Max Film Width(mm)	600	800	1000	1200
Film Thickness(mm)	HD:0.008-0.08	HD:0.008-0.08	HD:0.008-0.08	HD:0.008-0.08
Max Extrusion Output HD	30/40kg/hr	50kg/hr	60kg/hr	80kg/hr
Extrusion Unit
Gear Box	133/146	173	173	200
Screw Diameter(mm)	φ45/50	φ55	φ60	φ65
Screw's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Cooling Fan	200W*2	200W*2	200W*2	200W*2
Thermo Control (zone)	3	3	3	4
Driving Motor (kw)	7.5/11	18.5	22	30
Extrusion Die
Die Size (mm)	HD:φ60/80	HD:φ80/100	HD:φ100/120	HD:φ120/150
Screen changer	Standard manual	Standard manual	Standard manual	Standard manual
Thermo Control(zone)	2	2	2	2
Air Ring	φ620	φ620	φ620	φ760
Cooling Blower(kw)	1.5	2.2	2.2	3
Take-up Unit
Roller Width(mm)	φ138*650	φ138*850	φ138*1100	φ138*1300
Embossing roller width	550mm	750mm	1100mm	1200mm
Take-UP Motor (kw)	0.75	1.1	1.1	1.5
Take-UP Speed(M/min)	10-60	10-60	10-60	10-60
Height adjustable type	700mm	700mm	700mm	700mm
Winding Unit
Type of Winder	Surface friction winder	Surface friction winder	Surface friction winder	Surface friction winder
Roller Width (mm)	700	900	1100	1300
Winding Motor(KW)	6	10	10	16
Winding Speed(M/min)	10-60	10-60	10-60	10-60
Voltage	380V/50HZ/3PHASE	380V/50HZ/3PHASE	380V/50HZ/3PHASE	380V/50HZ/3PHASE
Cover Dimensins	4.5*2*4.3m	4.5*2.2*4.5m	5*2.5*4.8m	5.5*2.8*5.2m

---
