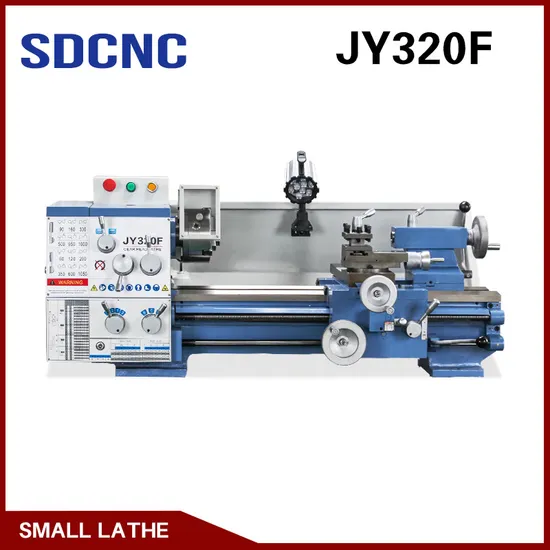

Sdcnc Jy320f Mini Lathe Turnstile Brake Turning Tool Turret EDM Lathe Machine

Product Description

Product Application This machine can turning ,drilling round bar work piece,process out circle ,inner bore ,cutting ,threading , drill hole ,reaming ,popular with small Workshop ,development,DIY hobby ,school for training .
Main Features
1) most economic ,widely useful household machine.
2) V-way bed is precision ground,bed surface super hardened.
3) Spindle is supported by precision tapered bearing.
4) Lathe headstock is constantly oiled during operating.
5) Longitudinal axis power feed for threading .
1.most economic ,widely useful combination machine .
2.V-way bed is precision ground
3.Spindle is supported by precision tapered bearing
4.Lathe head stock is constantly oiled during operating
5.Belt drive mill head get quiet operation
6.Mill head can be titled +-90 degree
7.Power longitudinal feed follow threading
8.Adjustable gibs for slide ways
9.Equipped with lead screw cover and work table
10.Change gear has large feed and threading function
11.Tail stocks can be off set for turning tapers
Product Parameters

ITEM / MODEL		UNIT	JY320F	JY3600G	C6232A	C6236A
MAIN MACHINE	Swing over bed	mm	Ф320	Ф360	Ф330	Ф355
	Swing over carriage	mm	Ф200	Ф240	Ф195	Ф220
	Swing over gap	mm			Ф476	Ф500
	Width of bed-way	mm			186
	Distance between centers	mm	600	800	1000
SPINDLE	Taper of spindle		M.T.5		M.T.5
	Spindle diameter	mm	Ф38		Ф38 (Option B type -- 51mm)
	Step of speed		12		8
	Range of speed	rpm	60-1600	80-2000	70~2000	84-1850
THREAD AND FEED SYSTEM	Metric thread	mm	0.2-7 (22 kinds)		0.4-7 (26kinds)
	Inch thread	T.P.I	2-48 1/n" (45 kinds)		4-56 (34kinds)
	Longitudinal feeds	mm/r		0.1-1.4	0.052-1.392	0.091-2.533
	Cross feeds	mm/r		0.045-0.6	0.014-0.38	0.025-0.69
TAILSTOCK	Barrel travel	mm	80	100	95
	Taper of center		M.T.3		M.T.3
POWER	Motor power	kw	1.1 (1.5HP)	1.5(2HP)	1.5(2HP)
SHIPPING SIZE	Machine(L×W×H)	mm		1480x720x730	1920×760×760
	Weight (N.W / G.W)	Kg	320	350/380	505/565

---
