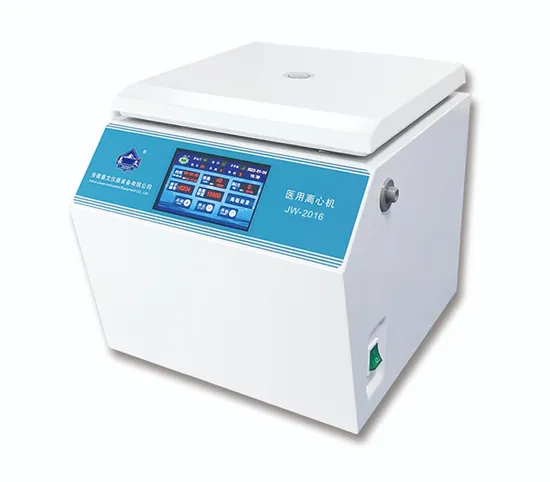

Large-Screen Laboratory Thermostat with Touch Screen Operation

Product Description

Product Description
Large screen true color LCD, full touch screen operation interface; Microcomputer control, no carbon brush AC frequency conversion motor drive, high speed accuracy, low noise; Programmable operation, a variety of speed choice; Centrifugal force and speed can be independently set and displayed on the same screen; It has DCT [Differential Centrifugation Technology] "differential centrifugation" application technology.
Widely used in: teaching, scientific research, biochemical products, medical inspection, food safety, agricultural product testing, animal husbandry and aquatic testing, microbiology, molecular chemistry, environmental protection, quality inspection and other industries.
Machine characteristics:
Microcomputer control, large screen true color LCD display, full touch screen operation interface; Direct setting: working procedure, centrifugal force, speed, centrifugal time,
Speed up and down and display on the same screen as the rotor type LCD
No carbon brush AC frequency conversion motor drive, using a special drive module to ensure the reliability of the circuit
Double door lock system, automatically lock the door after starting, to ensure safe operation
20 kinds of work program selection, users can freely program, call its set working parameters, easy to use, improve work efficiency
15 kinds of acceleration /15 kinds of deceleration options, users can arbitrarily set one group of speed up and down according to sample requirements
With fixed speed timing (at set rpm), start timing two functions, the point is instantaneous centrifugal (short spin) function
Differential centrifugation: Reserve 5 differential centrifugation procedures, users can set according to demand
Double-layer steel structure, centrifugal chamber anticorrosion treatment to avoid corrosive substances
Automatic balance, unbalanced protection; Error or imbalance alarm signal prompt, and automatic stop
Parameters can be arbitrarily changed during operation without stopping
The fastest lifting speed time ≤25s
SOFT has soft brake function, which can effectively prevent sample resuspension, protect sensitive samples, and multi-stage damping damping design to ensure sample centrifugal effect
Countdown function: countdown in seconds, real-time display of remaining working time
Can be customized 485 communication interface, remote control [optional]
Sunken exhaust channel to prevent aerosol pollution during centrifugation
JW-2016(configuration):

Model	JW-2016
Max Speed	6000rpm	(Support power)	AC220V 50Hz 10A
Max. Rcf	5502xg	(total power)	400W
Speed accuracy	±10rpm	(total noise of centrifuge )	<=50dB
Timed range	1s~99h59min59s/spot (instantaneous) centrifugation	( ××) (Package Size(W*D*H))	540x425x400mm
Noise	<=50dB	Weight)	47kg
Temperature rise of test solution	Temperature rise of test solution <10ºC for 20 minutes of operation	Maximum lift time	<=18s

JW-2016(Rotor configuration):

(No.)	(Rotor)	(volume)	(Speed)(rpm)	(Centrifugal force)(xg)
1	NO1: (Horizontal rotor)	100ml x4	5000	4500
		Adapter: 100mlx4 50mlx4 15ml [tip base] x 12 5/10ml [vacuum tube] x16
2	NO2: (Low-speed angular rotor)	10/15ml x12	6000	5502
		Adapter: 5ml optional
3	NO3: (Low-speed angular rotor)	50ml x6	6000	5502
4	Mold reaction plate	96x2	5000	3530
		96x2 x2	5000	3530

---
