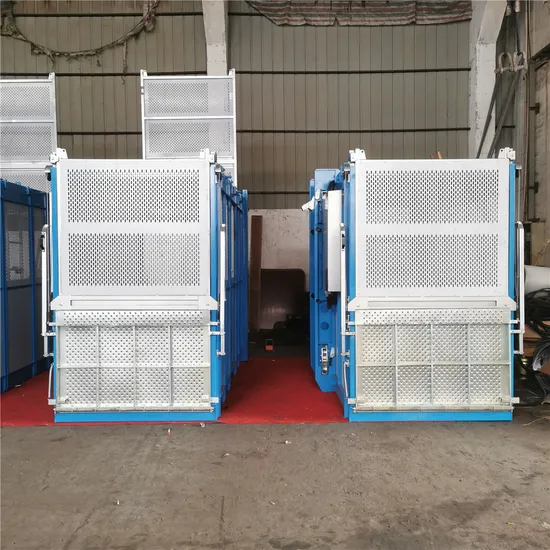

Rack and Pinion Building Hoist Construction Elevator Sc100 Lift

Product Description

Constructiom hoist climbs up along the mast section driven by electric hoist, with 2000kg capacity each cage. By using the frequency conversion device, the mechanical wear is greatly reduced. It is widely used in construction projects, such as industrial and residential building projects, bridge construction, large chimney construction buildings and shipping building industry.

Parameters:

Model Low speed	SC100TD		SC200TD		SC270TD	SC320TD
Rated load (per cage)	1000kg		2000kg		2700kg	3200kg
Lifting speed	36m/min		36m/min		36m/min	36m/min
Cage diamension	3.0m(L)*1.3m(W)*2.5m(H) or customized
Motor power	2*11kw 2*2*11kw		3*11kw 2*3*11kw		3*15kw 2*3*15kw	3*18.5kw 2*3*18.5kw
Mast section	650mm(L)*650mm(W)*1508mm(H)
Lifting height	100M
Cage	Single/ Double

Model Medium speed	SC100GZ		SC200GZ		SC270GZ	SC320GZ
Rated load (per cage)	1000kg		2000kg		2700kg	3200kg
Lifting speed	0-63m/min		0-63m/min		0-63m/min	0-63m/min
Cage diamension	3.0m(L)*1.3m(W)*2.5m(H) or customized
Motor power	2*15kw		3*18.5kw 2*3*15kw		3*22kw 2*3*18.5kw	2*3*22kw
Mast section	650mm(L)*650mm(W)*1508mm(H)
Lifting height	100M
Cage	Single		Single/ Double	Single/ Double		Double

Model High speed	SC100G		SC200G
Rated load (per cage)	1000kg		2000kg
Lifting speed	0-96m/min		0-96m/min
Cage diamension	3.0m(L)*1.3m(W)*2.5m(H) or customized
Motor power	2*2*22kw		2*2*22kw
Mast section	650mm(L)*650mm(W)*1508mm(H)
Lifting height	100M
Cage	Double

---
