China Hydraulic Radial Drilling Machine Z3050X16/1

US$9,000.00
1 set
US$8,700.00
2 set
US$8,400.00
3+ set

Basic Info.

Model NO.
Z3050X16
Controlling Mode
Artificial
Number of Shaft
None
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Drilling Capacity
50mm
Distance Spindle Axis to Column
350-1600mm
Diameter of Column
350mm
Spindle Taper
Mt5
Spindle Travel
315mm
Spindle Speeds Range
25-2000mm
Spindle Speeds Series
16
Dimension of Worktable
630X500X500
Main Motor Power
4kw
Overall Size
2500X1060X2650
Transport Package
Plyw/Case
Specification
CE
Trademark
UNI-TECH
Origin
Shandong
HS Code
84592900
Production Capacity
80PCS/Per Month

Product Description

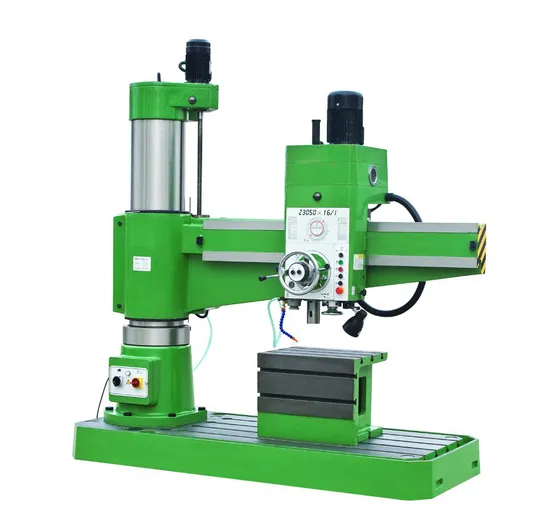

China hydraulic radial drilling machine z3050x16/1
Main features:
1. With wide range of speed and feed, with manual \power and fine feeds. The feed of machines are very easily engaged and disengagedat any time
2. With safe and reliable feed safety machine, all parts easy operation and change
4. All controls centralized on the head stock easy operation and change.Clamping for assemblies and speed change of spindle achiered by hydraulic power, cmle is sensitna owet nelile
5.Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.
Model Z3050×16/1 Z3040×16/1 Z3080X25
Max. Drilling capacity (mm) 50 40 80
Distance spindle axis to column generating line (mm) 350-1600 350-1600 500-2500
Diameter of column (mm) 350 350 550
Spindle taper MT5 MT4 MT6
Spindle travel (mm) 315 315 450
Spindle speeds range (r/min) 25-2000 25-2000 16-1250
Spindle speeds series 16 16 16
Range of Spindle feeds (r/min) 0.04-3.2 0.04-3.2 0.04-3.2
Spindle feeds 16 16 16
Max. Distance spindle nose to working surface of base (mm) 320-1220 350-1250 550-2000
Dimension of worktable (mm) 630×500×500 630x500x500 1000×800×560
Dimension of base (mm) 2400×1000×200 2400x1000x200 3530×1400×300
Overall Size (mm) 2500×1060×2650 2500x1060x2650 3730×1400×3790
Power of Main motor (KW) 4 3 7.5
G.W/N.W (kg) 3650/3400 3650/3400 15000/11000
Packing dimension (cm) 260x112x260 260x112x260 416×165×248/
382×63
