Basic Info.
Model NO.
zm serious Concrete Mixing Truck
Type
Concrete Mixing Truck
Machining Process
Hydraulic
Vibrating Amplitude
2.6mm
Transmission Type
Automatic
Emission Standard
Standard
Actual Mixing Capacitytm3
1
Mixing Drum Capacitytm3
1.5
Angle of Inclinationt0
16
Rotational Speedtr/Min
0-14
Mixing Drum Vanes
Two Sets Helical Vanes and Assisted Vanes
The Slump of Concretetmm
70-260
Reduction Box/Speed Ratio
Hj220
Transport Package
Carton Box, Plastic Bagsor as Your Payment
Production Capacity
1000 Sets Per Month
Packaging & Delivery
Package Size
60.00cm * 30.00cm * 30.00cm
Package Gross Weight
24.000kg
Product Description
Product Description

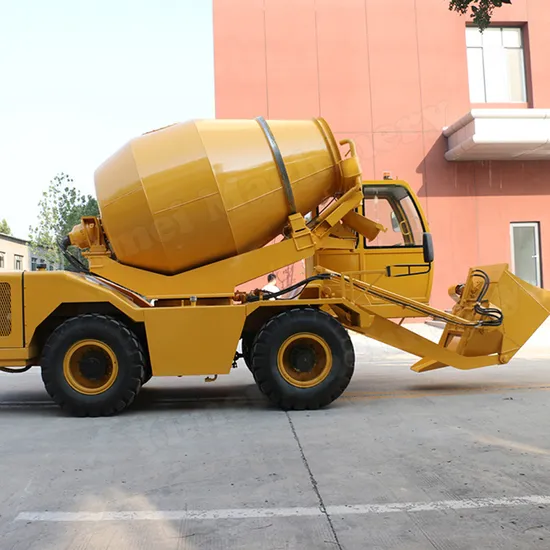

Introduction of Automatic Self Propelled Concrete Mixing Truck
Mobile Self Loading Concrete Mixing Truckis an on-site construction vehicle that combine feature with concrete batch processing equipment, concrete transport and concrete mixing station. This cutting edge machine will lead the concrete industry in next decade.
Put cement, sand and gravel into the drum and let the mobile concrete mixing station do the rest.
A small concrete station can easily formed by 2 mobile concrete mixing stations, 1 cement tank and 1 water tank.
Low upfront cost
Reduce transportation cost
Minimize labor cost
Maximize job efficiency
zmwm 21
Product Parameters
Fm3.5-3 Mobile Self Loading Concrete Mixing Truck
| Name | Item | Specification |
| Vehicle | Net | 8800kg |
| Gross | 16000kg |
| Transmission | Hydraulic |
| 4*4 |
| Brake | Hydraulic Brake |
| Front and Rear Independent System |
| Chassis | Off Road, China top brand axle |
| Distance of Front/Rear Wheelbase | 1905mm
|
| Wheelbase | 2155mm |
| Loader | Capacity | 0.6m³ |
| Control | Hydraulic |
| Tile Angle | 30% |
| Speed | High | 0-20km/h |
| Low | 0-9km/h |
| Min.Turning Radius | 6.5m/R |
| Tire | 16/70-20 |
| Dimensions(L*W*H) | 7011*2441*3310(MM) |
| Diesel Engine | Type | A8QW0 |
| Rated Power/rpm | 85KW/2200rpm |
| Max.Torque/rpm | 425N.m/1400rpm |
| Cylinder | 4-cylinder/4.836L |
| Bores | 108mm |
| Cooling Type | Water cooling |
| Fuel Consumption | 225g/kw.h |
| Starter | Electric |
| Emission Standard | China II |
| Mixing Drum | Drum Capacity | 3.5m³,14m³/hr. |
| Bank Angle | 16° |
| Rotation Speed | 10-16r/min |
| Angle of Drum Rotation | no less than 270° |
| Chute | Swing Angle | no less than 60° |
| Angle Control | Hydraulic |
| Size | Long:106cm |
| Short:40cm |
FM3.5-2 Mobile Concrete Mixer Truck
| Name | Item | Specification |
| Vehicle | Net | 7500kg |
| Gross | 15000kg |
| Transmission | Hydraulic |
| 4*4 |
| Brake | Hydraulic Brake |
| | Front and Rear Independent System |
| Chassis | Off Road, CARRARO axle |
| Distance of Front/Rear Wheelbase | 1905mm
|
| Wheelbase | 2155mm |
| Loader | Capacity | 0.6m³ |
| Control | Hydraulic |
| Tile Angle | 30% |
| Speed | High | 0-20km/h |
| Low | 0-9km/h |
| Min.Turning Radius | 6.5m/R |
| Tire | 16/70-20 |
| Dimensions(L*W*H) | 7011*2441*3310(MM) |
| Diesel Engine | Type | 4BTA3.9-C110 |
| Rated Power/rpm | 82KW/2200rpm |
| Max.Torque/rpm | 460N.m/1400rpm |
| Cylinder | 4-cylinder/3.9L |
| Bores | 102mm |
| Cooling Type | Water cooling |
| Fuel Consumption | 207g/kw.h |
| Starter | Electric |
| Emission Standard | China II |
| Mixing Drum | Drum Capacity | 3.5m³,14m³/hr. |
| Bank Angle | 16° |
| Rotation Speed | 10-16r/min |
| Angle of Drum Rotation | no less than 270° |
| Chute | Swing Angle | no less than 60° |
| Angle Control | Hydraulic |
| Size | Long:106cm |
| Short:40cm |
4 Cubic Meter Self Loading Concrete Mixer Truck
| Mixing System | Drum capacity of 4 cubic meters, the discharge opening height 1.8 meters |
| Production capacity | Concrete output: 4 m³/ cans, 12 m³ / h |
| Engine | Yuchai YC04122G, water-cooled, 4 cylinder / 4.836 litres, 85 kw / 2400 RPM |
| Xichai SDB075G, water-cooled, 4 cylinder / 4.836 litres, 85 kw / 2400 RPM |
| Transmission | Full hydraulic pressure drive, 4 wheel drive and two wheel steering, domestic axle |
| Walking speed | Low speed 9 km / h high-speed 20 km / h |
| Cab | Left-hand drive, anti-tilt, FOPS cab, front loading shovel |
| Hydraulic system | Domestic hydraulic systems, open loop for hydraulic transmission and drum rotation |
| Operating lever | Electronically controlled four-speed joystick |
| Bucket | 700 liters, hydraulic valve |
| Chute | Hydraulic adjustable angle, in order to increase the discharge length |
| Water supply system | Hydraulically driven self-priming pump, washing with high pressure water pump vehicle, electronically controlled self-priming pump, take 2 * 400 water per minute |
| Brakes | Air brake brakes, dual independent circuits |
| Tire | Construction machinery tires 16/70-20 |
| Power Systems | 24V |
| Tank | Fuel tank: 218 liters, hydraulic tank: 218 liters |
| Weight | 7100 kg |
| Dimensions | Length: 7.04 m Width: 2.6 m Height: 3.4 m |
| Measure | Electronic weighing, measuring water control, recipe controlled |
FM4.3 Concrete Truck Mixer
| Mixing Unit | Drum capacity 4.3 m3. Concrete output: 3.0 m3 per batch. The mixing unit is slewing hydraulically through 300° |
| Productivity | up to 4 batches per hour |
| Engine | YUCHAI YC4D85 water-cooled, 4cylinders. Rated power 60KW/2200rpm . |
| Transmission | 4 wheels drive,4 wheels steering. |
| Speed | Working speed from 0 to 9 km/h, road transfer from 0 to 20 km/h. |
| Driving Seat | Front cab on side of loading shovel. ROPS-FOPS type complete with double closing door. |
| Hydraulic System | Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 1 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type. |
| Joymix | All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick. |
| Loading Shovel | Capacity 400 liters, complete with hydraulic opening gate. |
| Chute | Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height. |
| Water System: | Self-contained. Hydraulic driven water pump, water meter. High pressure water pump & washing gun(on request). |
| Brakes: | Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake. |
| Tyres | 10.00-20-16 |
| Electric System | 24 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off. |
| Tanks | Water: 2x300 liters. Diesel: 100 liters. Hydraulic oil: 125 liters. |
| Chassis | Steel profile specially engineered for off-road operations. |
| Weight | About Kg.7500, equally distributed on both axles |
| Overall Dimensions | Long: 6.715M Width 2.28M High: 3.23M |
| Safety | Machine equipped with checking and block valves for maximum safety of the operator. |
FM2.5 Mini Truck Concrete Mixer
| Model | Fm2.5 |
| Mixing Drum Capacity | 2.5 Cubic Meter |
| Type | Movable, Self Loading, Mixing, Transporting |
| Function | Concrete, Sand, Fertilizer Compound, Wet Or Dry Feed Materias Mixing And Discharging |
| Productivity | Batch≤15mins, 4batchs/Hour |
| Engine | 6 Cylinders 110kw |
| Speed | High Speed: 22.4km/H; Low Spee:6.5km/H |
| Wheelbase | 2000mm |
| Tire | 10.00-20 (Project Machine Tire) 4 Pcs |
| | |
| Tank Spiral Blade | Double Helix Stirring With Diversion Was More Uniform.Left Feed Material ,Right Discharging |
| Mixing Drum Inclination | 16° |
| Discharge Chute | Discharge Chute High 1.6m, Parallel Steering Speed ≤ 3 R / Min, Steering Angle 270 ° |
| Tipping Chute | Adjustable Angle, 2-Segment Tipping Chute Can Be Dismantled, Can Expand The Discharing Length |
| Shovel | Shovel Capacity: 600l Discharge:Hydraulic Valve |
| Operation Handle | Electric Control Button Four-Way Guide Handle |
| Moving Hydraulic | Pump: Italian Or Chinese Origin |
| Speed Reducer | Fx300 |
| Water Supply | Hydraulic Driving Self-Primiing Pumps. |
| Washing | High-Pressure Water Pump Wash |
| Hydraulic Oil Box | Tankage200l, Summer:No68 Hydraulic Oil, Winter:No46 Hydraulic Oil, Very Cold Zone: No35 Hydraulic Oil |
| Water Tank Volume | 300l |
| Diesel Tank Volume | 112l |
| Weight | Complete Vehicle Kerb Mass 7000kg Total Mass 14200kg |
| Moving State Size | 5400*2530*4300mm |
| Shovel State Size | 7100*2530*3100mm |
| Alarm Lamp | Standard Configuration |
| Radio | Standard Configuration |
| Escape Hammer | Standard Configuration |
| Coatrack | Standard Configuration |
| Reversing Audio Cue | Standard Configuration |
| Headlight | Led Light |
| Taillight | Led Light |
| Forward Gear | Electronic Control |
| High And Low Speed | Electronic Control |
| Imported Hydraulic Pipe | Standard |
FM3.0-3 Cement Mixer Truck
| Model | FM3.0-3 |
| MIXING DRUM CAPACITY | 3 Cubic Meter |
| TYPE | movable, self loading, mixing, transporting |
| FUNCTION | concrete, sand, fertilizer compound, wet or dry feed materials mixing and discharging |
| PRODUCTIVITY | BATCH≤15MINS, 4BATCHS/HOUR |
| ENGINE | water-cooled,4 cylinders.93kw |
| SPEED | HIGH SPEED: 22.4KM/H; LOW SPEE:6.5KM/H |
| Wheelbase | 2000mm |
| TIRE | 10.00-20 (project machine tire) 4 pcs |
| | |
| TANK SPIRAL BLADE | Double helix stirring with diversion was more uniform.Left feed material ,right discharging |
| MIXING DRUM INCLINATION | 16° |
| Discharge Chute | Discharge chute high 1.6m, Parallel steering speed ≤ 3 r / min, steering angle 270 ° |
| TIPPING CHUTE | ADJUSTABLE ANGLE, 2-segment tipping chute can be dismantled, can expand the discharing length |
| SHOVEL | shovel capacity: 600L discharge:hydraulic valve |
| OPERATION HANDLE | ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE |
| MOVING HYDRAULIC | PUMP: Italian or Chinese origin |
| SPEED REDUCER | FX300 |
| WATER SUPPLY | HYDRAULIC DRIVING SELF-PRIMIING PUMPS. |
| WASHING | HIGH-PRESSURE WATER PUMP WASH |
| HYDRAULIC OIL BOX | TANKAGE200L, SUMMER:NO68 HYDRAULIC OIL, WINTER:NO46 HYDRAULIC OIL, VERY COLD ZONE: NO35 HYDRAULIC OIL |
| WATER TANK VOLUME | 300L |
| DIESEL TANK VOLUME | 112L |
| WEIGHT | COMPLETE VEHICLE KERB MASS 7000kg TOTAL MASS 14200kg |
| MOVING STATE SIZE | 5400*2530*4100mm |
| SHOVEL STATE SIZE | 7100*2530*3000mm |
| ALARM LAMP | STANDARD CONFIGURATION |
| RADIO | STANDARD CONFIGURATION |
| ESCAPE HAMMER | STANDARD CONFIGURATION |
| COATRACK | STANDARD CONFIGURATION |
| Reversing audio cue | STANDARD CONFIGURATION |
| Headlight | LED light |
| Taillight | LED light |
| FORWARD GEAR | ELECTRONIC CONTROL |
| HIGH AND LOW SPEED | ELECTRONIC CONTROL |
| IMPORTED HYDRAULIC PIPE | STANDARD |
FM7.5 Self-loading Concrete Cement Mixer
| Self-loading concrete cement mixer technical details |
| Mixing drum | Mixer capacity 7.5m3 concrete output/h, mixing speed: 3 gears both positive & inversion turns; maxing slewing angle of the drum: 300 degree. |
|
|
Engine details | Cummings model 4BTA3.9-C110, rated power/turns: 82kw (110HP)/ 2200rpm. |
|
|
Drive system | hydraulic component( variable stroke pump) : Danvers
two grades gear transmission : road/off road, 4 wheel drive |
|
|
| Speed | low gear speed: 0-9.5km/h, high gear speed : 0-28km/h |
| Cabin | front cabin with rops &fops design |
| Hydraulic sytem | 2 variable stroke pumps provide power separately to car drive and mixer.
2 constant rate pumps provide power to drum slewing , brake, water.
cooling: water/air |
| Joystick | all working operation designed in one joystick |
| Bucket | capacity: 0.6m3 hydraulic controlled door |
| Chute | adjustable hydraulic controlled vertical 15 degree movement, horizontal free movement |
| Water sytem | water pump with high pressure washing gun |
| Climbing angle | 30degree with full load |
| Brake | wet brake, parking brake with gear box |
| Tires | off-road engineering tire 16/70-20 PR16 |
| Steering | front axle steering, all hydraulic
inner steering radius: 1988mm/4130mm
outer steering radius:3767 mm/6030mm |
| Electric system | battery :2X12V 120Ah, provide lighting and ignition |
| Fuel tank | 110L |
| Hydraulic oil tank | 80L |
| Carframe | all steel welding |
| Weight | off load:8t, full load :18t |
FM5.5 Mobile Concrete Mixing Plant
| Drum capacity | 5.5m³ |
| Concrete output | 4m³ |
| Loading ratio | 76% |
| Rotary drum | Discharge mouth height 1.8 meters.Level turn 290 ° (options) |
| Production capacity | 4 batches in an hour.16 cubic meters per hour |
| ENGINE | Yuchai YC4A125Z, diesel, water cooling, 4 cylinders.2,200 revolutions per minute, rated power 92KW. |
| transmission way | Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4. |
| Climbing ability | 30% |
| speed | Low speed 0-25 km/h, high speed 0-45 km/h. |
| CAB | Ultra wide deluxe cab . ROPS type. |
| hydraulic system | Open feed, two gear pump participate in action. |
| joystick | A four-way hydraulic pilot with an electric control button controls the bucket. |
| bucket | 650L, hydraulic gate. |
| chute | Equipped with two removable shaft pins to increase the discharge length. |
| Water supply system | Self-priming hydraulic drive pump/electronic water flow monitor/high pressure washer (optional). |
| brake | inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub. |
| Turn | Hydraulic steering, rear wheel steering. |
| tyre | 16/70-20 wire tires |
| power system | 24V |
| OIL TANK/water tank | 2 x210L water tank. Diesel tank: 125 litres.Hydraulic tank: 130 litres.
|
| weight | 7600KG |
| L*W*H | 7500MM*2700MM*3380MM |
| wheelbase | 2.35M |
| metering | Electronic weighing system (optional). |
FM10 Mobile Concrete Mixing Truck
| Vehicle | Curb weight | kg | 7000 |
| Drive | | 4 wheels |
| Steering | mm | Front wheels |
| Tyre | mm | 10.00-20 |
| Transmit speed | km/h | 0-20 |
| Working speed | km/h | 0-9 |
| Gradient | degree | 15 |
| Dimension(for shipping, shovel dismantled) | (L*W*H) mm | 5300*2450*3360 |
| Engine | Model | / | Dongfeng 4BTA3.9-C125 |
| water-cooled, 4 cylinders. | |
| Power | kw/r/min | 93kW(126.5HP)/2200rpm |
| Emission | L | 3.9 |
| Mixing drum | Geometrical volume | m3 | 12 |
| Mixing capacity | m3 | 10 |
| Inclined angle | degree | 16 |
| Feeding speed | m3/min | 1.5 |
| Discharging speed | m3/min | 1 |
| Remnant rate | % | <=1 |
| Slump rate | mm | 160-230 +-30% |
| Hydraulic system | Hydraulic pump | | Imported Rexroth pump |
| Hydraulic motor | | China top brand |
| Speed reducer | | China top brand |
| Water supply | Water tank capacity | L | 300 |
| Supply method | | Hydraulic driven water pump |
Small FM1.7 Concrete Mixer Truck
| Mixing System | Drum capacity 1.7 m3, height of 1.5 meters discharge . |
| Production capacity | Concrete output: 1.2 m3/ cans, 4.8 m3 / h |
| Engine | Wuxisida brand with 490 boost , 48KW |
| Yunnei brand with 490 boost , 48KW(optional) |
| Transmission | Torque converter, 4-wheel drive, two steering, Chinese Axle |
| Walking speed | Low speed 2 km / h high-speed 20 km / h |
| Cab | Left-hand drive, anti-tilt, FOPS cab, front loading shovel |
| Hydraulic system | Domestic hydraulic systems, open loop for hydraulic transmission and drum rotation |
| Operating lever | Electronically controlled four-speed joystick |
| Bucket | 270 liters, hydraulic valve |
| Chute | Hydraulic adjustable angle, in order to increase the discharge length |
| Water supply system | Hydraulically driven self-priming pump, washing with high pressure water pump vehicle, electronically controlled self-priming pump, take 100 kg water per minute |
| Brakes | Air brake brakes, dual independent circuits |
| Tire | 12-16.5 construction machinery tires |
| Power Systems | 24V |
| Tank | Fuel tank: 35 liters, hydraulic tank: 120 l |
| Weight | 3200kg |
| Dimensions | Length: 5 m Width: 1.9 m Height: 2.6 m |
| Measure | Electronic weighing, measuring water control, recipe controlled |
Detailed Photos
Pictures Of Automatic Self Propelled Concrete Mixing Truck
Company Profile
>>
PARA Aramid Fiber for Making Fireproof Blanket and Nonwoven Felt
>>
Wholesale price high quality polo shirt for men new design polo shirts
>>
Segotep RGB Fan LGA 1700 PC Case Liquid Cooling Kit Water Cooler
>>
Custom Home Decorative Christmas Serving Tray Kitchen Mulfuntiction Food Dessert Bamboo Elk Plate
>>
OEM Custom High Precision 3/4/5 Axis Metal Plastic Aluminum Processing CNC Machine/Lathe/Turning/Milling/Prototype Parts/Cutting/Machining Service
>>
Rain test chamber for waterproof testing of security monitoring equipment
>>
Paper wrap bamboo disposable chopsticks with customized logo or design
>>
custom logo Large Cigar Cutter High Quality Silver Stainless Steel Sharp Metal Cigar Cutter
>>
Pet Dog Cat Poultry Chicken Fish Animal Feed Pellet Machine
>>
Custom design high quality cheap American football jersey practical shirt game 100% Polyester Heavy mesh Short Sleeve jersey
>>
Kangqiao Horizontal Pit Plant City Drainage Feed Multistage Single Suction Jet Sewage Clean Water Axial Flow Booster Centrifugal Pump for Chloride Evaporation
>>
Beautiful Water Hyacinth Storage Basket Handmade Desktop Basket Set Of 3 Vietnam Supplier
>>
2024 High Quality Four Spindle Faucet Making Tapping Machine Electric Drill Machine Faucet Machining Centre
>>
Custom Logo Cardboard Cat Corrugated Paper House Cat House and Scratcher Cat Scratching Board Kitten Paper Cattery
>>
10/20PPI porous copper metal foam for catalysts and electrode materials
>>
pink dumbells round fitness accessories dum bell
>>
Premium Low Pressure Pipe for Japan Kubota Engines
>>
Laboratory High Speed Dispersing Homogenizer Emulsifier Customized Capacity 300W Digital Display Blender
>>
TNC Bulkhead Connector TNC Jack Female Connector Crimp For RG178 1.13 1.32 1.37 Cable Connector
>>
Paver Tile Shaking Vibration Table for Concrete Moulds (ZDP2530)
