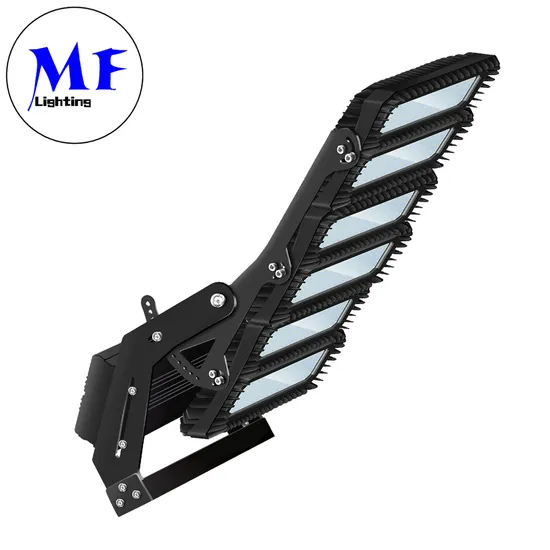

Factory Price 160lm/W IP67 0-10V/Dali Dim 200W/450W/650W/900W/1350W Module Adjustable LED Flood Light for Football/ Stadium /Sport Court

Product Description

Factory Price 160lm/W IP67 0-10V/Dali Dim 200W/450W/650W/900W/1350W Module Adjustable LED Flood Light For Football/ Stadium /Sport Court
Main Features
Different beam angle 110%1525,6090°,symmetric,130'x25%130°x40%130*x60%100°x60%80'x30°asymmetric Lumiled 3030/5050, System Efficiency up to155lm/Watt. Meanwell drivers available. LUMILEDSPrecision aiming device optional Dali, 0-10V Dimmable available. Built-in 10KV surge protection Long life time over 50,000 hrs, extremely low maintenance cost. 5 years warranty Specification

Model No.	2MFL230W30B	2MFL450W30B	2MFL650W3OB	2MFL900W30B	2MFL1350W30B
Wattage	230W	450W	650W	900W	1350W
Light Source	540x SMD 3030	1080xSMD 3030	1620x SMD 3030	2160x SMD 3030	3240x SMD 3030
LED Brand	Lumiled	Lumiled	Lumiled	Lumiled	Lumiled
lnput Voltage	100-240VAC 50/6OHz	100-240VAC 50/60Hz	100-240VAC 50/60Hz	100-240VAC 50/60Hz	100-240VAC 50/60Hz
LED Power(W)	208-219	416-438	624-658	832-877	1247-1315
System Power(w)	224-236	447-472	670-707	894-943	1341-1415
Luminous Flux (lm)	32,800-35,100	65,700-70,200	98.500-105,300	131,400-140,500	197,000-210,700
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
CCT(K)	3000/4000/5700	300014000/5700	3000/4000/5700	3000/4000/5700	3000/4000/5700
CRI	>70	>70	>70	>70	>70
Beam Angle	110° Glass lens 15°/25°/60°/90° PC Lens 100° × 60°/130° x 40°/130° x 25°/130° × 60°/ 80° x 30° ASY PC lens
lP Class	IP66	IP66	IP66	IP66	IP66
surge protection	6KV	10KV	10KV	10KV	10KV

Luminous intensity diagram
Dimension
Effective projected area =SCX

Product installation
Installation steps:
For details, please refer to lnstallation Instruction.
Installation must be performed by qualified person.
Disconnect before installation.
Installation tools are not provided.
Application

Suitable for sport fields, high mast, harbor, gymnasiums, warehouse, billboard, garden/ building decoration,etc. Packaging

Model No.	230W	450W	650W	900w	1350W
Outer Carton(cm)	44*40.5*24.5(1pcs/CTN)	86.5*49.5*34(1pCs/CTN)	86.5*49.5*34(1pcs/CTN)	87*82.5*34(1pcs/CTN)	8782.5*34(1pcs/CTN)
Net Weight(kg)	7.0	19.2	24.1	33.3	42.8

---
