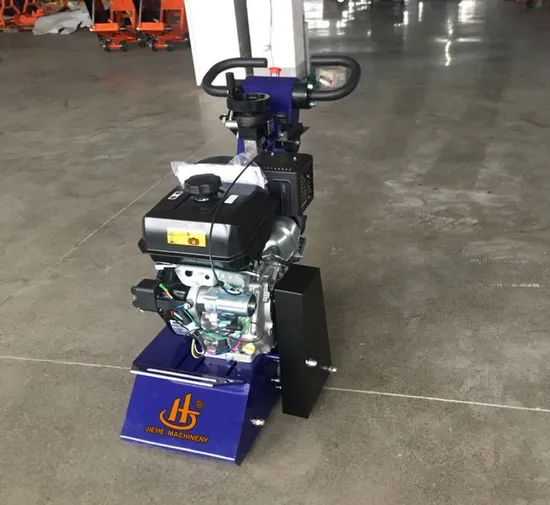

10 Inch Walk Behind Asphalt Milling Machine

Product Description

10 inch Walk behind asphalt milling machine Product Description
Jiehe concrete and milling machine are used for small and meduim sized areas.The low centre of gravity affords a big silent running and ensure quick and even milling results.A tripled drum bearing and hardened cutter shafts make it particularly reliable.
ApplicationsOur products are widely used in* municipal conservation,* roauction,* building construction,* flooring treatment(epoxy floor, wear-resistant floor) * other fields.Specifications* Honda engine with six bearings;* Drum is heat treated specially;* Good quality cutter;* Drum can be replaced easily;Pic1: 12PK belt has long life timePic2: Double bearing has high efficencePic3: Change the drum assembly only in 5 minutesSharp TCT cutter is aggressive to remove coatingsPic4: Cutting depth adjustmentPic5: Dust control brushesPic6: Anti-vibration mounts makes comfortable operationThe angular of strong handle can be transformedOthers: Front mounting lifting handle makes easy transportation
Product Parameters
Standard Specification, If you have other requirements, We also can custom made it for you.

Model	JHE-250	JHE-250E	JHE-250K	JHE-250D
Power Source	GX390 Honda/ GX270	Siemens Electrical motor	Kohler CH440/ CH395	186F Diesel Gasoline engine
Horse Power	13HP/9HP	7.5KW	14HP/9.5HP	10 HP
Working width	250mm	250mm	250mm	250mm
Working depth	0-10mm	0-10mm	0-10mm	0-10mm
No. of shaft	6pieces	6pieces	6pieces	6pieces
No. of cutter	90pieces	90pieces	90pieces	90pieces
Power Drive	Manual	Manual	Manual	Manual
Working area	25-50 m2 / H	25-50 m2 / H	25-50 m2 / H	25-50 m2 / H
Net Weight	178KG	201KG	132KG	199KG
L× W× H	910×470×880mm	910×470×880mm	910×470×880mm	910×470×880mm
Drum Rotation	Down cut (clock wise)
Milling mode	downward cut
Depth Control	Adjustable

Our Advantages
The Tungsten Carbide Topped(TCT)Scarifier Cutter are very Durability and designed for removing material such as pavement markings, expoxy coatings and waterproofing membranes. Service life of DASO carbide cuttters are from 5,000-6,000 Square meters
We have different styles

970mm(38") and 850mm(33.5")Height are Built for Your Choice
Applications& Training
JIEHE Concrete scarifier Systems include machines and cutting tools for leveling, removing and texturing (scarifying) surfaces. Walk-Behind and Self-Propelled Crete-Planers® come in various sizes. They solve common slab applications like unevenness, surface damage, surface marking removal, and sidewalk trip hazard repair.
You may like

Workshop

Packaging & Shipping
Our packaging is Polywood wooden case , Carton If you have other requirements, We will also can help you custom made it
JHE-200 dimensions(mm) is: 940*950*1080; 45 sets 20" container
Certifications

WHY CHOOSE US?
1.We are factory,direct factory price. Send Inquiry
2.Picture and videos can be provide to you to show how to use the machine.
3.7*24 hours Serve:we treat our clients as friends.
4.High quality:we have strict quality control system and enjoy a good reputation in the world.
5. With more than 19 years manufacturing experiences.

---
