Metal Processing Machine/Milling and Drilling Machinery/Slant Bed and Linear Guideway CNC Lathe

Product Description

Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: CK30L
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Shanghai
Payment Terms: L/C, T/T
Specifications

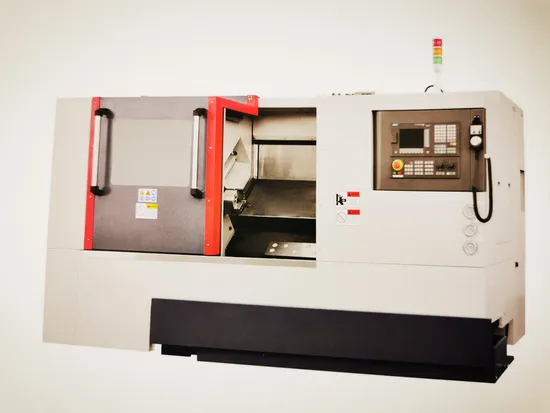

Slant Bed and Linear Guideway CNC Lathe Machine

CK30L CK32L CK36L

Max.swing over bed φ300mm φ320mm φ360mm

Max.swing over carriage φ140mm φ180mm φ210mm

Max.cutting legth 450mm 450mm 500/750mm

Rail width 260mm 284mm 284mm

Spindle nose A2-4 A2-5 A2-5 / A2-6

Spindle bore φ46mm φ56mm φ56mm / φ62mm

Taper of spindle bore 1:20 1:20 1:20

Chuck 5" 6" 6" / 8"

Range of spindle speed 150-4200rpm 150-4200rpm 150-4200rpm

X a-xis travel 150mm 190mm 210mm

Z a-xis travel 350mm 450/650mm 500 / 650mm

X/Z rapid speed 20 / 20 m/min 20 / 20 m/min 20 / 20 m/min

Hydralldic turret 6 6 / 8 6 / 8

Max. section of tool 16x16mm 20x20mm 20x20mm

Stroke of tailstock sleeve 60mm 80mm 80mm

Diameter/hole of tailstock sleeve φ40mm / MT3 φ60mm / MT3 φ60mm / MT4

Main motor power 4kw 4kw or 5.5Kw 5.5kw or 7.5Kw

Coolant pump motor 370kw 370kw 370kw

Overal dimension 1800x1250x1550mm 2300x1550x1750mm 2630/2910x1550x1750mm

Packing size 2000x1400x1750mm 2500x1750x2000mm 2830/3130x1750x2150mm

Net weight 1750 kgs 2200kgs 2700 / 300kgs

Gross weight 2000 kgs 2000kgs 3100 / 3400kgs

Standard confingutation:
spindle unit,
AC servo motor,
central lubricaction system,
eight position turret,
high pressure coolant system.
Optional equipment :
with milling or drilling power head,
automatic chip removal,
tool and workpiece probe,
living tools.
Features:
1.45°slanting bed chip conveying capacity is large and convenient.
2.Spindle unit.
3.High accuracy Taiwan X/Z linear guideway and ball screw.
4.Screw pre-streching standard.
FAQ:
Question 1: what is your target market?
A1: we are now focusing on Europe and North America.
Question 2: what is the biggest advantage over competitors?
A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.
Question 3: what about payment and delivery time?
A3: delivery time: within 30 days after receiving the advance payment.
Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)
Question 4: can I have some samples?
A4: Yes, we are honored to provide you with samples for quality inspection.
Q5: how is your factory doing in quality control?
A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.
Why choose us?
1. GNG has a strong sales team and rich export experience.
2. The brand of GNG has a long history and its products are rich but not monotonous.
3. The products from GNG have long service life, stable quality and stable beating.
4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
5. GNG supports non-standard customization.
6. GNG has its own strong R & D team and strong innovation ability.
7. Our sales response is accurate, timely, professional and long-term after-sales service.

---
