2L 5L 7L Plastic Jerry Can Bottle Double Station Blow Molding Machine

Product Description

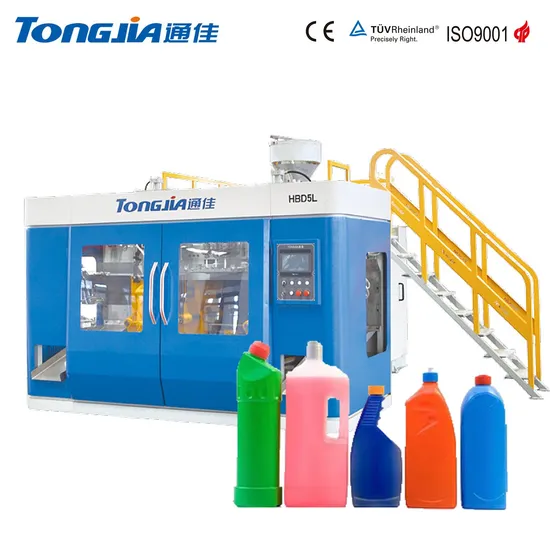

Tongjia Blow Double Station HBD Series Blow Molding Machine
Product Description

It can be installed with programmable computer control and realize whole line intelligentize
Provide products with high stability for customers
Save 30%-80% energy and bring you prominent economic
Product Parameters

Configuration
Clampingsystem	Double work stations translation + High-precision linear guideway
Extrusion system	Hardened face gear reducer + Imported frequency inverter
Die system	Special steel center-feeding die
Hydraulic system	AlI imported hydraulic valve, seal parts + Electro-hydfaulic proportional control
Control system	Imported PLC + Imported Human-machine interface + PLC automatic temperature control module

Parameters
Specifications	Units	TJ-HBD2L	TJ-HBD5L	TJ-HBD7L
Material		PE PP.PVC.PA …	PE PP.PVC.PA …	PE PP.PVC.PA …
Max.product capacity	L	2	5	7
Die quantity	Set	1.2.3.4 …	1.2.3.4…	1
Machine dimension	M	4.0x3.0x2.8	4.0x3.0x2.8	4.5x3.0x3.5
Machine weight	Ton	5.5	7.8	9
Die-head
Max.diameter of die	mm	160	180	180
Center distance of double die	mm	120	160	/
Die head heating power	KW	5.2	9.4	9.5
Die head heating zone quantity	zone	3	3	3
Clamping Unit
Clamping force	KN	90	90	200
Distance between platens	mm	135-485	230-620	230-620
Toggle stroke	mm	450	650	650
Mold platen size	mm	320X400	420X400	350X700
Extruder unit
Screw diameter	mm	65	75	75
Screw L/D ratio	L/D	25	25	25
HDPE plasticizing amount	Kg/h	70	90	90
Screw heating zone quantity	zone	4	3	3
Screw heating power	KW	10.2	13.5	13.5
Extruder driving power	KW	15	22	22
Power
Total power consumption	KW	41.4	55.9	69
Hydraulic drive power	KW	11	11	24
Cooling water consumption	m3/h	3	4	5
Cooling water pressure	Mpa	0.3-0.6	0.3-0.6	0.3-0.6
Air pressure	Mpa	0.8	0.8	0.8
Air consumption	m3/min	0.4	0.8	1

Product Application
About us
Series of automatic blow molding machine include: extrusion blow molding machine,plastic bottling blow molding machine,daily chemical packaging blow molder, lubricant oil blow molding machinery, pharmaceutical / medicine bottle blow moulding machine, food packaging bottle blow molding equipment, pesticide bottle blow molder machine, plastic stacking barrel blow molding machine, large hollow blow molding equipment and special-shaped hollow molding machine etc.
Shandong Tongjia Machinery Co., LTD,located in High-New Technology Industry Development Zone of Jining City, Shandong Province. We are a science, industry and trade integration modern large enterprise group, one of the largest professional manufacturer of plastic machinery in China, Vice President of China Plastics Machinery Industry Association, Vice President of China plastics Processing Industry Association, the National Key High-Tech Enterprises and Chinese Patent Star Enterprise.
With the mind of "Trust comes from quality" , Tongjia group with strong comprehensive strength, exquisite technology, perfect after-sale service system, as always, is willing to make progress together with customers from domestic and overseas to create new glories.
After Sales Service
1. 12 Hours----We will give you reply within 12 hours.
2. Pre-sale service----We provide your professional service in fluent English.
3. Delivery----1~3 months.
4. Free Design----Professional engineers, free designs.
5. Certificates----The third-party verification service provider.
6. After sales service----OEM service provide; Design service provide; Buyer label provided.
Packaging & Shipping
Standard export packaging: 1. Apply anti-rust oil to the equipment easy rusty part and carry out anti-rust treatment.
2. The whole machine was wrapped with stretch film for protection, and the equipment control cabinetand other components are protected against shock with packaging materials like XPS foam board and EPE foam sheet.
3. Reinforce easy-move part of the equipment.
4. Put desiccant before packaging to avoid rusting equipment during sea transportation.
5. Use New Zealand imported bluish pine wood or American Douglas fir wood as the bottom support 12mm multi-layer plywood for side panels, all wood fumigated. We cooperated with experienced andprofessional exported wooden packaging manufacturing enterprises to make final package.
FAQ
Q1:What's your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller's
factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment,
whichever comes first.

Q2:What's your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.

Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still
can not be solved, welcome to contact us for help.

Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support,
for you personally to overseas assembly and test equipment.

Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.

Q7:What are your terms of payment?
A7:We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online!
