Product Description:

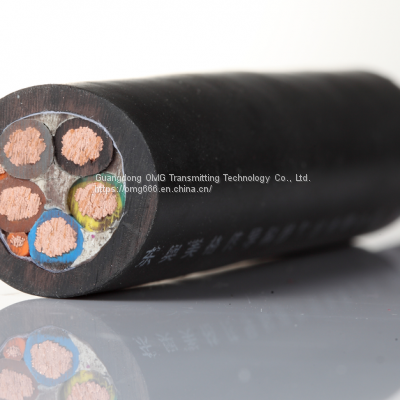

EV charging cable, charging pile cable
Electric vehicle charging cables are used to connect electric vehicle charging devices and charging infrastructure for power transmission for electric vehicles, and are equipped with a certain number of signal lines, control lines, power auxiliary lines, etc. to ensure precise control and safe operation of the entire charging process . Charging cables are generally used in charging stations, parking lots, hotels, residential areas, garages and other areas, and portable charging cables can be placed in the car.
application
1) Suitable for charging electric vehicles with power supply equipment installed in homes or public places.
2) It is suitable for connecting the conductive charging interface of electric vehicles whose DC voltage does not exceed 1000V, and is suitable for charging electric vehicles without on-board chargers at the charging station.
environmental conditions
1) Rated voltage of cable conductor: 300V; 600V or DC1000V
2) The minimum ambient temperature of the cable is -40 ºC.
3) The long-term allowable working temperature of the cable conductor is 105ºC
4) The minimum bending radius of the cable should not be less than 5 D (D refers to the outer diameter of the cable, mm)
5) The cable has the properties of low temperature resistance, flame retardant, oil resistance and wear resistance, water resistance and so on.
Reference standard: UL62
UL File Number: E345899
Rated temperature: -40°C~105°C
Rated voltage: 300V; 600V or 1000V
Insulation material: environmentally friendly thermoplastic elastomer or polyvinyl chloride
Sheath material: environmentally friendly thermoplastic elastomer or polyvinyl chloride
Number of conductors: according to customer needs
Nominal area: according to customer needs
Color: generally black or orange, can also be customized
Application: car charging pile equipment, mobile portable charging wire and cable device (spring wire series), electric vehicle internal use (battery wire) / motor wire
For more electric vehicle cables and electric vehicle charging cables, please visit OMG official website: /
>>
