Beibu Sesame Sunflower Seeds Chia Seeds Double Air Screen Cleaner Seed Cleaning Machine

Product Description

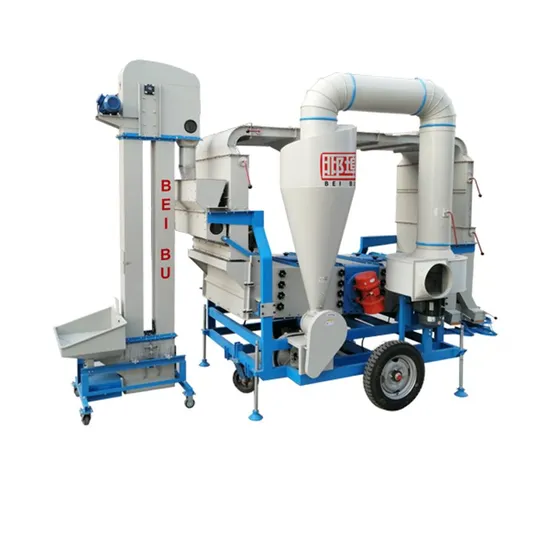

Sesame Sunflower Seeds Chia Seeds Double Air Screen Cleaner Seed Cleaning Machine
Product Description
The 5XFS-7.5BC Double Air Screen Cleaner with the special designing on the double time air screen part which can remove more dust and light impurities.
With this special designing the 5XFS-7.5BC Double Air Screen Cleaner had been widely used for sesame cleaning,especially in Africa which part got lots of sesame;also for the sunflower seeds and quinoa which is popular in Europe and South America.
As the pre-cleaning machine,the machine can connected with other fine cleaning machine like De-stoner or Gravity Separator to make the whole cleaning processing line.
Machine Structure
Working Principle
•The raw sesame went to the main machine by elevator,first go through the from air screen part which can remove the dust and light impurities;
•Then the sesame will go to the vibration grader which will remove the larger and smaller impurities than sesame by the different hole size in the four layer sieves;
•At the same time,the sesame will go to the back air screen part for the second time light impurities removing,which improve the purity of the final sesame.
Cleaning Result

Detailed Photos
Easy to operate with high performance.
High Purity :98.5% purity especially for cleaning sesame
High quality motor for seeds cleaning machine.
3-7 Ton per hour cleaning capacity for cleaning different seeds and clean grains.
Non broken low speed bucket elevator without any damage for the seeds and grains.
Product Parameters

Model	5XFS-7.5BC Double Air-screen Cleaner
Sieve Size	1250mmx2400mm
Power(kw)	Fan motor: 7.5KW Vibration motors: 0.55X2KW Elevator motor: 0.55kw Rotary discharging valve: 0.75KW Total: 9.9KW
Capacity(t/h)	3t/h based on sesame
Weight(kg)	2300
Overall Size L×W×H(mm)	5100*2430*3400mm
Voltage	380V, 50HZ, three phases

Machine Loading Picture
Installation Warehouse

---
