Product Details
Product Description
Product Description
1. Adaptation range and adaptation of the bottle body size
1.1: Automatic bottle sorting machine is a patented product developed by the company. This product is widely used in the food, beverage industry and pharmaceutical industry, condiment, fruit juice, milk and other industries.
Provide the bottle type custom machine according to the customerNote: The above are standard models, if the special bottles should be negotiated in advance
n Advantages of equipment:
n Advanced function, simple operation, compact structure, the whole machine adopts mature technology PLC control system, so that the whole machine runs stable, high-speed
n The operating system is controlled by buttons, which is simple, practical and efficient
n The body is made of stainless steel material to ensure that the bottle is clean and pollution-free
n Imported low-voltage electrical appliances original, stable performance, very low failure rate.
n When the connection is used, it has the alarm function of air transmission and blocking bottle, and automatically starts after processing
n Compared with the traditional bottle management machine, it has a small volume and a fast speed
n A wide range of use, a multi-purpose machine and strong adaptability!
n Hoists can change the corresponding position according to the site, and greatly adapt to the production site
n The connection docking is convenient, after the bottle directly air delivery docking or transport docking.
3、Brief description of the bottle machine：

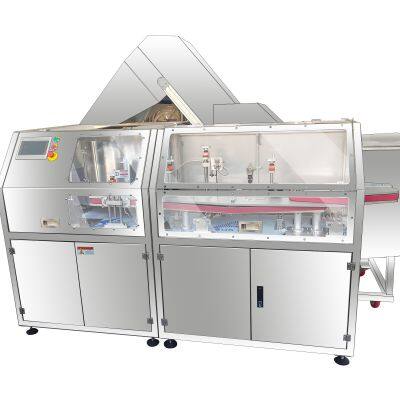

This machine is used for disordered polyester bottles, scattered without chapter of the bottle through the elevator into bottle machine bottle circle, by rotary centrifugal force, the bottle ending contact, the centrifugal plate, export multilevel belt, through the stable bottle, holding bottle into the claw mechanism, the bottle is turned forward, the bottom of the bottom, and then through the last level belt, the bottle upright, bottle finishing process is completed, and the air-delivered bottle system output into the next process. The body material of this machine adopts high quality stainless steel, other parts also use non-toxic, durable series materials, electrical and pneumatic system choose
4、working process
u First, manually pour the bottle into the lifting bucket;
u Send the bottle to the bottle machine by the elevator;
The bottle enters the bottle management machine warehouse for finishing, high-speed centrifugal output, multi-stage belt output, turn the bottle, belt clamping the bottle upright.
>>
