Basic Info.
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Computerized
Computerized
Certification
ISO9001:2008
Transport Package
Wooden Package
Specification
22470*6530*5200
Production Capacity
500/Mon
Product Description
Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 5 in China.We have 11 companies worldwide, 9 in domestic China, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang. There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customer service.
This series of products with advanced technology, stable performance, and excellent quality, is widely used in household appliances, auto parts, logistics, packaging, high-speed train, pipe fittings, and other fields of plastic products production, especially suitable for deep cavity and low-pressure injection molding process products production.

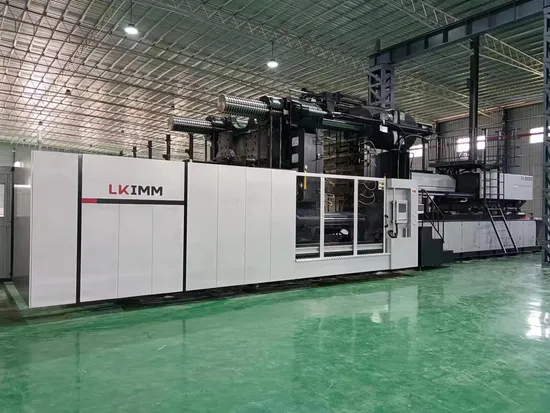

Forza 450 ton - 7000 ton
1.The compact two-plate closure unit makes it possible to install large plates.
2.The module for quick change of molds is plug and play.
3.Excellent dry cycle performance.
4.Servo drive system for large tonnage machines.
5.Linear guide rails for the clamping and injection motion support
6.Single Cylinder injection unit.
Use of application
Crate, Pallet, Garage bin, Pail, Automotive, Electrical Appliances, Car Body, Power train, Interior, Home appliances
Technical Parameter List
| ITEM | UNIT | FA4500 |
Shooting Part | Shot Weight(ps) | g | 83777 |
Screw Diameter | mm | 275 |
Injection Volume | cm^3 | 92063 |
Injection Pressure | Mpa | 144 |
Screw L/D Ratio | L/D | 23 |
Injection Rate | cm^3/s | 3538 |
Screw Speed | r/min | 45 |
Hopper Capacity | L | 600 |
Clamping Part | Clamping Force | KN | 60000 |
Die Height(Min-Max) | mm | 1200-2400 |
Max.Daylight | mm | 5000 |
Space Between Tie Bars | mm | 2720*2360 |
Ejector Stroke | mm | 650 |
Ejector Force | KN | 800 |
Others | Pump Motor Capacity | KW | 47.7*5+58.6*2 |
Max. Working Pressure | Mpa | 19.5 |
Oil Tank Capacity | L | 6000 |
Heating Capacity | KW | 431 |
