Heat Resistant Air Steel Wire High Pressure Steam Hose with High Temperature

US$1.60 500 Meters (MOQ)

Basic Info.

Model NO.

Steam Hose

Length

20m/Roll, 40m/Roll, 50m/Roll

MOQ

500 Meters

Surface

Smooth or Wrapped

Application

for Conveying Saturated Steam & Super Heated Water

Working Pressure

17bar/20bar

Delivery Time

25-45 Days

Certification

ISO:9001:2008

Warranty

12 Months

Payment

T/T 30%, 70% by Bl

Working Temperature

up to +230°c

Transport Package

Strong Woven Braided Bag

Specification

3/8"-2"

Trademark

Hyroteflex or As Request

Origin

China

HS Code

40092100

Production Capacity

10 Million Meters

Product Description

Heat Resistant Air Steel Wire High Pressure Steam Hose with High Temperature Product Parameters

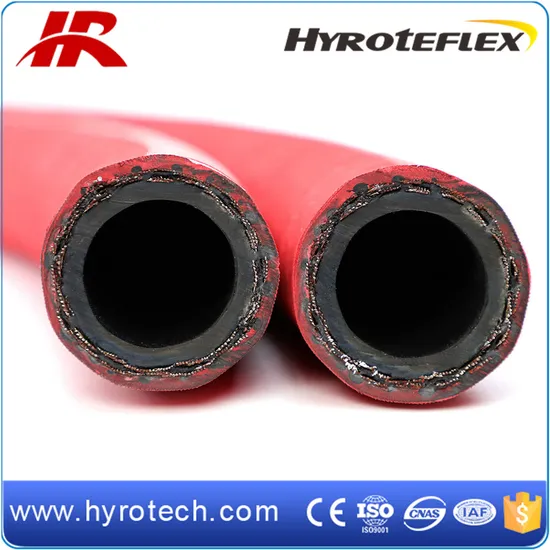

Construction: Made of excellent heat-resistant rubber, the reinforcement is braided with copper facing wire.
Application: For conveying saturated steam and super heated water continually at a temperature below 210 ºC or intermittently at a temperature below 230 ºC .

W/B	Size		Outside Ø	Working Pressure		Burst Pressure		Bend Radius	Length
W/B	mm	inch	mm	Bar	Psi	Bar	Psi	mm	m
1W	10	3/8	21.5	17	255	50	720	130	20/50
	13	1/2	24.5	17	255	50	720	180	20/50
	16	5/8	27.5	17	255	50	720	205	20/50
	19	3/4	30.5	17	255	50	720	240	20/50
	22	7/8	33.5	17	255	50	720	280	20/50
	25	1	37.0	17	255	50	720	300	20/50
	32	1 1/4	44.0	17	255	50	720	420	20/40
	38	1 1/2	50.5	17	255	50	720	500	20/40
	45	1 3/4	57.5	17	255	50	720	500	20/40
	51	2	63.5	17	255	50	720	630	20/40
	64	2 1/2	77.5	17	255	50	720	700	20/40
2W	10	3/8	23.0	20	300	60	860	130	20/50
	13	1/2	26.0	20	300	60	860	180	20/50
	16	5/8	29.0	20	300	60	860	205	20/50
	19	3/4	32.0	20	300	60	860	240	20/50
	22	7/8	35.0	20	300	60	860	280	20/50
	25	1	38.5	20	300	60	860	300	20/50
	32	1 1/4	45.5	20	300	60	860	420	20/40
	38	1 1/2	52.0	20	300	60	860	500	20/40
	45	1 3/4	59.0	20	300	60	860	500	20/40
	51	2	65.0	20	300	60	860	630	20/40
	64	2 1/2	79.0	20	300	60	860	700	20/40
