Introduction

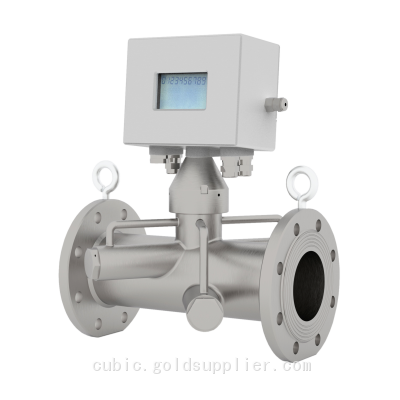

Cubic ultrasonic gas flow meter is an advanced electronic meter for natural gas flow measurement, which adopts ultrasonic technology to maintain long-term accuracy without degradation.
With its multipath design to detect multiple flow profiles, the flow meter excels at eliminating turbulence and asymmetric gas flow impact. The innovative design not only provides redundancy capability but also enables the flow meter to operate seamlessly even in the face of a channel failure, showcasing its unwavering reliability.
By incorporating pressure and temperature sensors, Cubic ultrasonic gas flow meter can convert gas volume measured under actual conditions to standard conditions (20℃, 101.3kPa) for fair measurement without the necessity of supplementary flow volume correction equipment.
Equipped with an integrated wireless communication module GPRS/NB-IoT, the flow meter enables remote recharging and real-time data, offering users a complete measurement solution with intelligent management capabilities. The gas flow meter also sends alarm notifications to the cloud platform, facilitating real-time remote monitoring and control. This allows users to easily track gas consumption and monitor the meter's status from any location.
Designed for versatility, Cubic ultrasonic gas flow meter is well-suited for various applications, including natural gas custody transfer and the precise measurement of process gases across different industries.
Features
1. Utilizes ultrasonic technology to maintain long-term accuracy and no wear and tear
2. Multipath design detects multiple flow profiles, eliminating turbulence and asymmetric gas flow impact
3. Multipath offers redundancy capability and channel substitution technology for continued operation
4. Titanium alloy transducer employed possesses corrosion resistance, high-pressure resistance and anti-contamination
5. Wide Turn-Down ratio and excellent repeatability ensure stable measurement
6. Temperature and Pressure Sensors ensure accurate gas flow measurement
7. No pressure loss and ultra-low starting flow ensures monitoring of minimal gas consumption
8. Detachable transducer design for easy periodic cleaning
9. Integrated wireless module allows easy remote monitoring and meter status management
10. Automatic self-diagnostics, reducing equipment failures and downtime
11. Wired power supply with lithium battery for backup enhances system reliability
Specifications
| Specifications | DN100 | DN150 | DN200 | DN250 | DN300 |
| Flow Range (m³/h) | 6~600 | 13~1300 | 20~2000 | 30~3000 | 40~4000 |
| Accuracy | Class 1.0 |
| Boundary Flow (m³/h) | Qt = 60 | Qt =130 | Qt =200 | Qt =300 | Qt =400 |
| Q Start (m³/h) | 2 | 4.4 | 6.7 | 10 | 13.4 |
Maximum
Permissible Error | Qmin ＜ Q ＜ Qt, error：± 2.0%
Qt ＜ Q ＜ Qmax, error：±1.0% |
|
| Repeatability | Qmin ＜ Q ＜Qt, error：≤0.4%
Qt ＜ Q ＜ Qmax, error：≤0.2% |
|
| Flow Medium | Single-phase gas: natural gas, liquefied petroleum gas, air, etc. |
| Medium Temperature | (-40~60) ℃ |
| Nominal Pressure | ≤1.6MPa |
| Work Pressure | ≤0.8MPa |
| Ambient Temperature | (-40~60) ℃ |
| Storage Temperature | (-40~60) ℃ |
| Transducers Material | Titanium Alloy |
| Power Supply | External power 9~24VDC, built-in lithium battery 3.6V |
| Battery Life | ≥4 years @ RT 20℃ |
| Analog Outputs | 4~20mA |
Communication
Interface | 1x RS485 Port |
| Communication Protocol | Modbus RTU |
| Wireless Communication | GPRS |
| LCD | Accumulated total volume (standard condition), instantaneous flow rate under standard condition, instantaneous flow rate under working condition, temperature, pressure, battery power, etc. condition, temperature, pressure, battery power, etc. |
| Material in Contact with Medium | Stainless Steel 304 |
| Installation Method | PN16 Flange |
| Ingress Protection | IP66 |
| Explosion Proof | Ex db ia IIB T3 Gb |
>>
