Tablecut-200 Precision Metallographic Cutting Machine Automated Sample Preparation Equipment for Laboratory Industrial Material Testing Applications

Product Description

Model		TableCUT-200
Wheel	Speed	500-3000rpm
	Diameter	Φ200mm
	Arbor	Φ12.7/Φ22mm
Electrical	Voltage/Frequency	220V/50Hz
	Voltage Power	1.5KW
	Touch Screen	5 inch
	Y-axis feed	Manual movement via joystick or automatic feed
Cutting Capacity	Max. diameter	Φ50mm
	Max. square section	50x126mm
Workbench	Dimension (WxD)	465x270mm
	Travel	240mm
Cooling Tank	Capacity	5L
Dimensions	W×D×H	570×717×405mm(Close) , 570×717×900mm(Open)
Weight		63kg

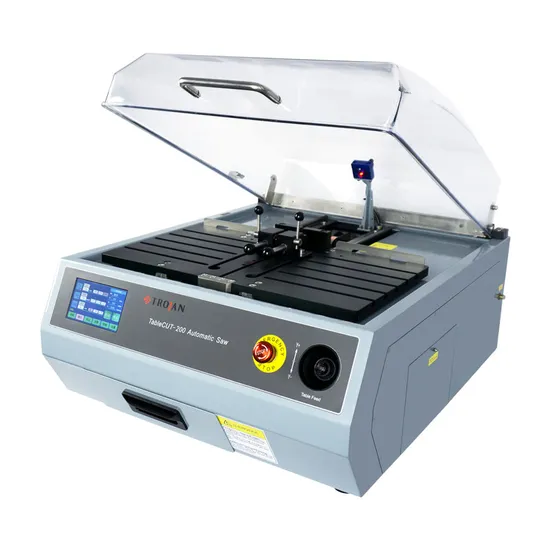

TableCUT-200 is an automatic cutting machine, which is equipped with a variety of fixtures to cut irregularly shaped workpieces. It is suitable for automatic precision cutting of various metal materials,
PCB circuit boards, semiconductors, crystals, ceramics, quartz glass and petrographic samples, etc.
Features:
1. 5" Mainstream touch screen, manual type automatic program control, intuitive and convenient;
The cutting speed is precisely adjustable from 0.01-5mm/s;
2. The speed of the cut-off blade is adjustable from 500-3000rpm, with speed pre-set buttons;
Laser alignment which can locate the cutting routine precisely, quick clamping the fixture;
3. Auto quick find the origin in idle speed, saving cutting time;
4. Wet and dry cutting, hidden cooling system, simple and beautiful;
5. Equipped with a variety of fixtures for cutting of irregularly shaped workpieces, automatic fixture is optional;
6. Manual and automatic integration, making cutting easier;
7. Four cutting modes available, built-in overload protection ensures perfect cutting results.
Constant speed cutting: for easy cutting sample in quick cutting.
Pulse cutting: cutting for materials prone to burns.
Speed automatic adjustment cutting: automatically adjust the cutting speed according to the cutting current to improve the cutting quality and protect the motor.
Manual cutting: manual cutting mode, the speed can be setting in control speed.
More Related Products
Certifications
Recommend for you
Scope of application
Company Profile
Exhibition Display
Packaging & Shipping
FAQ
Q: I didn't use this kind of machine before, is it easy for me to operate?
A: We will send you how-to tutorials and guide video in English which can teach you how to operate the machine. We can also assist
you by E-mail, phone call, online group chat and any other ways if you still have trouble handling it.
Q: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under normal use.
Q: What is the price and payment terms?
A: EXW, CIF, FOB we all can accept payment: TT/Paypal /LC/Western Union.etc

---
