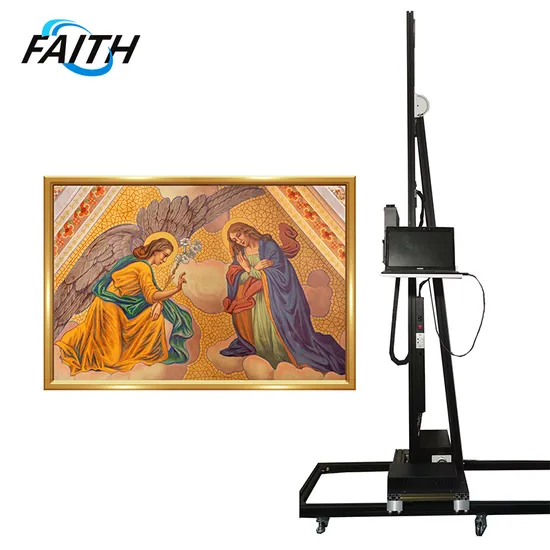

Faith Cost-Effective High Speed Wall Printer UV Printer Wall Art Design Epson Printing Head UV Inkjet Printer Digital Inkjet Printer

Product Description

Faith Cost-Effective High Speed Wall Printer UV Printer Wall Art Design Epson Printing Head UV Inkjet Printer Digital Inkjet PrinterProduct Description

KD260 parameters
Printing software		Genuine professional printing software
Using ink		Special environmental protection organic water-based ink (waterproof, anti stripping)
Control mode		Wired / wireless printing
Transportation		(foldable)
Power consumption		No load 20W, maximum 250w
Surface tracking		Hyperbolic banner sensor, up and down bidirectional induction
Ink supply system		Positive pressure system single color single supply, 4-color ink bin one body
Print size		2.5Height × width, more than 2 meters can be seamless splicing
Construction noise		Standby < 20db, drawing < 70db
Supporting pictures		Photos taken by mobile phone / camera and Internet
Power requirements		Household electricity: 220 VAC or 380 VAC
Applicable media		White wall, ceramic tile, glass, metal, acrylic, paper, etc
Format of national film		include PSD.CDR, JPG, JPEG, PNG, BMP, tiff, EPS, AI and PDF
Color drawing technology		Micro piezoelectricity spray technology, variable ink drop, high tolerance error emerging technology, automatic memory recovery technology for construction interruption
Print Resolution		360x720dpi/720x1080dpi/720x1440dpi/1080x1440dpi/1440x2880dpi
Operating environment		-20 ° c-50 ° C (- 4f-122f), 10% - 70% relative humidity, non condensing state
Storage environment		-21c-5o ° C (- 22f-140 ° f), 10% - 70% relative humidity, non condensing state
operating platform		Windows xP/7/8/9/10
Certification qualification		Green environmental protection certification, national standard test qualified (GB 18582-2001, gbt9756-2001), CE certification
Printing speed	PASS		M2 / h (M '/ h)
Fast mode	A		15
Production mode	B		10
Quality model	C		7
HD mode	D		5
External dimension	Machine scale mm); length 700* width 300* height 2600		Package size (mm): length 800*width 460*height 2700
Machine weight	Machine 60kg (fuselage 30kg + 3 guide rails 30kg)		Gross weight 115KG in wooden case
Key components
Nozzle specification	Epson 10 generation high precision printing nozzle 2	Electric machinery	3 Imported intelligent servo motor + reducer
main board	8Core high speed CPU, 4GB memory, high speed USB 1o	Wall detection	2Nano distance detectors
level	Imported precision level	Power failure alarm	Real time power failure alarm system
UPS power supply	Super uninterruptible power supply with 3 hours of power failure	Laser positioningLaser positioning	Precise infrared laser positioning system
Shaft guide	High strength precision railway track, 4 sections, 1.5m, 6m in total	Shaft guide	Imported linear drive module
Ink supply technology	Positive pressure system ink supply, need to draw ink	Gift Gallery	Free 2T Library
Language	Chinese / English (other languages can be customized)
Note: the above parameters are design parameters. In case of any difference, the actual use efficiency of the equipment shall prevail.

Application
If you have any question,please contact usOur Advantages
1.Can Be applied to a variety of materials wall, for example White Wall, LATEX PAINT WALL, Shell powder wall, ceramic tile, glass KT board2. Supports printing color ink and white ink at the same time 3. The number and type of printing nozzles are optional, different printing speed and printing accuracy 4. Print height can be customized, unlimited length
Traditional VS IntelligentDetailed Photos
EPSON print head imported from Japan,printing accuracy up to 2880dpiInfrared cross positioning device,easy to determine the printing position Ultrasonic distance sensor,automatically adjusts the distance between wall and sensor,even brick walls can be conquered.Infrared cross positioning device,easy to determine the printing positionCMYKW five-color UV ink.dry immediately,no fading,waterproof and wear-resis-tantAluminum alloy frame,the machine is more stable.Digital stepping motor,more precise movement.The printing consumption issmall, and the ink cost persquare meter is only 0.3 USdollars. One set of ink, 5 colors, Red Yellow Blue Black White; each color 500ml; One set of uv ink costs 95usd, which can print 150 square meters. so the average of Ink consumption 16.7ml/sqm. The cost is 0.63usd/sqm.One set of water based ink costs 75usd, which can print 150 square meters. so the cost is 0.5usd/sqmPackaging & Shipping
Company Profile
We have accumulated rich experience in design and production. In addition to the imported automatic printing equipment in domestic car production line, our company has an absolute advantage, and has installed more than 35,000 sets of systems worldwide.The sales volume of mechanical marking system ranks the first in the world, and the sales volume of laser marking system ranks the first in Asia.Some domestic customers such as Toyota, faw Volkswagen, faw assembly geely, tianjin xiali, ningbo, Shanghai maple, Shanghai gm, jiangsu yueda KIA, foton, guangzhou Honda, Beijing hyundai, Beijing Benz, jinbei automobile, brilliance and other manufacturers, both chose my company with the line of printing equipment, the equipment on the production line of continuous and reliable work, low failure rate, create value for customers, the company won the honor for me.
Our Factory
We have our own factory, can provide the goods for you at the first time, if your goods have any problem, we can solve for you immediately.
FAQ
1) How many printheads does the Wall printer have?
Printhead number is optional; it can be equipped with 2 or 3 print heads
2) Can it print white color/ does it have CMYK + W?
Yes the wall printer can print white color.
3) What accesories will come with the printer?
The printer comes with 4 rails(each 1.5m long), one set of ink and nozzle cleaner.
4) What type of ink does it support?
Wated based in or UV ink
5) Which shipping way will have less cost?
Shipping by sea will have less cost, but with ink together, the cost will be a bit higher than normal.
6) Are there other product appearances that can be choosen?
Yes, there are two options; one is in blue; the other is in yellow.
7) Is the printer equipped with Touch screen?
Nope, the printer is equipped with computer along with mouse and keyboard.
8) What is the Print head brand?
The brand is optional; Epson DX10, DX7 or Epson4720
9) What Language does the software support?
It supports English and Chinese only
10) How do we clean the printed wall?
The printed pictures cannot be washed away; it needs to paint the wall again to cover it.
11) Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.
12) What's your delivery time?
We will arrange the delivery within 3~7 working days after receiving the deposit.
13) What payment method are supported?
Payment method is T/T or LC, PayPal, Western Union, Credit Card, etc.
14) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
15) Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.
16) Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

---
