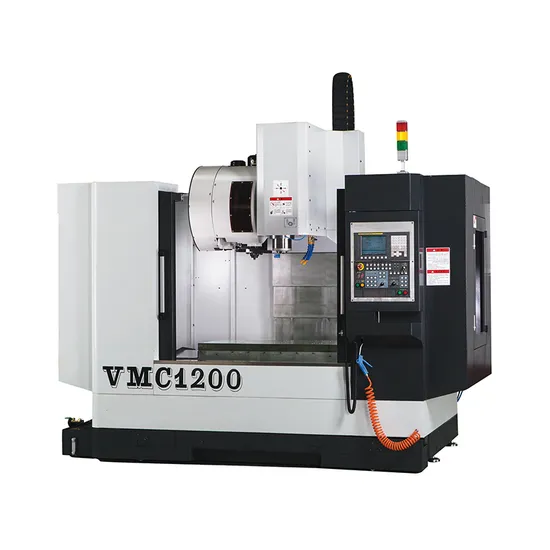

Vmc1200 Vertical Machining Center Vmc1200 4 Axis CNC Machine

Product Description

CNC 3 Axis Vertical Machining Center Milling Machine For Metal
Product Description
X,Y linear guideway, Z axis widened linear guideways Fanuc oi mate md, Fanuc oi md, Siemens 828d, Gsk25i, Heidenhain, and so on cnc control sytem for your choice Taiwan famous brand spindle, spindle is 8000rpm Taiwan famous brand tools magazine umbrella-typpe or arm-type tools magazine capability 24 tools is optional Taiwan famous brand screw Automatic chain-type or screw-type chip conveyor is optional The 4th axis rotary table or dividing head is optional

Detailed Photos


Product Parameters

specifications	units	VMC1200
Table travel (X,Y,Z)	mm	1200*600*600
Table size	mm	1200*620
Number/width/distance of T-slot	mm	5-18-115
Max load of table	kg	1000
Distance from spindle nose to table surface	mm	150-750
Distance from spindle axis to column guideway	mm	660
Rapid feed speed	m/min	24,24,18
Feed speed	mm/min	2.5-6000
Taper of spindle		BT40
Max.drilling dia
Cast iron	mm	40
Steel	mm	35
Max.tapping dia
Cast iron	mm	18
Steel	mm	16
Spindle speed range	rpm	40-4000
Spindle motor power	kw	(SERVO)7.5
Tool magazine capability	qty	24
Max weight of tool	kg	15
Max dimension of tool	mm	Ø150*300
Positioning accuracy	mm	±0.012
Repeat positioning accuracy	mm	0.05
Min. Time of tool change	sec	3
Overall dimension	mm	3250*2500*2600
Machine weight	kg	8500

Hot Products
Company Profile
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines?
Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.
4.Where is our factory located? How can I visit there? Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).

---
