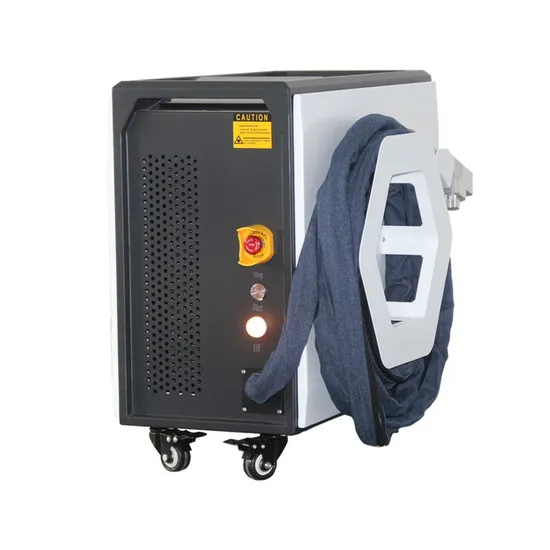

Max Air-Cooled Light Laser Cleaning Machine 1500 Watts

Product Description

Product Description

The prospects and technical principles of laser cleaning
Laser cleaning equipment is a new generation of surface treatment high-tech products, which are easy to install, operate and realize automation. The operation is simple, the power is turned on, and the equipment is turned on, you can clean without chemicals, media, and water. The focus can be manually adjusted, and the surface can be cleaned. The cleaning surface has high cleanliness and can remove resin, paint, and oil on the surface , Stains, dirt, rust, coating, plating and oxide layer, and the industry is widely used, covering ships, auto repair, rubber molds, high-end machine tools, rails, and environmental protection. Laser cleaning technology refers to the use of high-energy laser beams to irradiate the surface of the workpiece to cause the dirt, rust or coating on the surface to evaporate or peel instantaneously, and effectively remove the adhesion or surface coating on the surface of the cleaning object at a high speed, so as to achieve a clean process. It is a new technology based on the interaction effect of laser and matter. Technical characteristics High cleanliness Can be accurately positioned and cleaned Non-contact cleaning to protect the surface of brittle materials Effectively remove micron-level pollution particles Environmental protection; no consumables required.
Laser cleaning machine laser head.
The cleaning head and fiber optic cable can be hidden inside the machine. The laser head with QBH connect of 1500-watt laser cleaning machine that easy to repain if the laser head had a problem. The protective lens is D48*3mm and working area lens according to exact request.


Control system
1500 watt pulse laser cleaning machine control system support 9 different scan shape.According to different clean material
that you can choose different scan shape, it come with different cleaning effect.
Power supply support 100 to 240 volts 50/60Hz AC
The machine can support USA, Canada, Europe, Sounth America, 110 volts to 240 volts single phase, 1500W air cooled laser cleaning machine net weight is 55kg, diameter is 640*360*720 mm
Key switch and 3 colors Warning light
When the machine is working that creen light is on, yellow color light hold on cleaning work, red light have problem when the machine is working.
Circuit Layout of 300W portable laser cleaning machine
The 300W portable laser cleaning machine one door inside circuit layout easy to troubleshoot if the machine have any error.

Chemical Cleaning vs Fiber Laser Cleaning
Good for cleaning surface contamination from a whole part, chemical cleaning is not easily applied to a selective area. Disposing of the chemicals is an increasingly difficult and costly challenge due to regulatory controls. Fiber lasers can be applied selectively. With no chemicals to degrade, quality is consistent, and there are no chemical solvent disposal issues. With no drying time, parts are available immediately.
Abrasive Blasting vs Fiber Laser Cleaning
While the cleaning is easy and effective, cost lies in the collection and disposal of the blast media, which often has to be separated from the paint debris, which has its own treatment issues. Fiber lasers eliminate the blast media problem. They provide a more controlled process that does not accidentally damage a surface through excessive removal, and can also be used on thin and composite materials that would be damaged by the particle impact. Fiber laser cleaning is always consistent,independent of operator effects, and can scale to suit the job size by selection of the laser power.
Clean Simple Display



Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile


Specification

item	value
Power	1500W
Laser Source Brand	MAX
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Hot Product 2024
Warranty of core components	2 years
Core Components	laser source
Place of Origin	China
Weight (KG)	55KG
Key Selling Points	Easy to Operate
Warranty	2 years
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Home Use
Local Service Location	None
Showroom Location	None
Laser Type	Fiber Laser
Applicable Material	Stainless steel, Carbon steel, Wood, Stone, Metal
Dimension(L*W*H)	640*360*720 mm
Product name	1500 W Max Air Cooled Light clean
Application	Metal Surface Cleaning
Function	Metal Rust Surface Laser Cleaning
Laser Power	1500 W
Keywords	Pulse laser
Cleaning Process	Non-contact Laser Cleaning
Laser source	MAX
Advantage	Easy Operate
Voltage	Mini AC 110V to 240V 50/60 Hz
Cooling system	Air cooled

FAQ
1. who are we?
We are based in Guangdong, China, start from 2021,sell to North America(30.00%),Northern Europe(24.00%),Eastern Asia(10.00%),Southern Europe(10.00%),South America(10.00%),Mid East(5.00%),South Asia(5.00%),Western Europe(5.00%),Africa(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
laser welding machine,laser cleaning machine,laser cutting machine,laser marking machine,co2 laser cutting machine
4. why should you buy from us not from other suppliers?
HS LASER manufactures product quality, service, after-sales and integrated services. Creating actual value for customers is the basic meaning of our existence, HS LASER is committed to the fields of laser welding machines, laser cleaning machines.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
