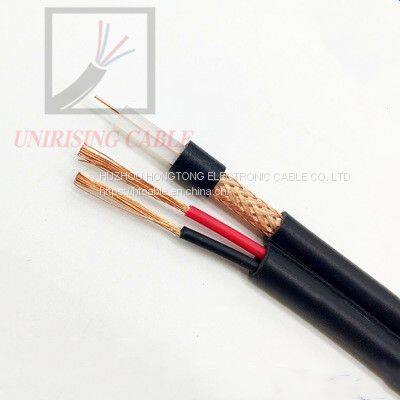

Professional Siamese 75ohm RG59 Power cable coaxial cable

Product Details

Product Description

Product Description
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: superlink
Model Number: 75ohm RG59 Power cable coaxial cable
Type: Coaxial
Number of Conductors: 3
color: black,white,others
TYPE: 75ohm RG59 Power cable coaxial cable
Logo: OEM
MOQ: 30KM
Packing: 305M/100m
Material: Copper CCS
Sample: Free
Usage: Indoor outdoor
OEM: Yes
Packaging & Delivery
Packaging Details:Delivery Detail:

packed in export standards carton

7-15 days

Specifications
Professional Siamese 75ohm RG59 Powe cable Coaxial cable
1.CE ROHS Certification.
2.OEM LOGO.
3.Factory Price.
3.Free sample
Professional Siamese 75ohm RG59 Power cable coaxial cable
1.CE ROHS Certification.
2.OEM LOGO.
3.Factory Price.
3.Free sample.
A.Description :
B.Attenuation «@68°F.(20°c)»

Frequency (MHz)	5	55	83	187	211	250	300	350	400	450	500
Maximum (dB/100Ft)	0.86	2.05	2.45	3.60	3.80	4.10	4.45	4.80	5.10	5.40	5.70
Maximum (dB/100m)	2.82	6.73	8.04	11.81	12.47	13.45	14.60	15.75	16.73	17.72	18.70

Frequency (MHz)	550	600	750	865	1000
Maximum (dB/100Ft)	5.95	6.20	6.97	7.52	8.12
Maximum (dB/100m)	19.52	20.34	22.87	24.67	26.64

C.Electrical Characteristics

Nominal Impendence	75ohms
Return Loss	≥20dB

FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables ,silicone rubber , teflon cable,wire harnessand other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Company Profile
Ningbo Xiayu Import and Export Co., Ltd
We,huzhou hongtong electronic cable Co.,Ltd is a Pioneer manufacturer with more than 20 years experience in the cable industr y in China. We can professionallymanufacture and supply Fire alarm cables,silicone rubber,teflon cable,wire harness, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires, Our products with the brand of "UNIRISINGCABLE" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current production capacity is about 500,000,000 meters per year.Our factory is located in zhejiang huzhou which is a beautiful port city.We have very advanced testing machines,including Agilentand HPanalyzer. We carefully test cables under ISO9001-2000 quality management before shipping to the customers.And our quality is always reliable.Most of our products are expor ted to Europe, America, Russia, and South-east Asia. Etc. What is more, our company always devotes to developing custom cables according to clients needs. We look for ward to working with you and getting mutual benefit in future.
