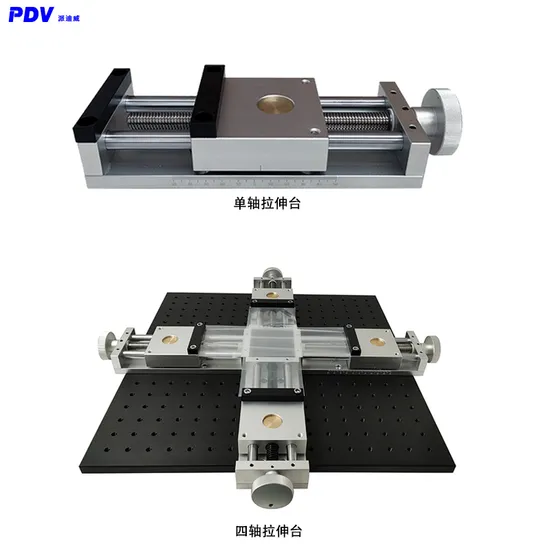

Manual Drawing Platform/X-Axis Displacement Platform/Linear Drawing Slide Platform

Product Description

Product Parameters:
Lead: 3MM
Lead screw diameter: 14MM
Light bar diameter: 12MM
Product parameter:

Model	PT-ST25	PT-ST50	PT-ST100	PT-ST200	PT-ST300	PT-ST400	PT-ST500
Platform size	65x65mm	65x65mm	80x80mm	80x80mm	80x80mm	80x80mm	80x80mm
Trip	25mm	50mm	100mm	200mm	300	400	500
Lead Screw Pitch	1.25mm	1.25mm	3mm	3mm	3mm	3mm	3mm
Load Bearing	15KG	20KG	20KG	20KG	20kg	20kg	20kg
Dead Weight	0.8kg	1kg	1.8kg	2.8kg	3kg	4kg	5kg
Material Surface Treatment	6061 Aluminum Alloy - Black Or Anodized

Product size:

---
