Functional Coating Dlc Nano Coating Machine for Mobile Phone Parts

Product Description

EQUIPMENT BRIEF

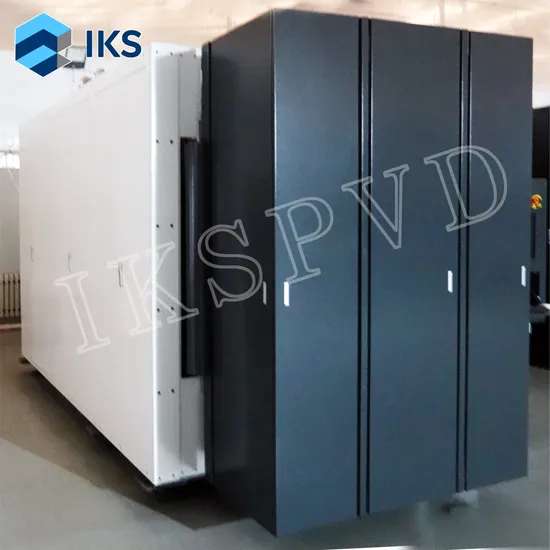

801-D DLC Machine is diamond-like coating machine independently developed by IKS, using unique ion gun+magnetron sputtering +plasma assisted deposition technology, DLC coating properties between diamond and graphite, The performances is stable quality and the base material bonding force is good, not only has high hardness, but also has excellent friction, good adhesion resistance, corrosion resistance and other excellent comprehensive performance. The equipment is widely used in engine parts, non-ferrous metal cutting, stamping mold and sliding seal parts, medical equipment and appliances,textile industry,etc.
EQUIPMENT PARAMETERS

00Chamber Size 0	Single door Octagonal Φ1200×H1300mm	00Effective Space 0	Φ800×H800mm
00Applied Technology	CB+SPUTTER+PACVD	00Quantity of Target Material	2 Set of rectangular planar target+2 ion source
00Standard Coating	DLC	00Other Composite Coating	TIN.CrN, WC, etc
00Production Cycle	5-7hours/furnace	00Overall Dimension	L4200×W2500×H2100mm
00Loading Capacity 0	16Pcs x Φ120mm	00Standard Load 0	350KG
00Rang of Application	0 00Suitable for mold, mold accessories, textile industry, 3C products, parts with a coefficient of friction and other products.

APPLICATION
WORKSHOP
IKS PVD Company is committed to providing vacuum coating solutions, vacuum coating machines, various vacuum componets and one-stop vacuum coating services. At the same time, the company also has a strong technical team to provide customers with vacuum equipment core technical support and excellent after-sales service. Please contact us for more details on coating machine configurations and quotations, Thank you!

---
