2018 New Pattern Lever Block & Manual Chain Hoist

Product Description

2018 New Pattern Lever Block & Manual Chain Hoist

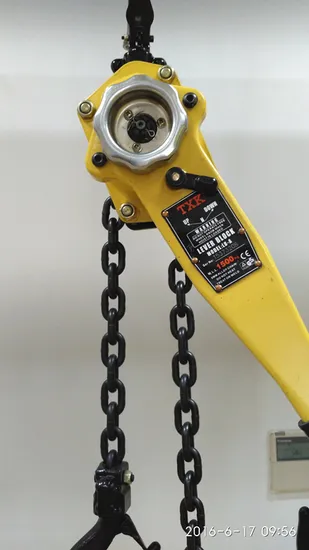

Description of Lever Block
1.Superior Grade 100 load chain-wafios link, DIN standard.
2.Forged and Heat treated load hooks with batch traceability and stretch indicators.
3.360 handle rotation with stroke to ratchet indicators.
4.Double pawl brake system.
5.Asbestos free brake linings
6.Forged Safety latch
7.Sealed Roller Bearings
8.100% Load Tested to 1.5*WLL
9.MBL of 400% of WLL
10.2000 Cycle Batch Test
Lever Block Technical Parameters

Model		LB-A
Capacity(ton)		0.75	1	1.5	2	3	6
Standard lifting height(m)		1.5	1.5	1.5	1.5	1.5	1.5
Running Test Load(ton)		1.13	1.5	2.25	3	4.5	9
Pulling Effort(kg)		14	16	22	26	32	34
Load Chain Dia. (mm)	Columns	1	1	1	1	1	2
	Dia+Pitch	6× 18	6× 18	8× 24	8× 24	10× 28	10× 28
Dimension(mm)	A	121	148	172	196	210	255
	B	114	132	151	173	175	205
	C	24	25	30	33	35	40
	D	31	31.5	37.5	42.5	45	50
Net Weight(kg)		6.2	6.5	10.8	11.2	18.5	32.5

Company Profile
TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chain hoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than 15 years experience and hard work.Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.
We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001: 2008 and TUV certified manufacturer, our products are CE, GS, SGS certified, serving all spheres of industry in the world.
Our brand TXK is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products.
Exhibitions
Certificates
7 reasons to trust TXK
Longest history and longevity - TXK is one of the oldest established electric chain hoist manufacturers in China,with almost 20 years. Largest factory and production capability - TXK factory is the biggest factory covering more than 56,000 square meters territory. Widest products and servuce providing - TXK can provide widest products items include electric&manual lifting equipments. Richest experience in world business - TXK has more than 10 years experience on international trade business. Fastest lead times - TXK factory is equipped with most efficient producing line which handled by skillful workers. Fullest certifications - TXK factory and products are well certified by CE,GS,TUV,ISO,SGS,etc. Highest reputation - TXK products are well sold in more than 50 countries

---
