Basic Info.
Structure

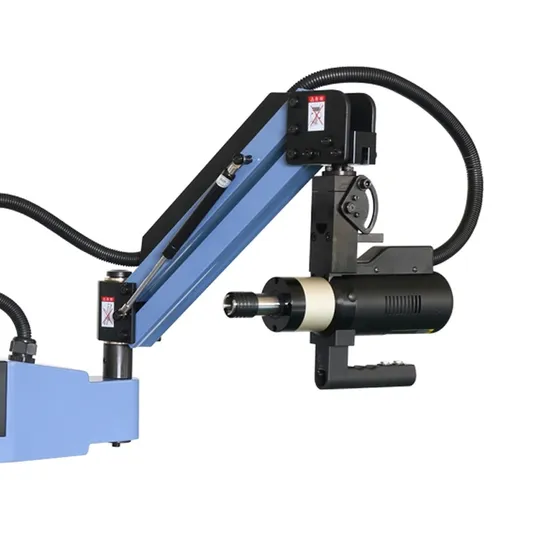

Tapping Machine
Layout
Vertical and Horizontal
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, ISO 9001
The Spindle Ratded Speed
0-312r/Min
Bearing Scope of Thread
M3-M16
Rotation Speed
0-312r/Min
Working Area
Horizontal: 1100mm Vertical: 400mm
Standard Accessories
Tapping Arm, Servo Motor, Reducer, Tap Holder
Transport Package
Wooden Package
Production Capacity
300PCS/Month
Product Description
Product Introduction
| BG-M16 | BG-M24 | BG-M30 | BG-M36 | BG-M48 |
| Tapping Capacity | Steel:M3-M16 | Steel:M4-M20 | Steel:M3-M30 | Steel:M6-M33 | Steel:M12-M48 |
| Aluminum:M3-M16 | Aluminum:M4-M24 | Aluminum:M6-M33 | Aluminum:M6-M36 | Aluminum:M12-M56 |
| Stainless steel:M3-M16 | Stainless steel:M4-M20 | Stainless steel:M6-M30 | Stainless steel:M6-M33 | Stainless steel:M12-M48 |
| Rotation Speed | 0-312r/min(Stepless Speed Regulation) | 550r/min(Stepless Speed Regulation) | 200r/min(Stepless Speed Regulation) | 156r/min(Stepless Speed Regulation) | 50-200r/min(Stepless Speed Regulation) |
| Working Area | Horizontal:1100mm | Horizontal:1200mm | Horizontal:1200mm | Horizontal:1300mm | Horizontal:1300mm |
| Vertical:400mm adiustable | Vertical:400mm adiustable | Vertical:400mm adiustable | Vertical:400mm adiustable | Vertical:400mm adiustable |
FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%),Western Europe(10.00%),North America(10.00%),Northern Europe(5.00%),Central America(5.00%),South America(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),Mid East(2.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Fastener Insertion Machine,Self clinching Press,Riveting Machine,Spot Welder,Clinching Fasteners,Tapping Machine4. why should you buy from us not from other suppliers?RSM Machinery CO.,ltd includes fastener insertion machine, self clinching machine, hydraulic steel/ironworker, turret grinding machine ,self clinching system , production line as well as other different kinds of machine tooling and accessories.5. what services can we provide?Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,HKD,CNY;Accepted Payment Type: T/T,L/C,Cash;Language Spoken:English,Chinese
>>
