Product Description
Product Description

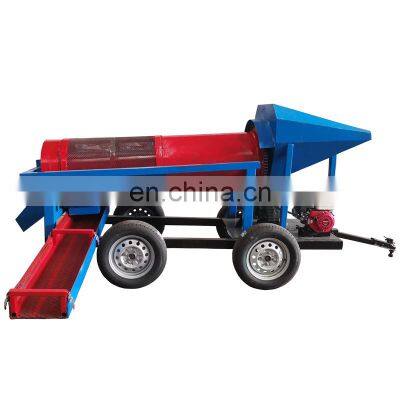

Mining equipment movable gold drum extracting trommel mini placer gold washing trommel drumProduct DescriptionPlacer gold trommel is a mini gold trommel screen. The minin gold screen equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein. Placer gold trommel sieve can be easily operated, It can be movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on Preparations before commissioning1. After the components of the trommel screen are installed and passed the inspection, the trial operation can be carried out. Before trial operation, check in detail that the components are installed correctly as shown in the drawings, the fasteners are firm, and whether there are obstacles around the screen body that hinder the operation of the trommel;2. Put the rectangular inspection door in the open position, and rotate the screening drum by manual turning to observe whether the comb-type cleaning mechanism has jamming or friction. If there is, it can be adjusted by adjusting the bolt;3. Check that each bearing seat and gearbox should be well lubricated, and the gearbox oil level should be appropriate;4. The power connector should be firm and reliable, well insulated, and grounded correctly. Working principle Firstly, as we can see, the gasoline engine drives the reducer through a V-shaped triangular belt, which drives the chain to drive the roller screen. Second, connect the pipe to the spray nozzle, then open the pump to check the operation of the machine and equipment. Then, check the operation of the gasoline engine, manually pull the gasoline engine, running for a few minutes, to see whether it is normal. Thirdly, start feeding, the material through the grizzly slowly into the drum screen, so that the big material is screened out, small material into the drum screen. Start the spray nozzle, pump will smoke coming from a distance, the water to spray the mouth, and then at a certain pressure, the water to the spray pipe, water wash away the mud, the supplies of greater than 5 mm material emerged from behind the barrel body, less than 5 mm material after drum sieve screening, slowly into the sneak gold, gold above the grass with a lot of gold. Technical ParametersSPECIFICATIONS OF PORTABLE MOBILE GOLD WASH TROMMELModelGTS-500x1900Drum Diameter 500mmDrum Length 1900 mmGearbox WPS-100-20Towing Hook IncludeTires Size 165/70RBRubber Tires Quantity 4 piecesSpray Pipe Diameter 42mmSpray Pipe Material Galvanized seamless pipeCapacity 5-10 tons/hour HONDA Gasoline Engine Main Power:5.5HP Start method: Manual pull Gasoline load: 0.58LGold Chute 350*1500mm Angle adjustable 2-8° Grizzly Steel bard diameter 20mm Bar spacing 50mm Input hopper: 0.5m³ Product DetailsPackaging & ShippingCompany InformationCustomerFAQQ1: How long is the delivery time A: Normally within 7-10days Q2: What is the driving force A: Japan HTC Gasoline Engine Q3: How long is the warranty period A:One year Q4: Do you have a certificate of origin, EU certification, etc.A: yes, of course Q5: How many wheels does it have? A:There are two and four rounds, according to customer requirements. Related ProductsGold Trommel ScreenCentrifugal concentratorShaking Table
>>
